Side Mirror Motor
WARNING: This page is about a different car, the 1997 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

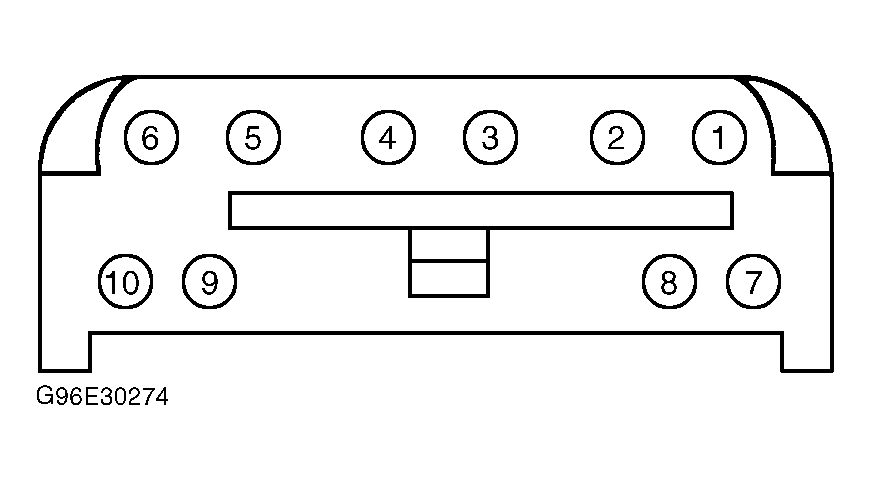

Remove door trim panel. Disconnect mirror motor connector from mirror switch harness. Using 2 jumper wires, connect battery voltage and chassis ground to specified wire terminals. See Fig 1 . See SIDE MIRROR MOTOR TEST TABLE . Observe mirror for proper movement. If mirror motor fails any portion of test, replace mirror assembly.
SIDE MIRROR MOTOR TEST
| Mirror Movement | Battery Voltage | Ground | |
|---|---|---|---|
| Left Mirror | |||
| Up | DK BLU | YEL/LT BLU | |
| Down | YEL/LT BLU | DK BLU | |
| Left | RED | YEL/RED | |
| Right | YEL/RED | RED | |
| Right Mirror | |||
| Up | PPL | WHT/PPL | |
| Down | WHT/PPL | PPL | |
| Left | DK GRN | WHT/LT GRN | |
| Right | WHT/LT GRN | DK GRN | |
