Side Mirror Switch
WARNING: This page is about a different car, the 1997 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

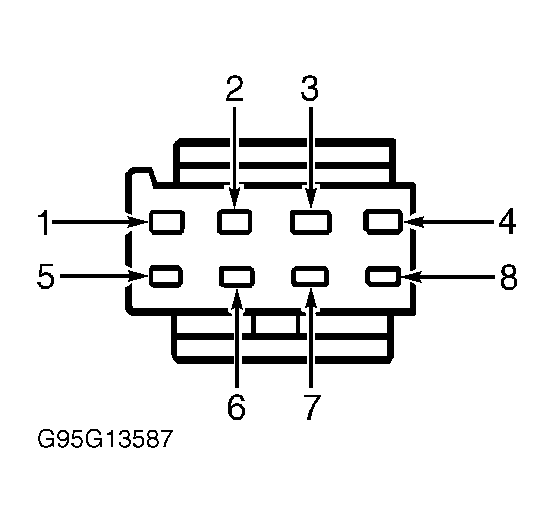

Using an ohmmeter, check for continuity between indicated switch connector terminals when switch is activated as specified. See the POWER MIRROR SWITCH CONTINUITY TEST TABLE . See Fig 1 . Replace switch if it does not test as specified.
POWER MIRROR SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Pins No. | |
|---|---|---|
| Left Mirror | ||
| Up | 1 & 3 | |
| Down | 1 & 6 | |
| Left | 1 & 4 | |
| Right | 1 & 6 | |
| Right Mirror | ||
| Up | 1 & 7 | |
| Down | 1 & 6 | |
| Left | 1 & 8 | |
| Right | 1 & 6 | |
