Fan Control (FC) Relays: Notes

NOTE: Use the following illustrations for cooling fan circuit identification. See Fig 1 . For additional identification of components, wire colors or terminals, see appropriate wiring diagram in WIRING DIAGRAM  .

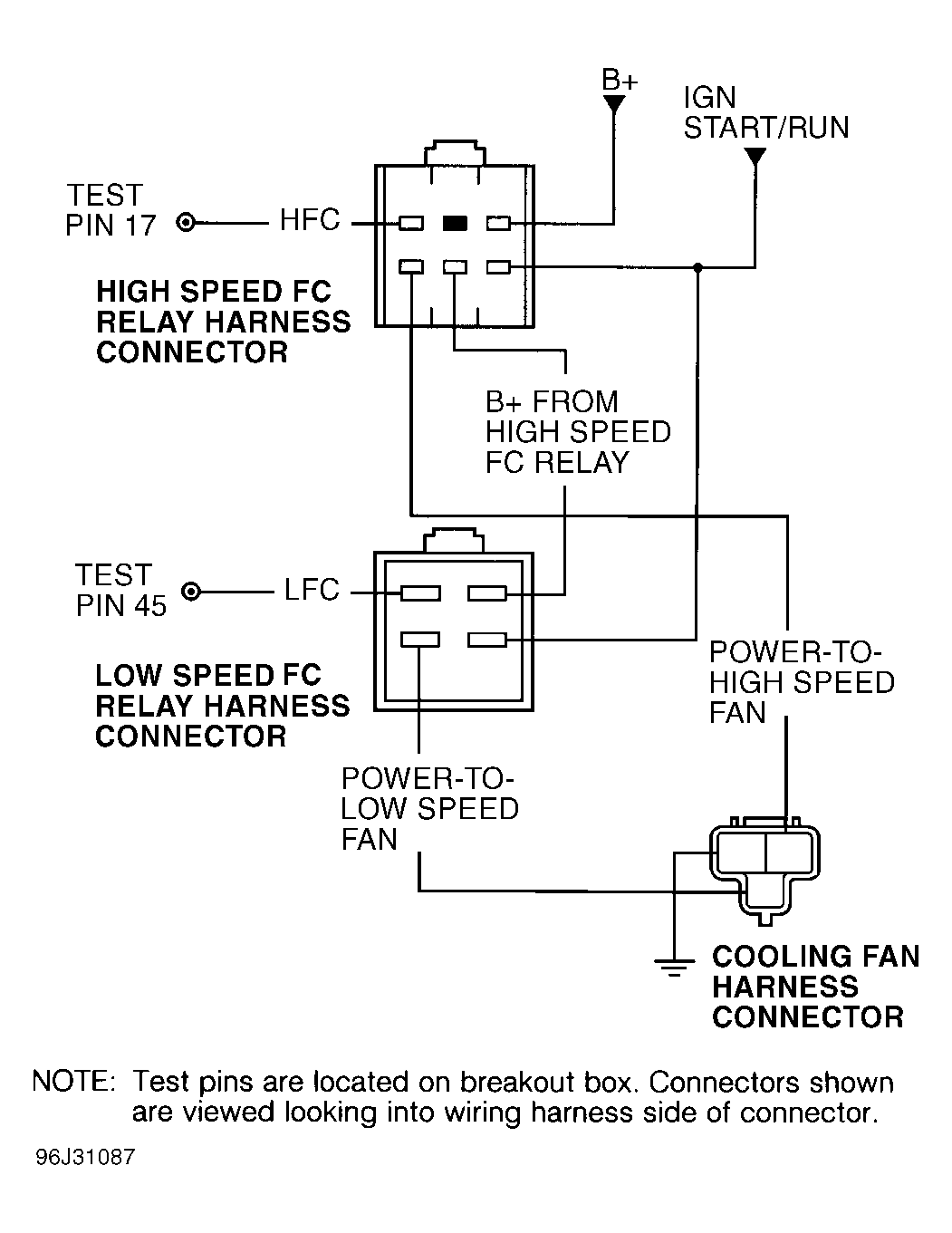

Fig 1: Identifying LFC/HFC Circuits (Probe 2.0L)
G96J31087Courtesy of FORD MOTOR CO.
