Section 46 (Wiper/Washer Systems): Adjustments
WARNING: This page is about a different car, the 1997 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

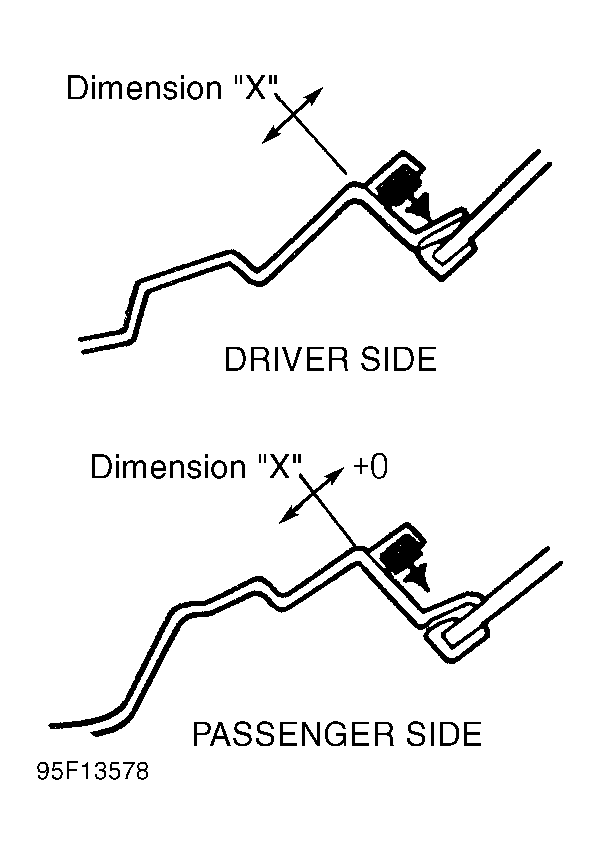

Remove wiper arms from pivot shafts. Turn on wipers. Allow motor to cycle pivot shafts 2 or 3 times. Turn off wipers. Reinstall wiper arms in proper positions. Dimension "X" should be 0 to - 0.8" (0 to - 20 mm). See Fig 1 .
