Alarm Module, (Vehicle Antitheft)

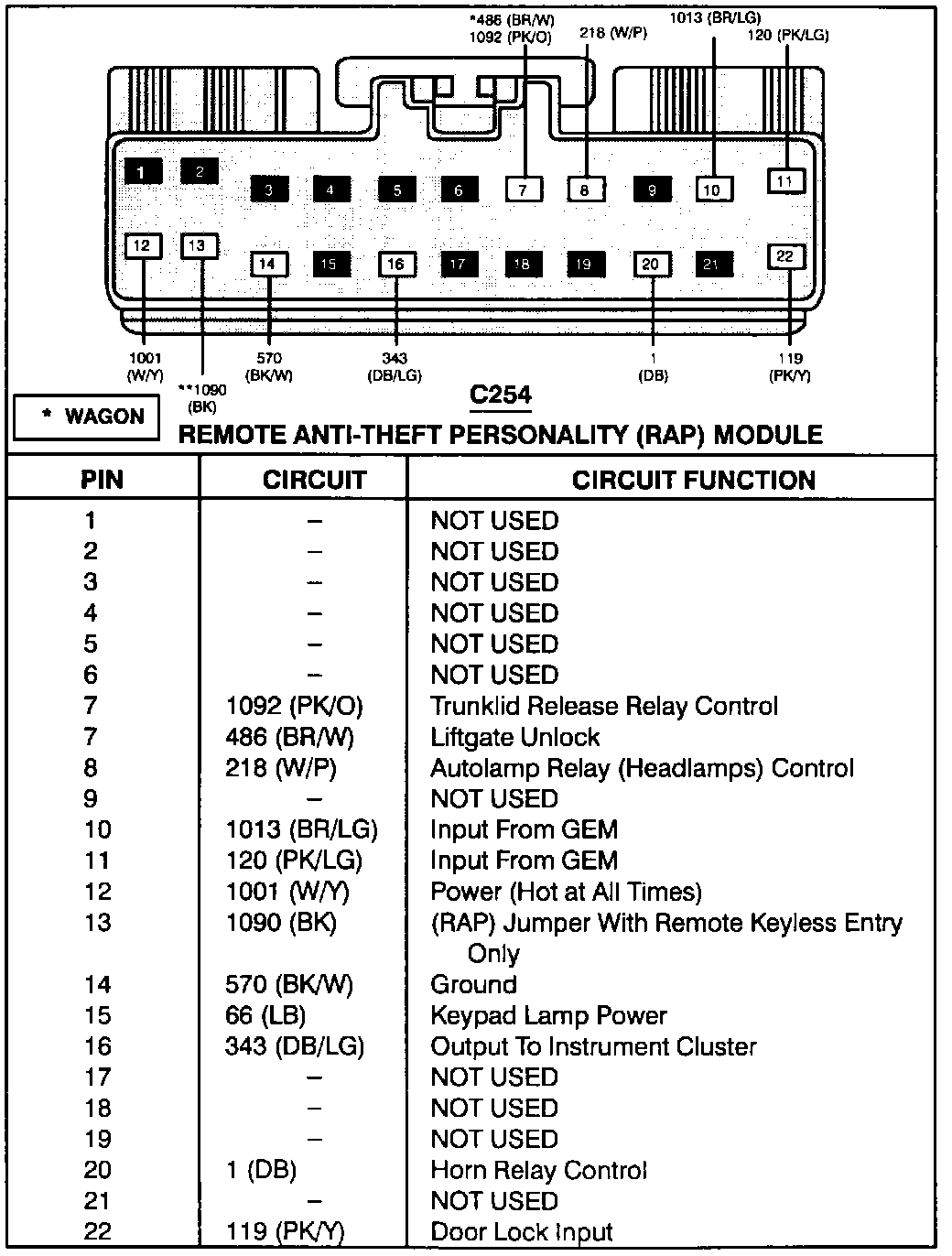

Remote Anti-Theft Personality Module (C254):

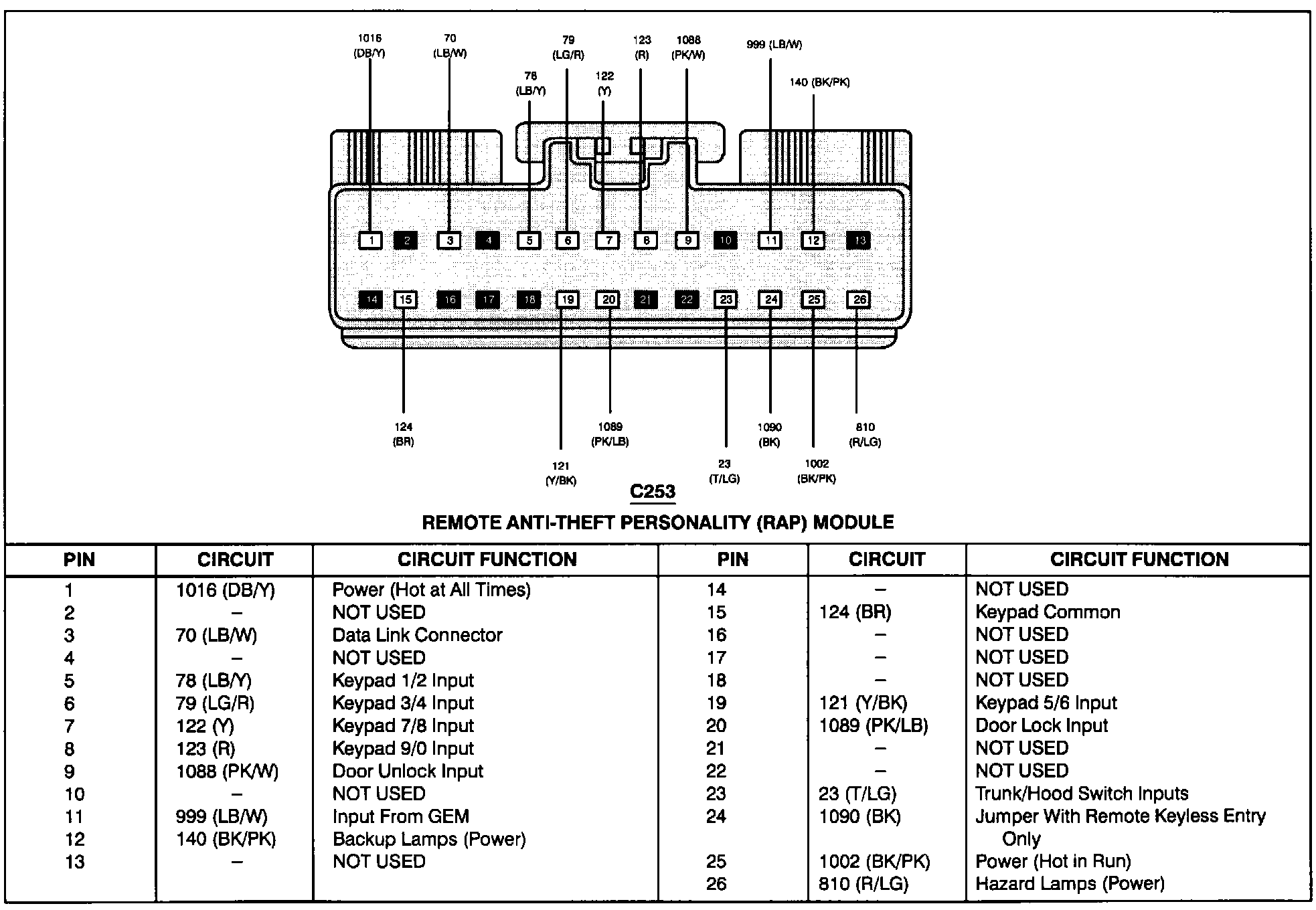

Remote Anti-Theft Personality Module (C253):
