Fuel Tank Pressure Sensor: Service and Repair

REMOVAL
1. Remove fuel tank.
2. Disconnect electrical connector from fuel tank pressure/vacuum transducer.

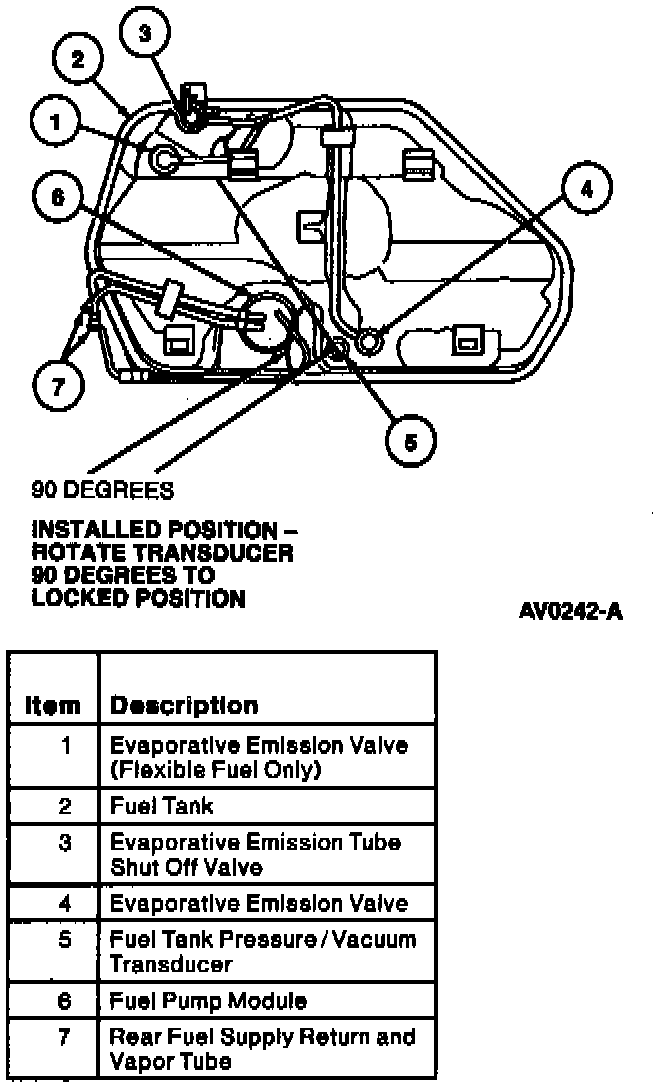

3. Rotate fuel tank pressure/vacuum transducer 90 degrees counterclockwise to unlock from fuel tank.
4. Remove fuel tank pressure/vacuum transducer from fuel tank.

INSTALLATION
Follow removal procedure in reverse order.
