Ignition System: Testing and Inspection

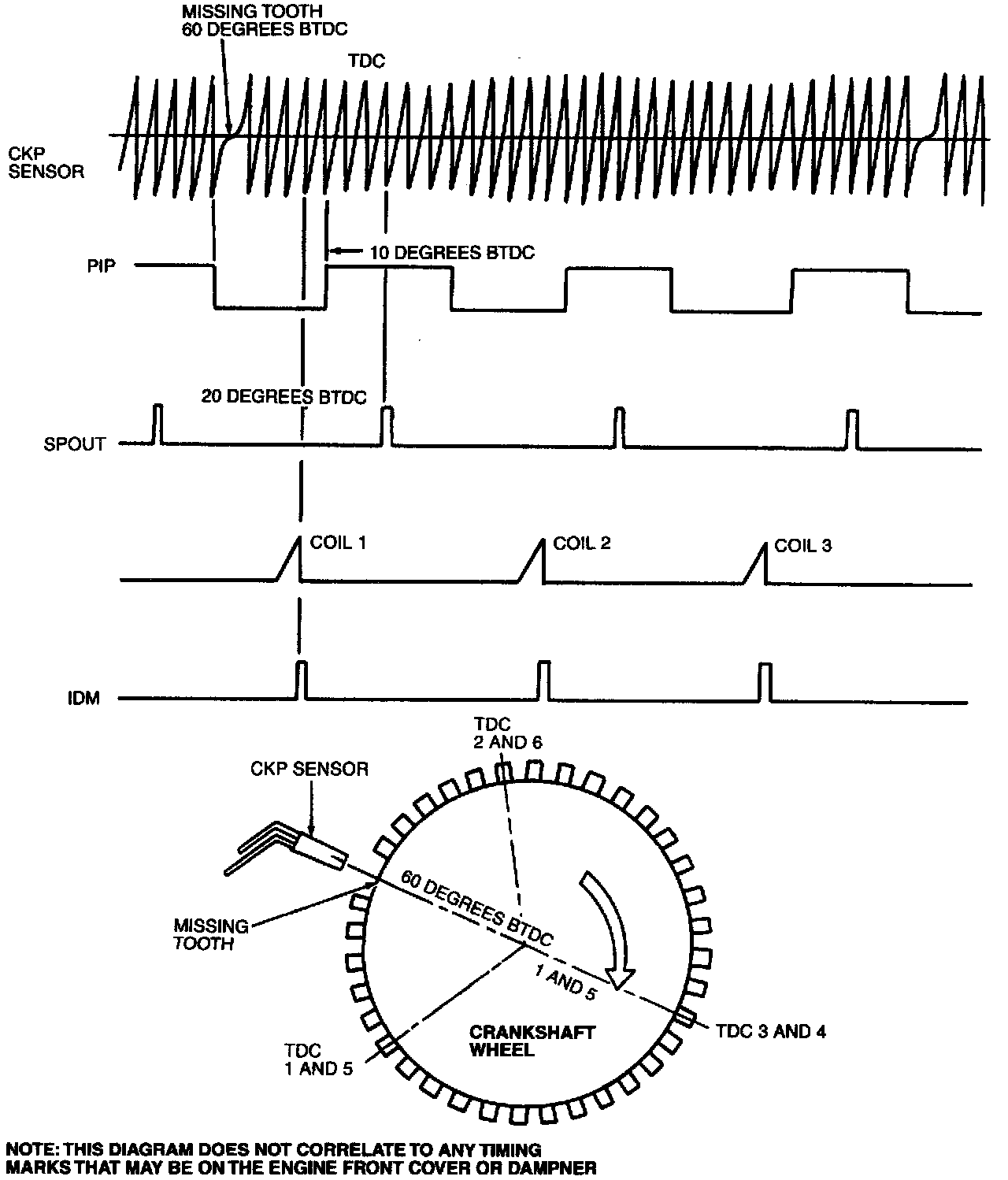

Six Cylinder Integrated Electronic (EI) Ignition Waveforms. Four, eight, and ten cylinder are similar.:
