Keyless Entry Module: Service and Repair

REMOVAL
1. Disconnect battery ground cable.
2. Remove LH luggage compartment trim panel.

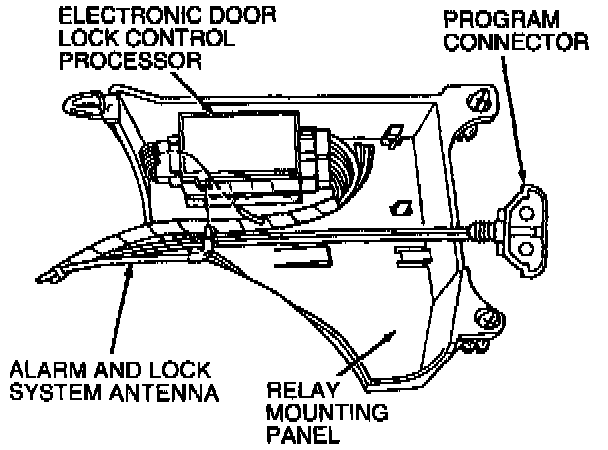

3. Remove relay mounting panel.
4. Slide electronic door lock control processor out of relay mounting panel.
5. Disconnect the electrical and alarm and lock system antenna connectors.

INSTALLATION
1. Follow removal procedure in reverse order.
