Single Switch

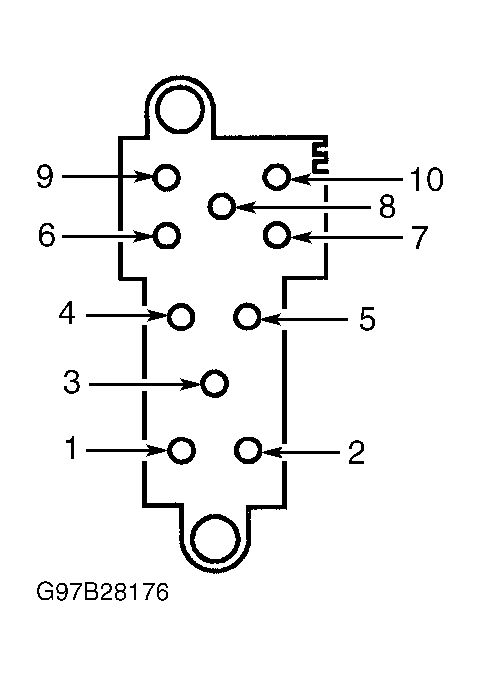

Remove single switch. See WINDOW SWITCH under REMOVAL & INSTALLATION. Check for continuity between terminals as specified while operating switch. See SINGLE SWITCH TESTING table. See Fig 1 . If continuity does not exist, replace switch.
SINGLE SWITCH TESTING
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Neutral | 1 & 4; 2 & 5 |
| Up | 3 & 5; 1 & 4 |
| Down | 1 & 3; 2 & 5 |
