CMP Synchronizer: Installation

WARNING: This page is about a different variant/trim than selected.

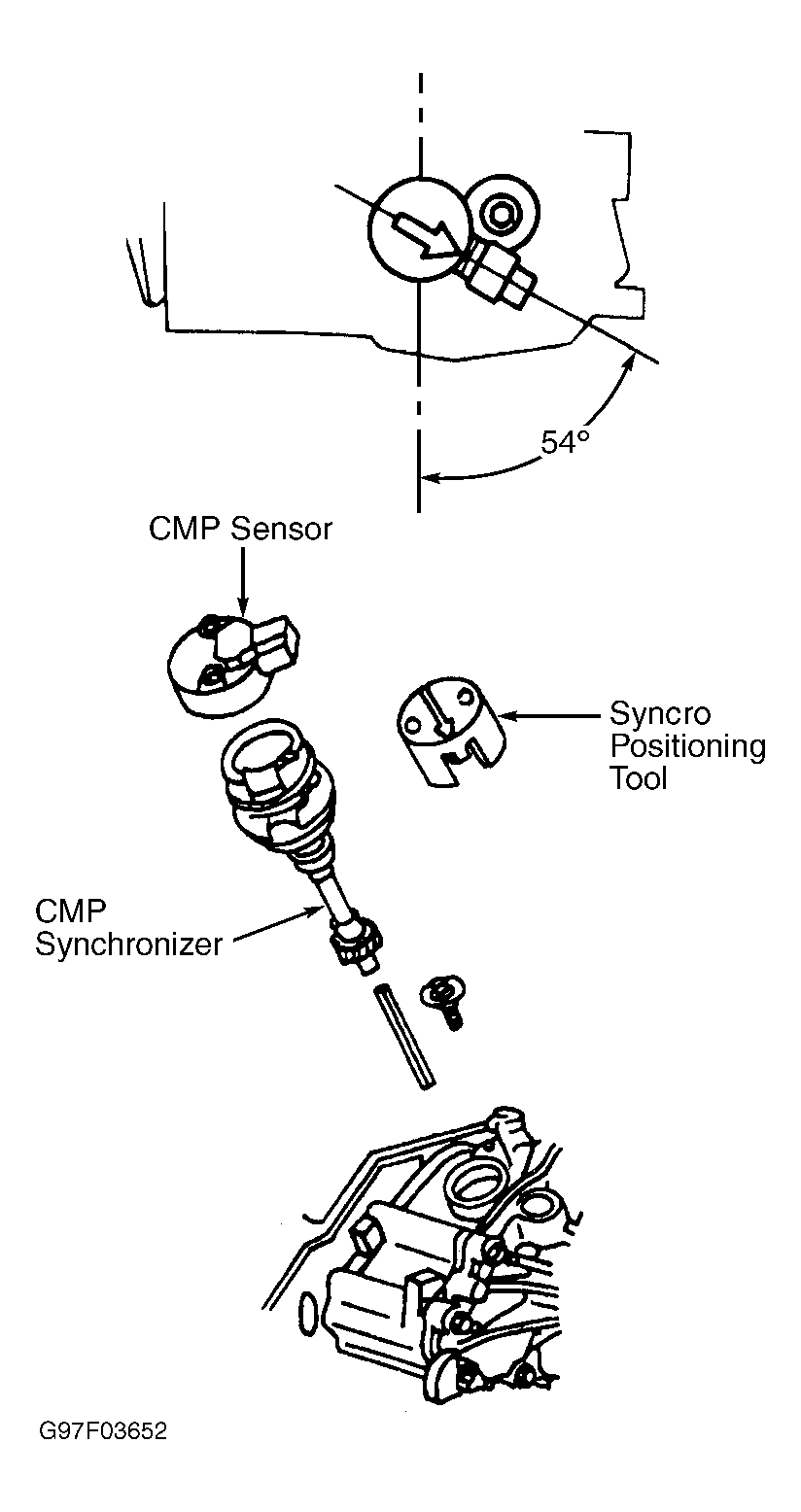

  1. Install the Syncro Positioning Tool (T96T-12200-A) on the camshaft synchronizer by rotating the tool until it engages the notch in the camshaft synchronizer housing. See Figure. During installation, the arrow on the syncro positioning tool will rotate clockwise as the gears engage. Install the camshaft synchronizer housing assembly so the arrow on the synchronizer alignment tool is 54 degrees from the centerline of the engine.
  2. On "E" series, position the water outlet tube and connect the coolant hose. On all models, install the camshaft synchronizer retaining bolt. Reuse the EGR valve adapter gasket and install the EGR valve and adapter assembly. Install the EGR valve tube upper fitting.
  3. Connect the EGR valve vacuum hose. Install the CMP sensor. See CAMSHAFT POSITION SENSOR .
