Distributor Overhaul

WARNING: This page is about a different variant/trim than selected.
  1. Using an Allen wrench, hold distributor shaft from turning while removing armature bolts. DO NOT clamp shaft. Remove screws and armature. Place reference marks on drive gear, thrust collar and shaft. Using a felt-tip pen, mark shaft and gear for installation reference. Remove and discard roll pin from gear.
  2. Place distributor in Axle Bearing Remover (T75L-1165-B). Press off gear using arbor press and Pinion Bearing Cone Remover (D79L-4621-A). Remove shaft. Using emery cloth, remove burrs from distributor shaft. Remove shaft from distributor assembly. See Fig 1.
  3. Remove thrust washer from distributor (if equipped), and save for installation. Remove screw and octane rod. Remove stator assembly screws and stator.
  4. Inspect base bushing, "O" ring and distributor housing for wear, cracks or other damage. If necessary, replace "O" ring. If distributor housing or bushings are worn, replace entire distributor assembly.

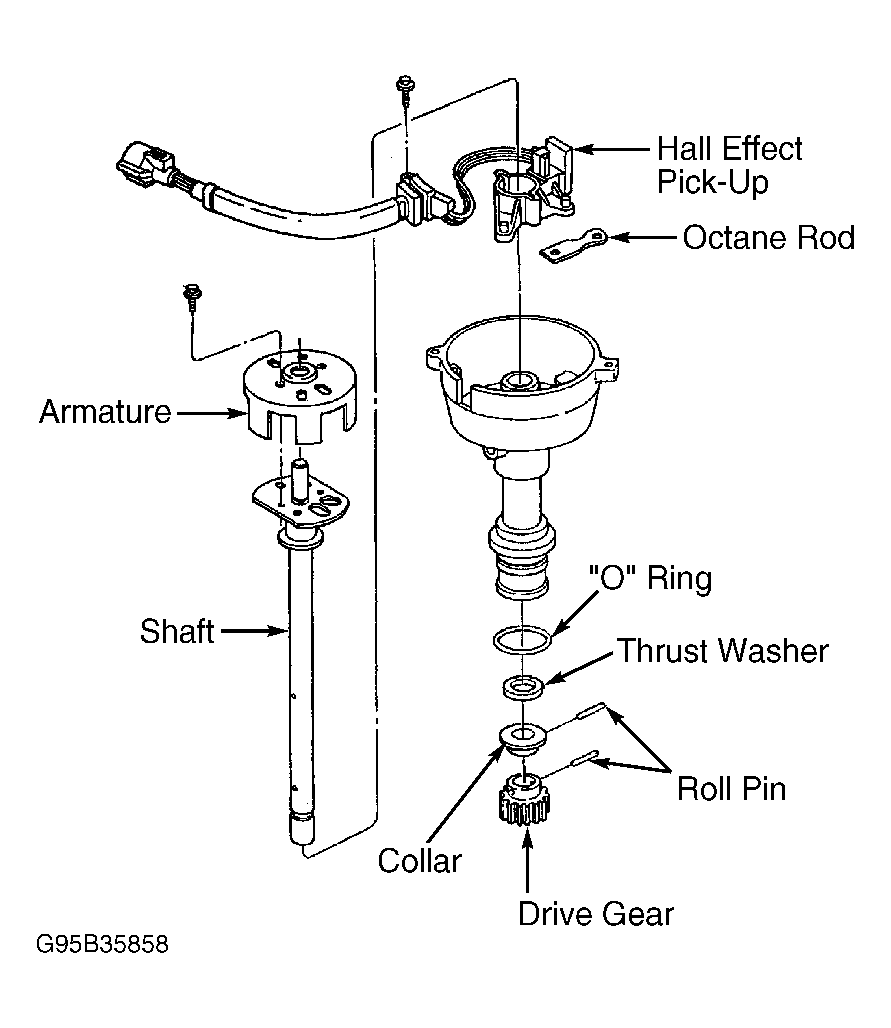

Fig 1: Exploded View Of Distributor
G95B35858Courtesy of FORD MOTOR CO.
