Sedan

REMOVAL






1. Disconnect the battery ground cable.

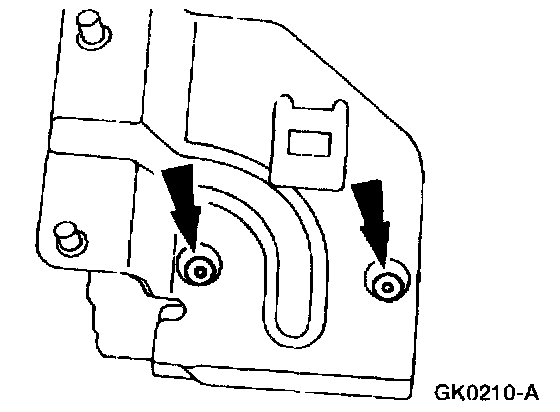

2. Remove the RH quarter trim panel.

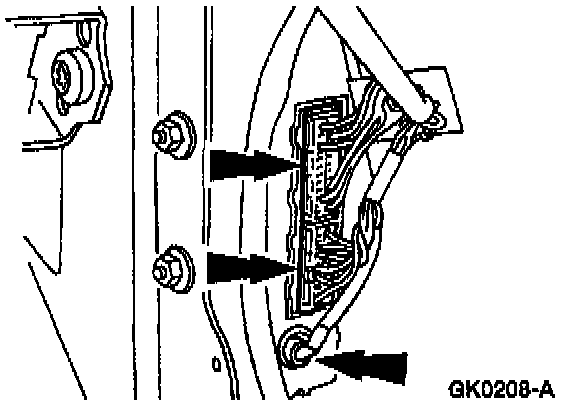

3. Disconnect the two electrical connectors and the Remote Anti-Theft Personality (RAP) module antenna.

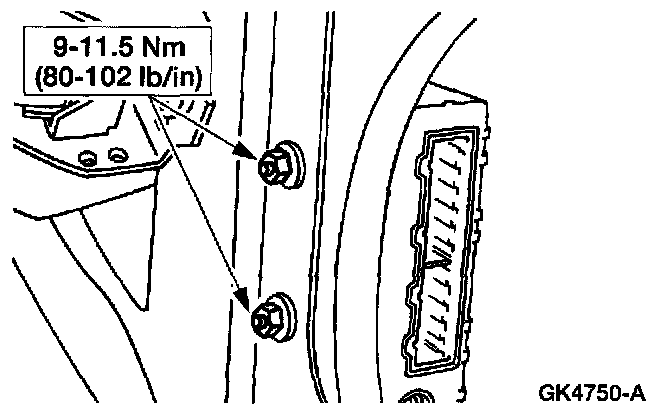

4. Remove the two RAP module nuts and the RAP module.






5. Lift the two tabs and remove the RAP module bracket.

INSTALLATION











1. To install, reverse the removal procedure.
