With Manual Transaxle

REMOVAL

CAUTION: Electronic modules are sensitive to static electrical charges. If the modules are exposed to these charges, damage may result.

1. Disconnect the battery ground cable.

2. Remove the parking brake and shift consoles.

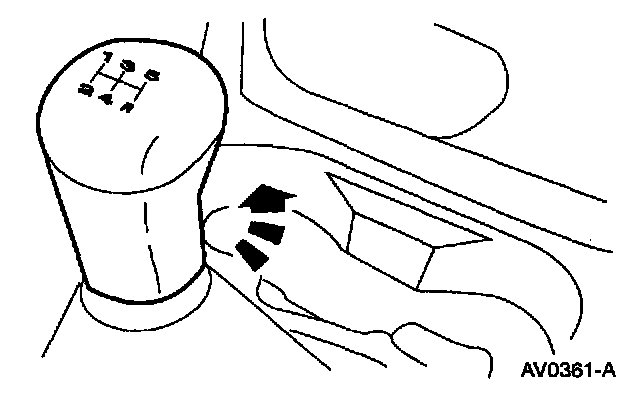

3. Remove the gearshift knob and boot.

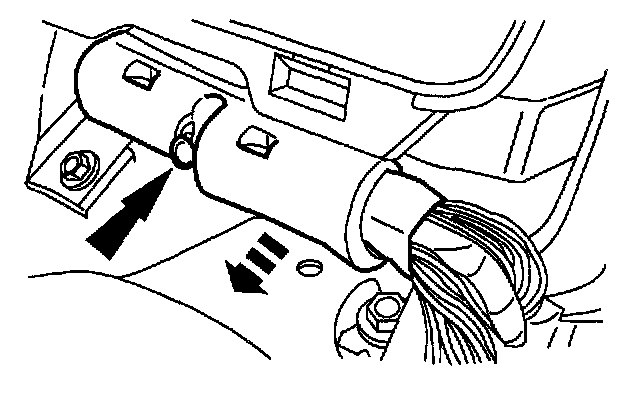

4. Loosen the bolt and disconnect the electrical connector.

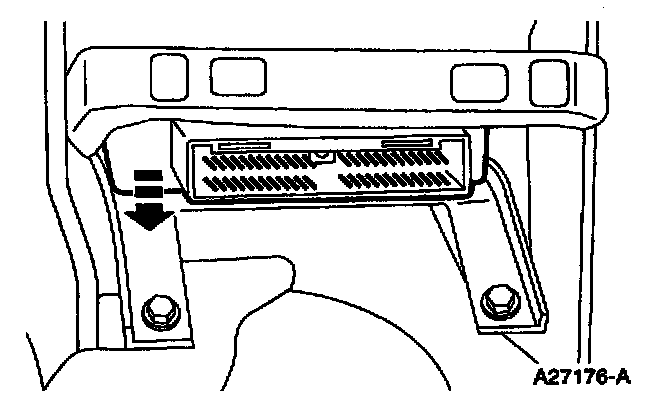

5. Slide the Powertrain Control Module (PCM) straight out.







INSTALLATION

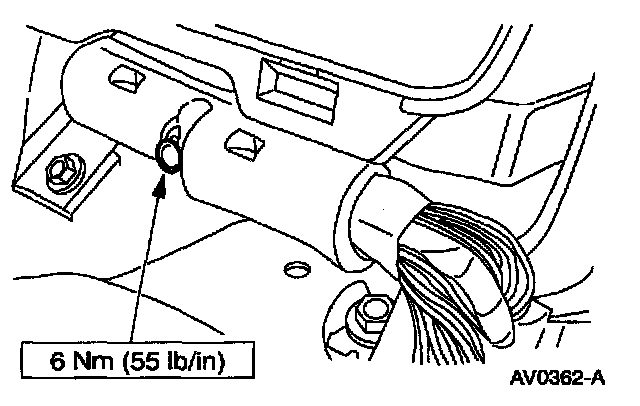

1. Follow the removal procedure in reverse order.
