Constant Control Relay Module (CCRM)

NOTE: CCRM is located on bracket, behind engine coolant reservoir. See Fig 1, Fig 2 or Fig 3 .

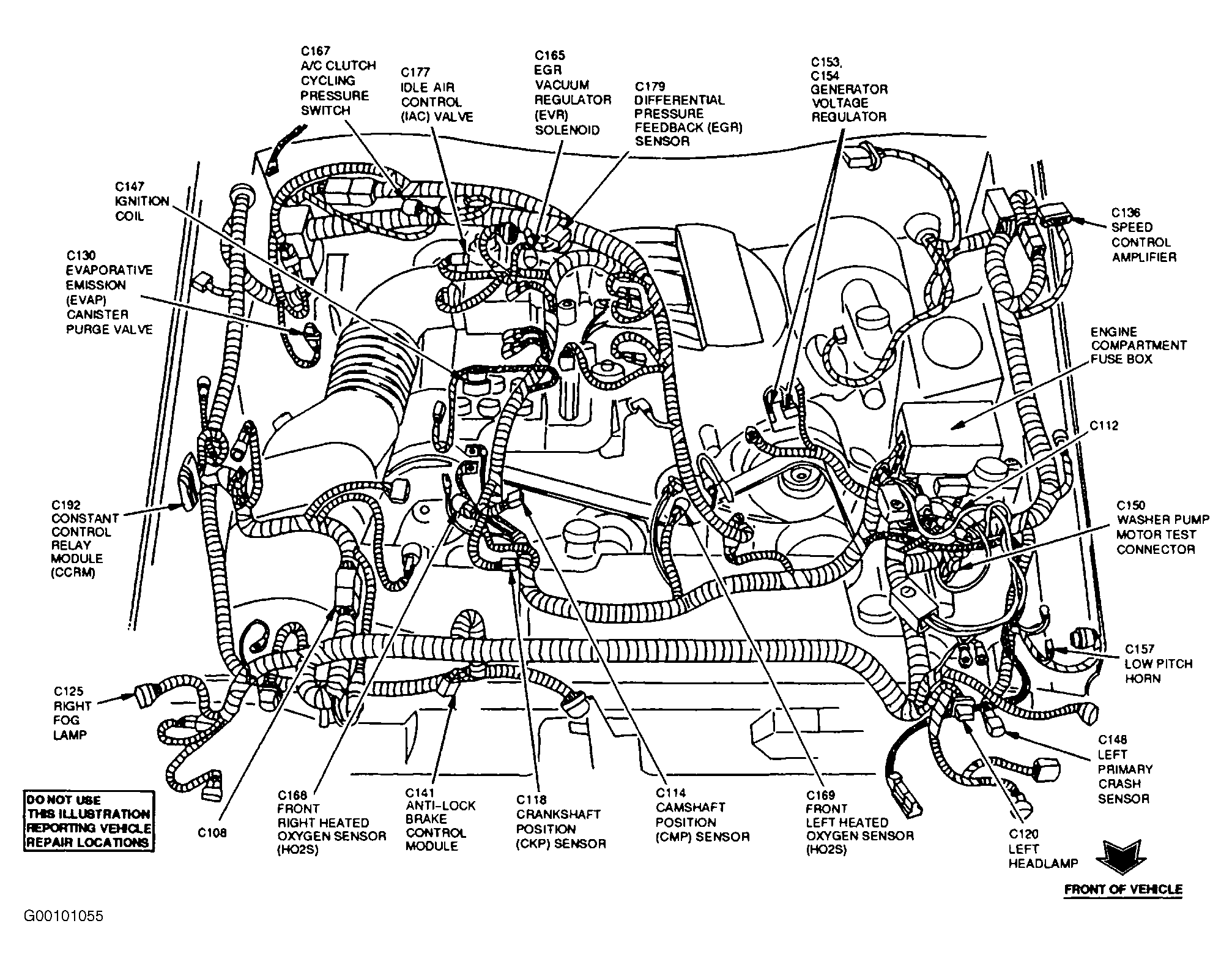

Fig 1: Locating Engine Compartment Electrical Components (3.8L)

Courtesy of FORD MOTOR CO.

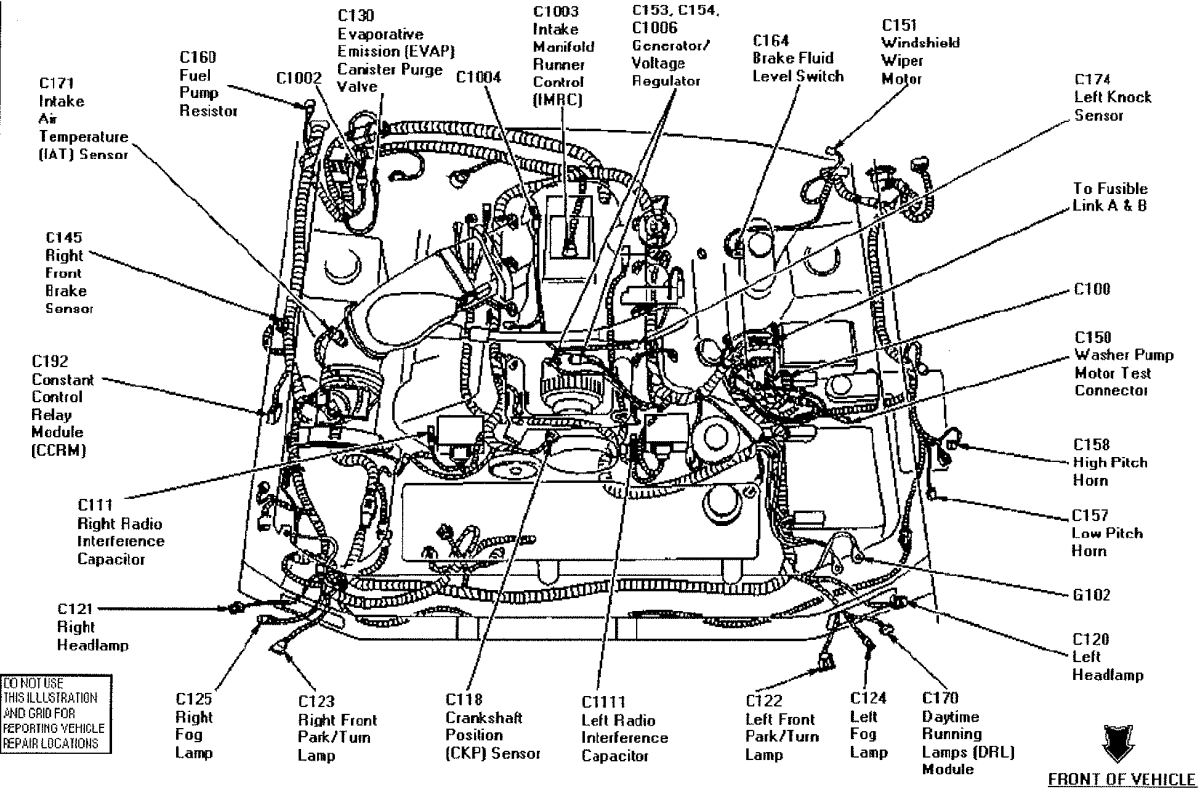

Fig 2: Locating Engine Compartment Electrical Components (4.6L - 2V)

Courtesy of FORD MOTOR CO.

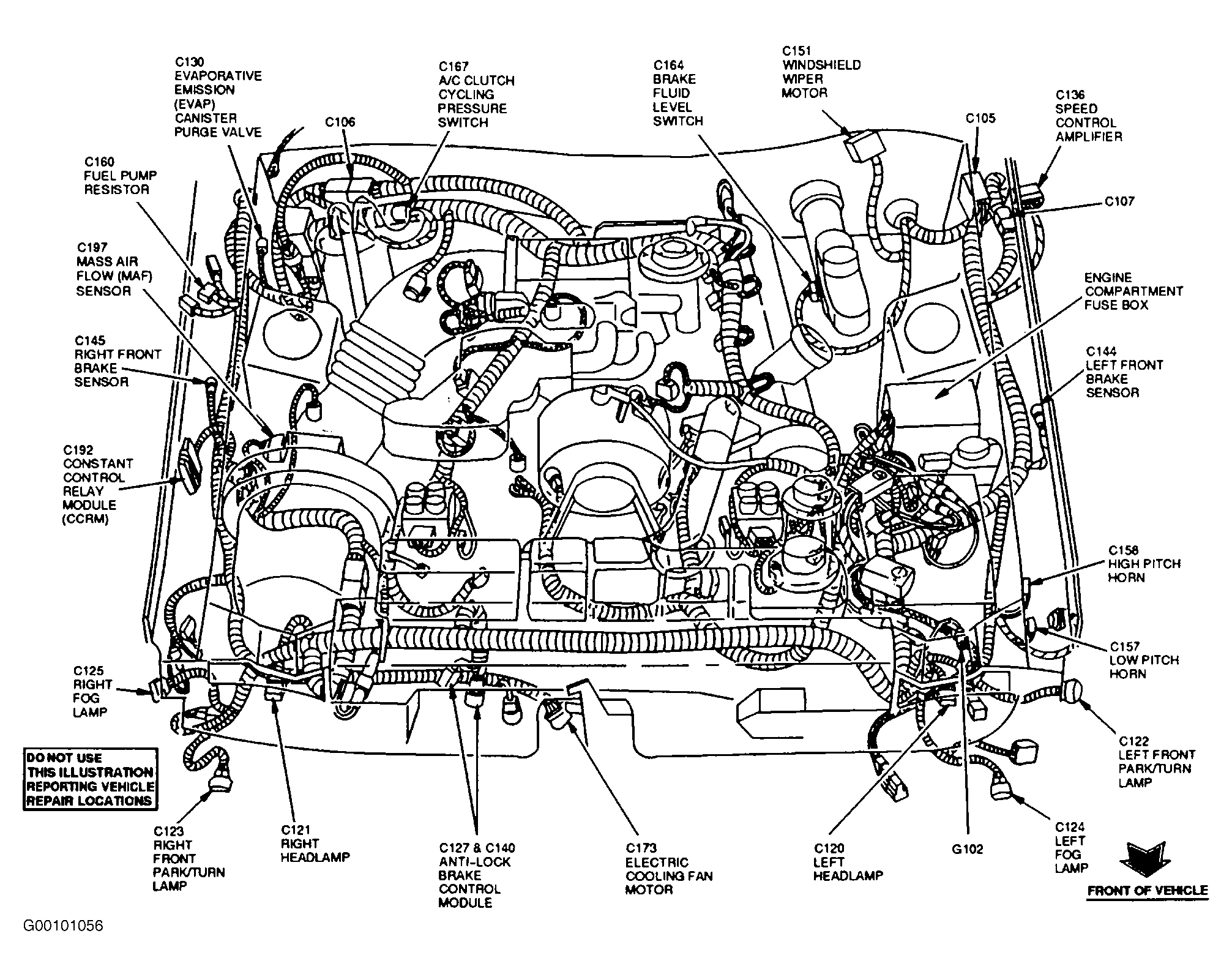

Fig 3: Locating Engine Compartment Electrical Components (4.6L - 4V)

Courtesy of FORD MOTOR CO.
