Intake Manifold

UPPER





Tighten in sequence shown in three steps:
Step 1: 10 Nm (7.5 ft. lbs.)
Step 1: 20 Nm (15 ft. lbs.)
Step 1: 32 Nm (23 ft. lbs.)

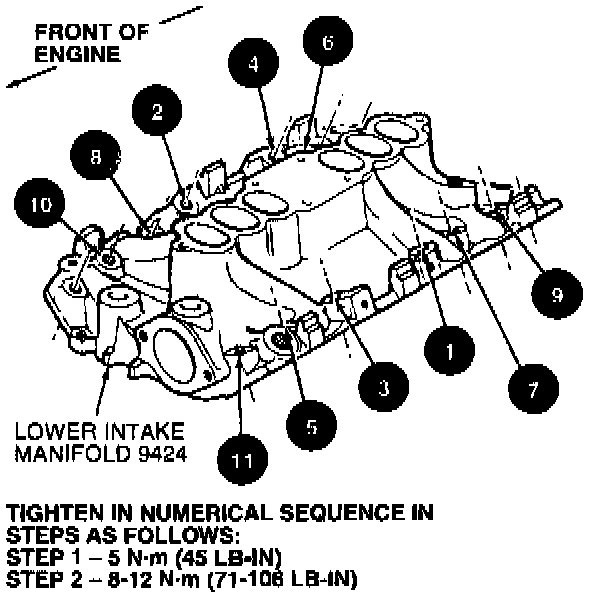

LOWER





Step 1: 5 Nm (45 inch lbs.)
Step 2: 8-12 Nm (71-106 inch lbs.)
