Wiper Control Module: Service and Repair

REMOVAL and INSTALLATION

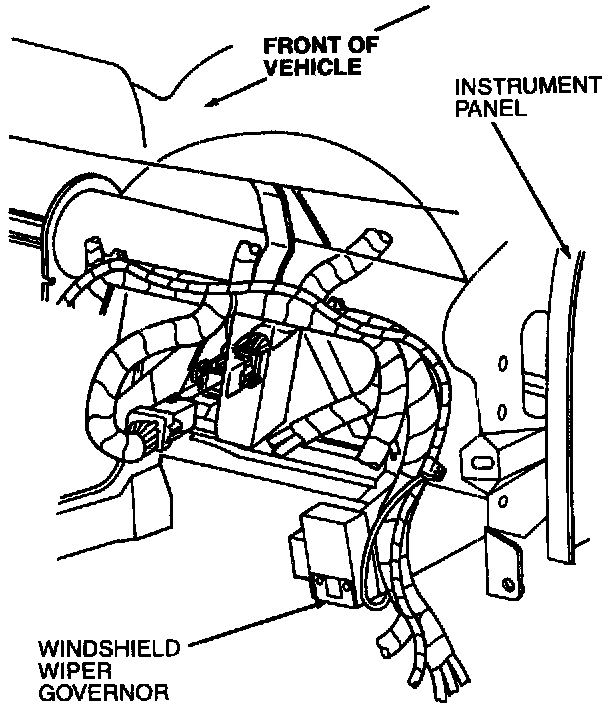

NOTE: The windshield wiper governor is located behind the instrument panel, near the top of LH cowl panels.

1. Disconnect battery ground cable.
2. Disconnect harness connector from windshield wiper governor.
3. Remove windshield wiper governor from bracket.
4. To install, reverse Removal procedure. Check wiper system operation.
