Diagnostic Trouble Code Testing: Notes
REMOTE ANTI-THEFT PERSONALITY (RAP) MODULE DTC INDEX
| DTC/Description |
Go To Test |
| B1309 Power Door Lock Circuit Shorted |
B1309 |
| B1341 Power Door Unlock Circuit Shorted |
B1341 |
| B1392 Memory Door Lock Relay Coil Circuit Failure |
B1392 |
| B1394 Memory Door Lock Relay Shorted |
B1394 |
| B1485 Brake Pedal Input Circuit Shorted |
B1485 |
| B1629 PRNDL Reverse Input Shorted |
B1485 |
| B1982 Driver's Door Unlock Relay Coil Circuit Failure |
B1982 |
| B1983 Driver's Door Unlock Relay Coil Shorted |
B1983 |
NOTE:

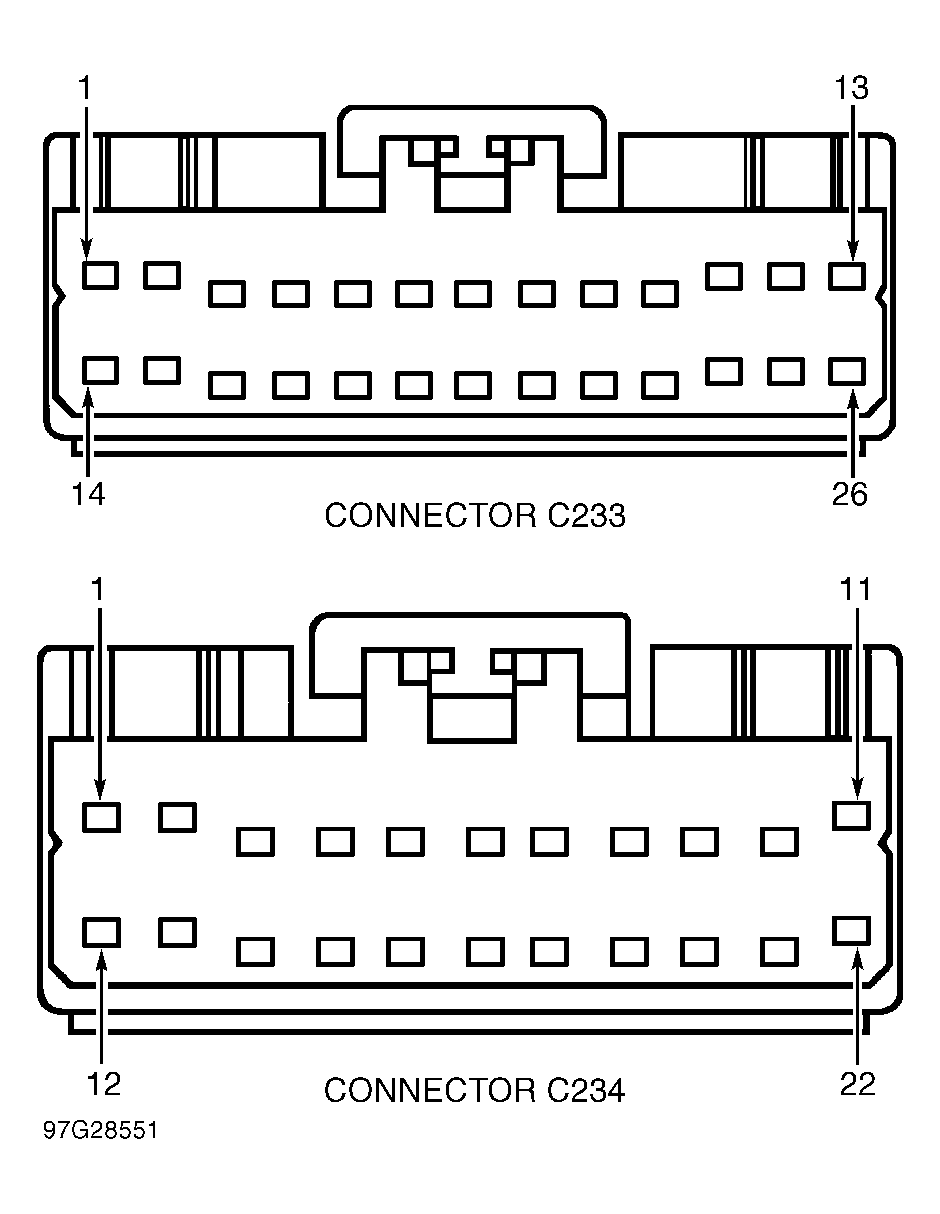

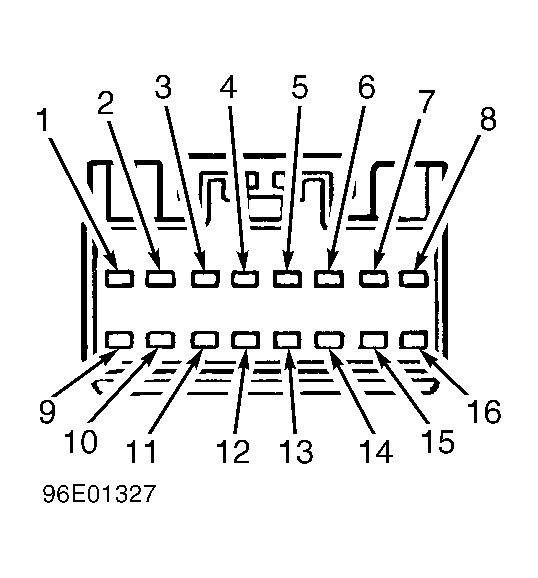

Use illustrations for GEM connector and terminal identification in the following TESTING. See Figure
and Figure
.
