Keyless Entry Module: Service and Repair

REMOVAL
1. Disconnect battery ground cable.
2. Remove radio.
3. Remove lower instrument panel center finish panel.
4. Lower glove box.

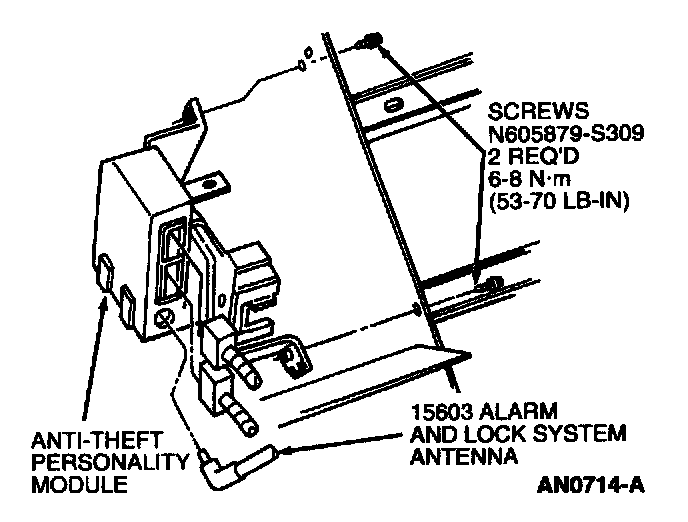

5. Remove two remote anti-theft personality module bracket retaining screws.
6. Disconnect electrical connectors and alarm and lock system antenna.
7. Remove remote anti-theft personality module and bracket.
8. Remove remote anti-theft personality module from mounting bracket.

INSTALLATION
1. To install, follow removal procedure in reverse order.
2. Tighten remote anti-theft personality module bracket retaining screws to 6-8 Nm (54-70 Lb-In).
