Climate Control Assembly Switch

REMOVAL
1. Remove climate control assembly from instrument panel.
2. Remove knob.

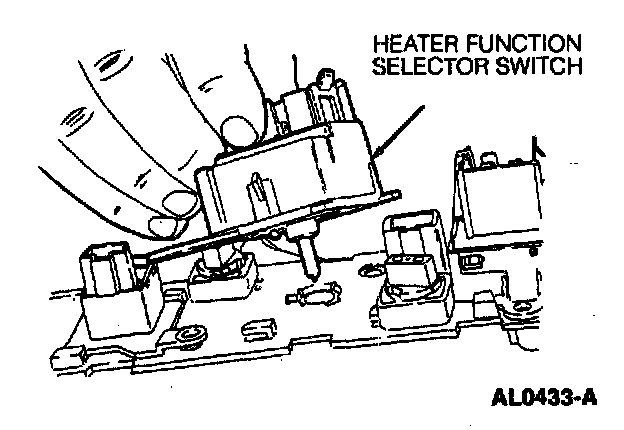

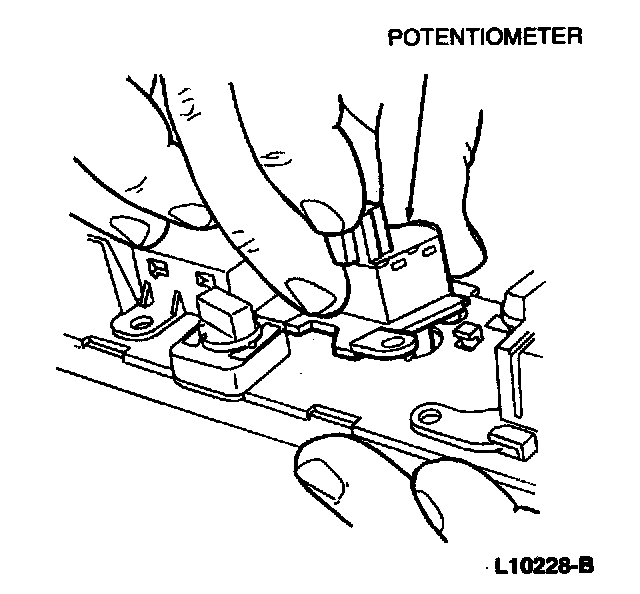

3. Disconnect electrical connector from potentiometer or electrical connector and vacuum hose harness from heater function selector switch.
4. Remove retaining screw.
5. Rotate climate control assembly switch counterclockwise, lift and remove.

INSTALLATION
1. Follow removal procedure in reverse order.
