Temperature Control Switch






REMOVAL
1. Remove climate control assembly.
2. Remove knob from switch shaft.
3. Remove retaining bolt.

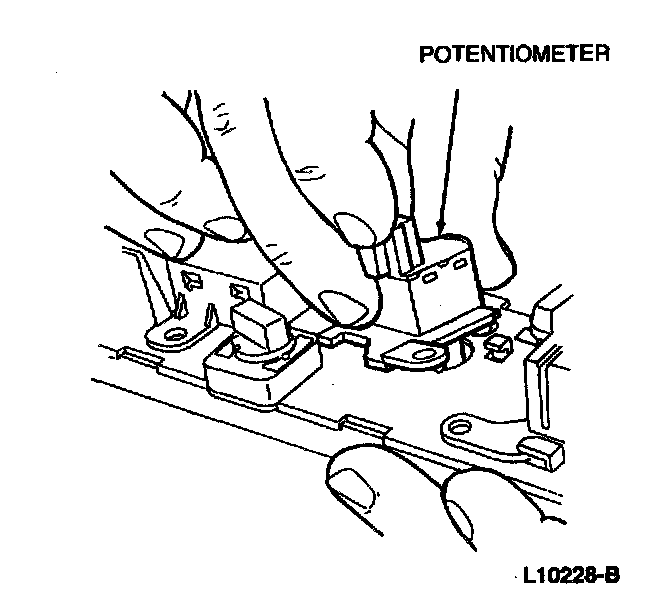

4. Rotate temperature control potentiometer counterclockwise and lift off.

INSTALLATION
1. Follow removal procedure in reverse order.
