Control Module: Locations



Engine View:

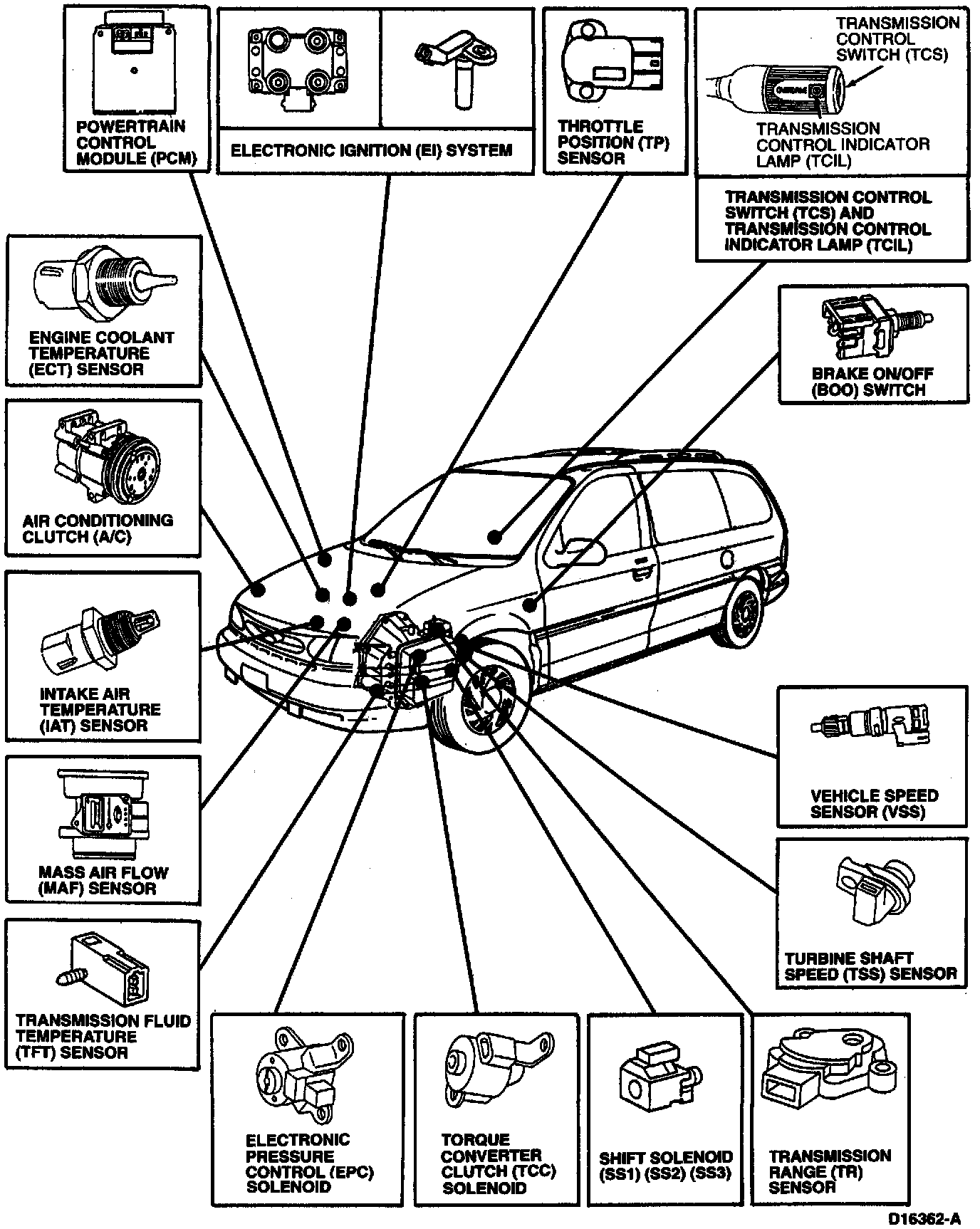

Transaxle Electronic Control System - Component Locator:





The Powertrain Control Module is located behind RH side of instrument panel.
