Control Assembly, HVAC

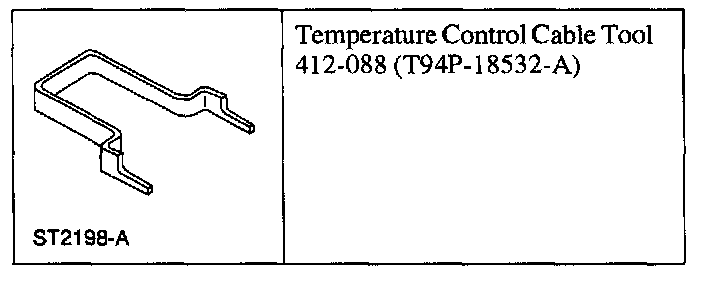

SPECIAL SERVICE TOOL(S)

REMOVAL
1. Remove the instrument panel center finish panel/register.

Air Register

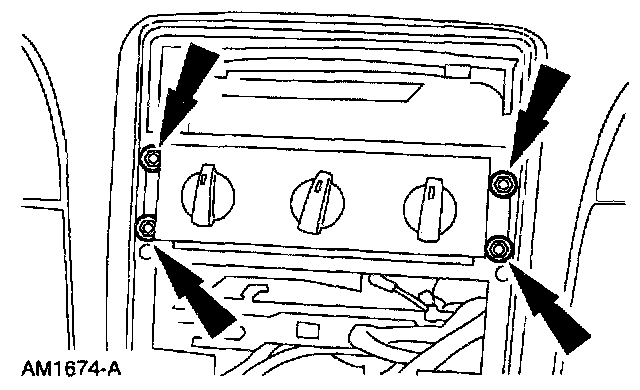

2. Remove the screws.
3. Disconnect the connectors.

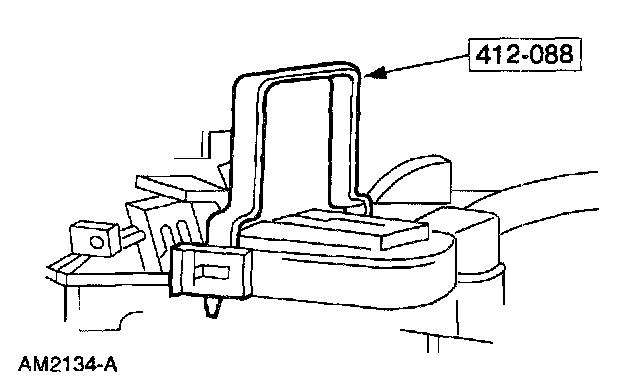

4. Using the special tool, disconnect the temperature control cable from the control head.

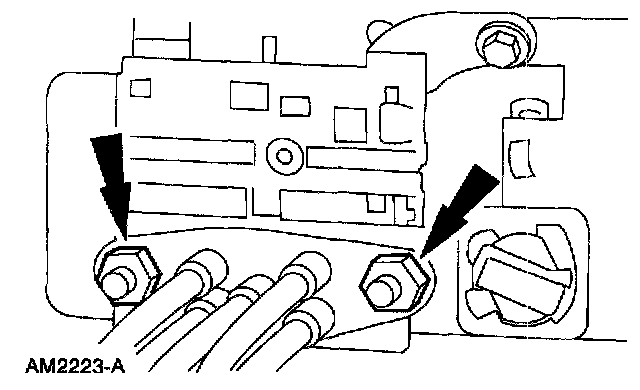

5. Remove the nuts and disconnect the vacuum connector.

INSTALLATION

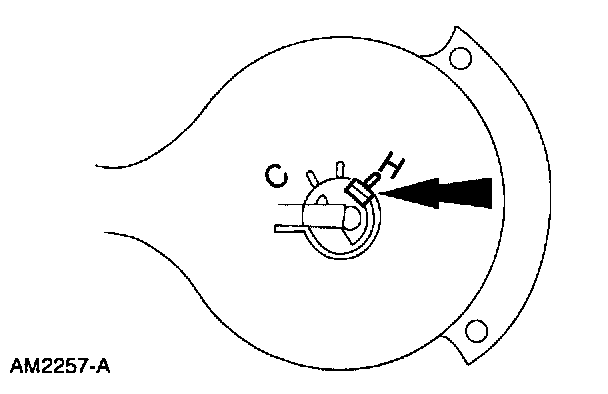

1. Align the blend door driver to the full heat position.

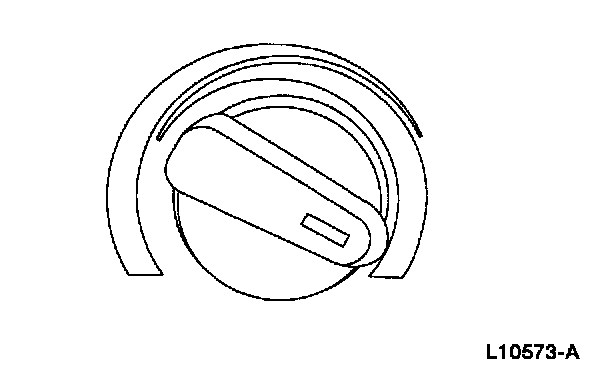

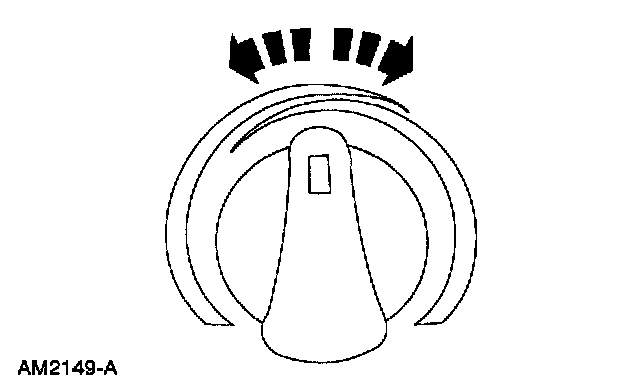

2. Place the temperature control knob in the full warm position.

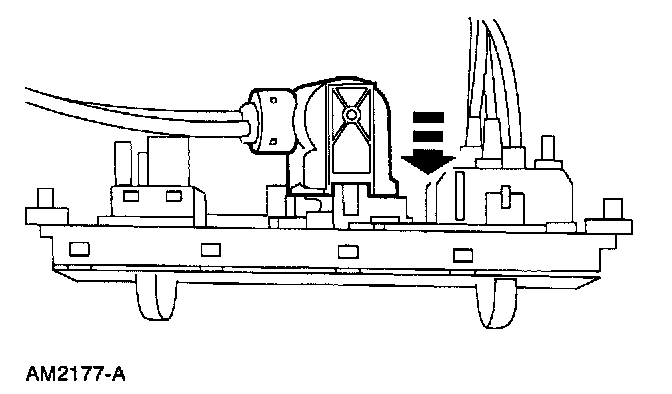

3. Attach the cable drive to the control head.

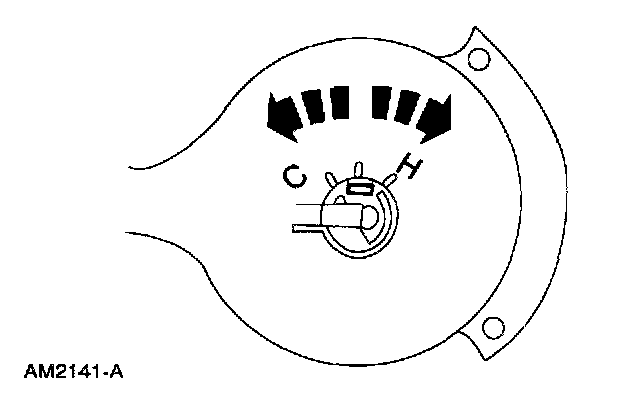

4. Rotate the knob back and forth from full WARM to full COOL.







5. Check the cable control for correct range of movement.

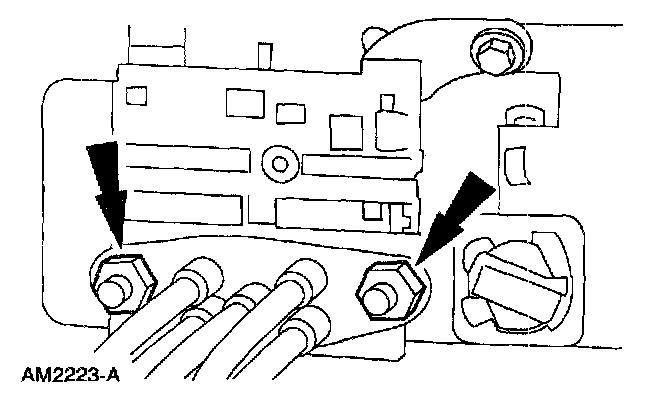

6. Install the vacuum connector and nuts.

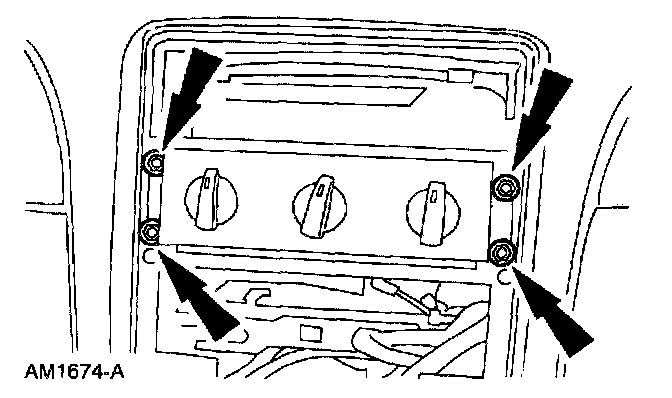

7. Install the control head.
