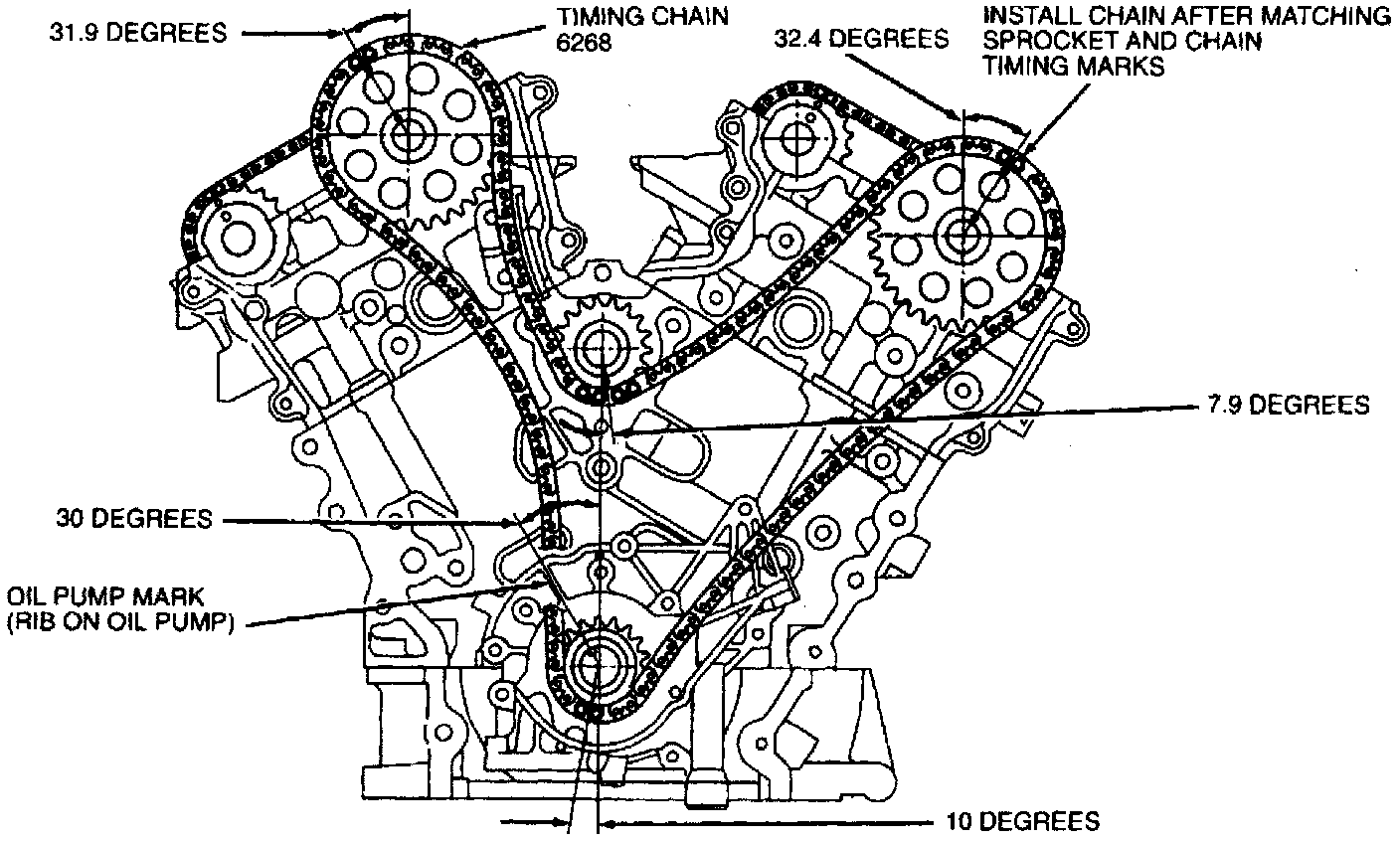

Timing Component Alignment Marks

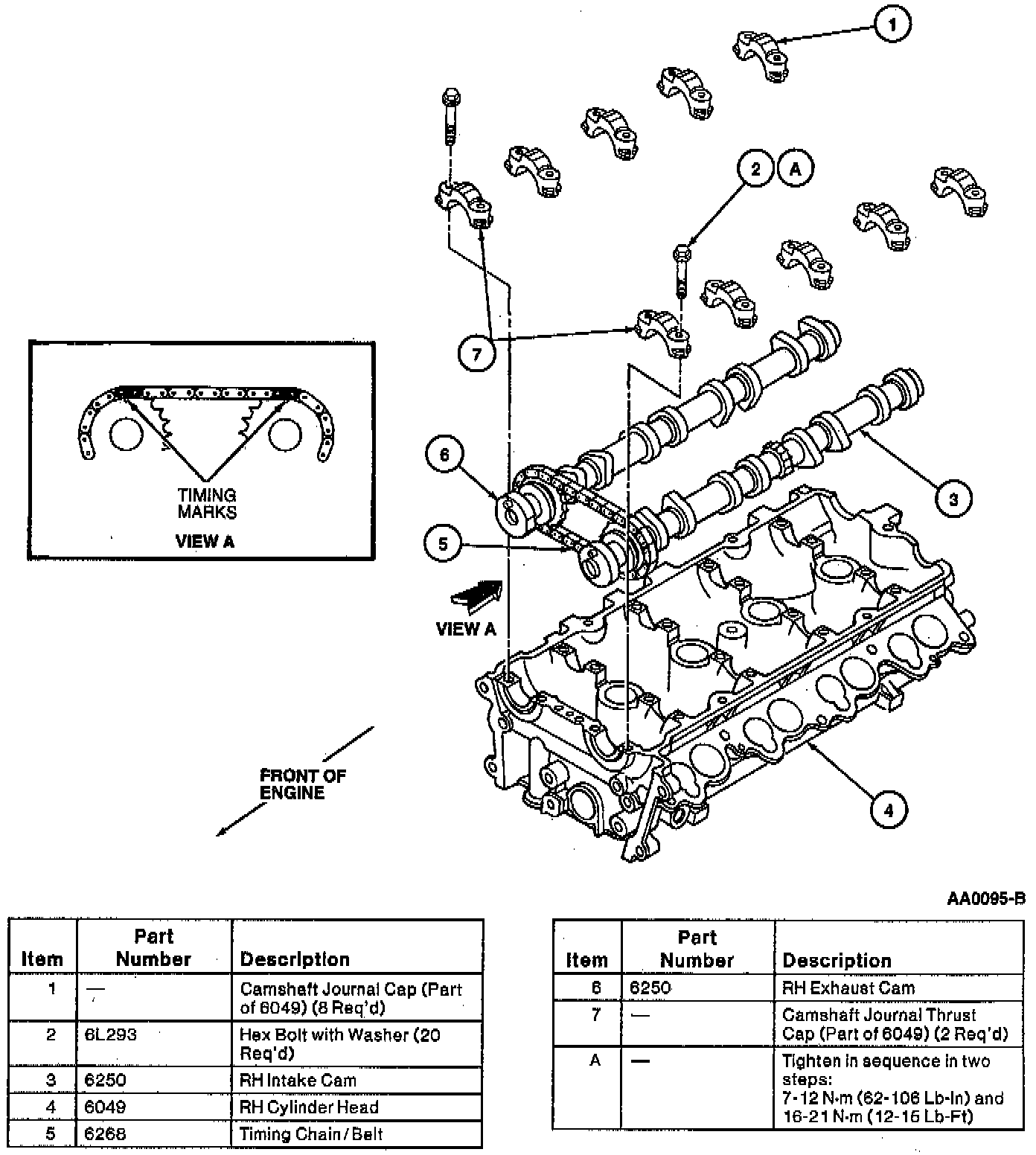

LH Shown. RH Similar.:





Fig. 13 Engine Front Cover Installation:









Refer to Engine Cooling and Exhaust/Engine/Service and Repair/Procedures/Assembly for timing information. Assembly
