Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| A/C Clutch Diode | In battery junction box. |
| Battery Junction Box (3.0L) | Left side of engine compartment. |

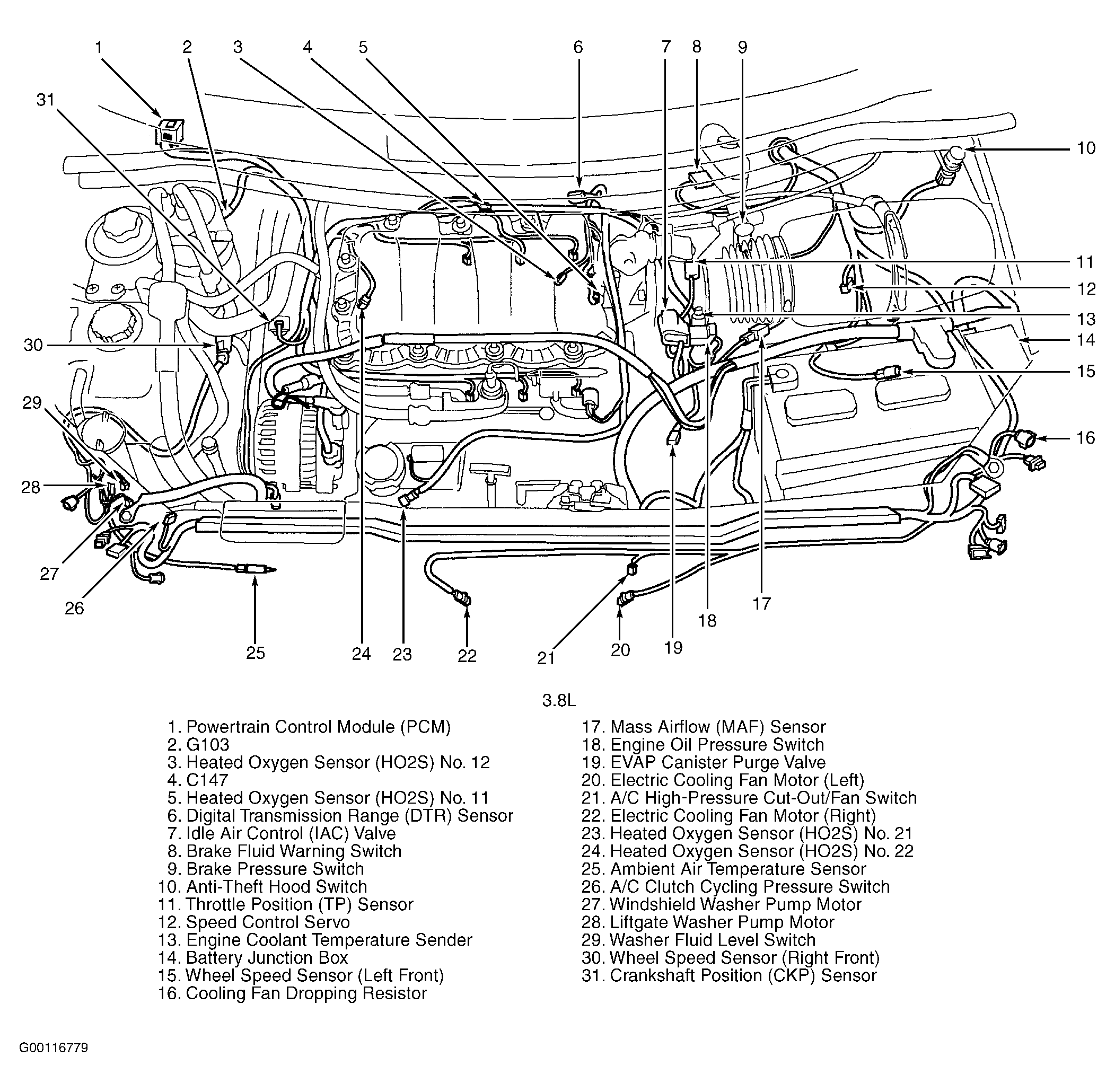

| Battery Junction Box (3.8L) | Left side of engine compartment. See Figure. |
| Dual Auxiliary Relay Box | At left rear side of engine compartment. |

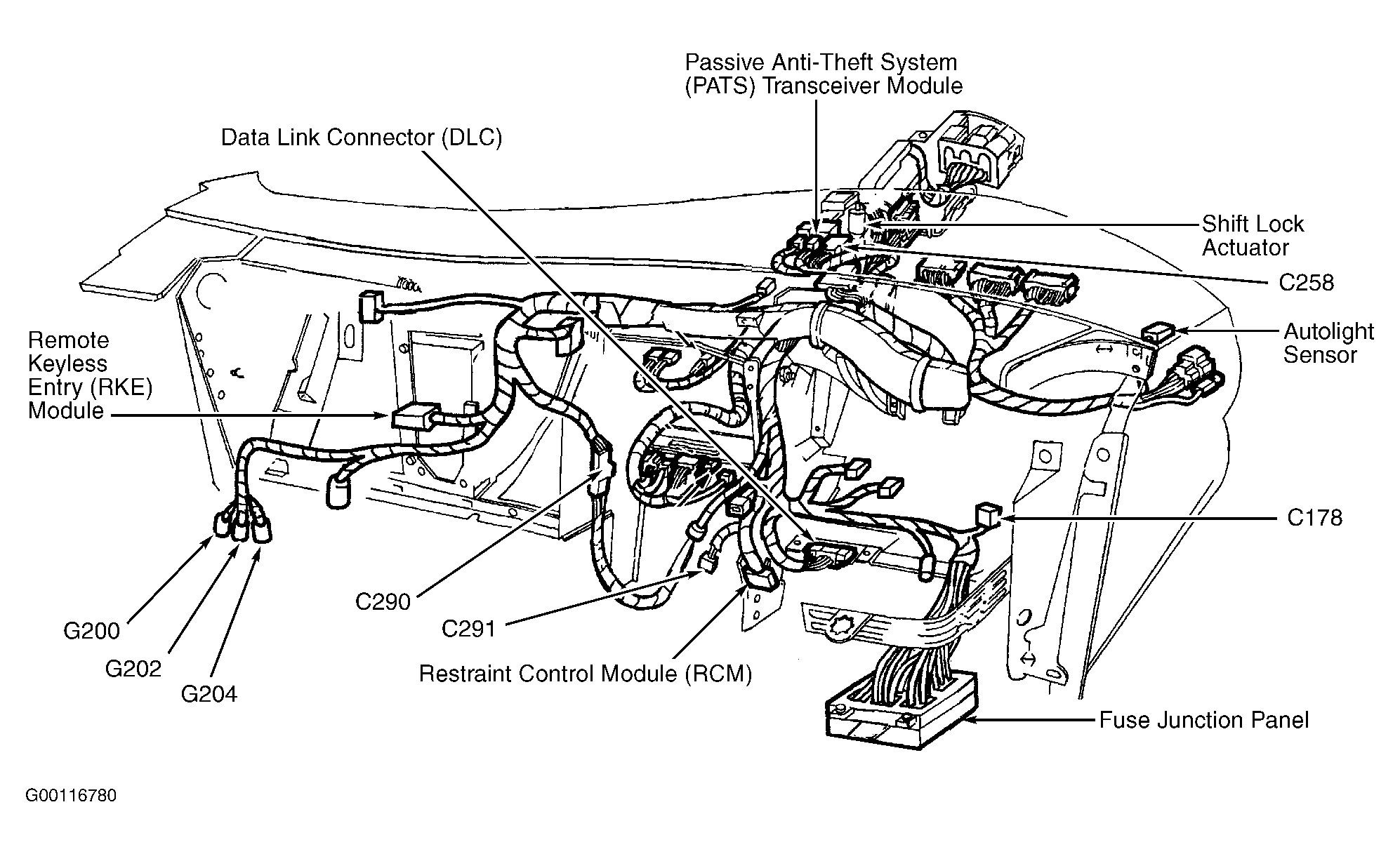

| Fuse Junction Panel | Behind left side of dash. See Figure. |
| Fusible Link "A" | At battery junction box. |
| Fusible Link "B" | At battery junction box. |
| Fusible Link "C" | At battery junction box. |
