Home >> Ford >> 1999 >> Windstar V6-3.8L VIN 4 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Axle Shaft

1 Of 2:




2 Of 2:

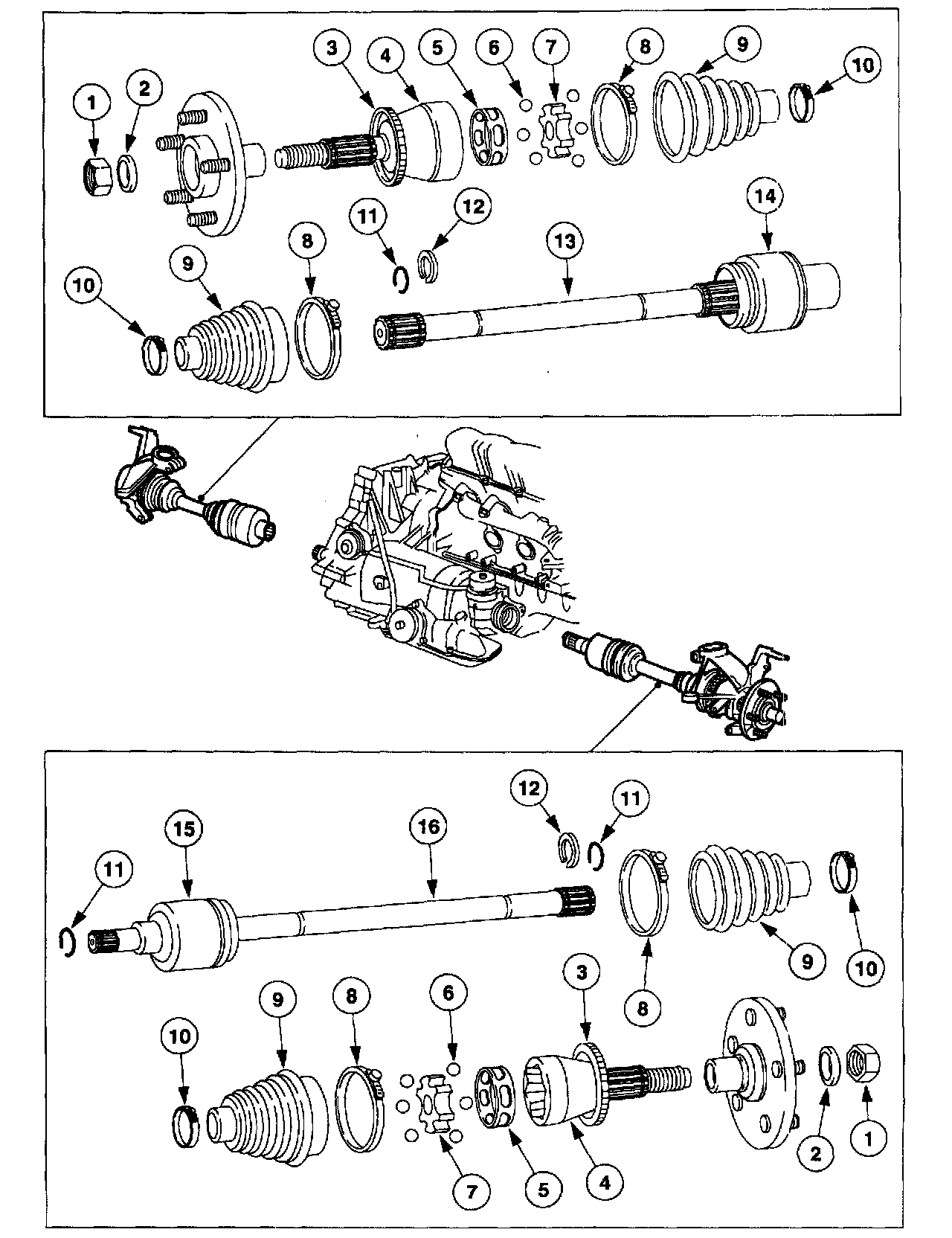

Front Drive Halfshafts
