Engine

Exploded View:




Legend:

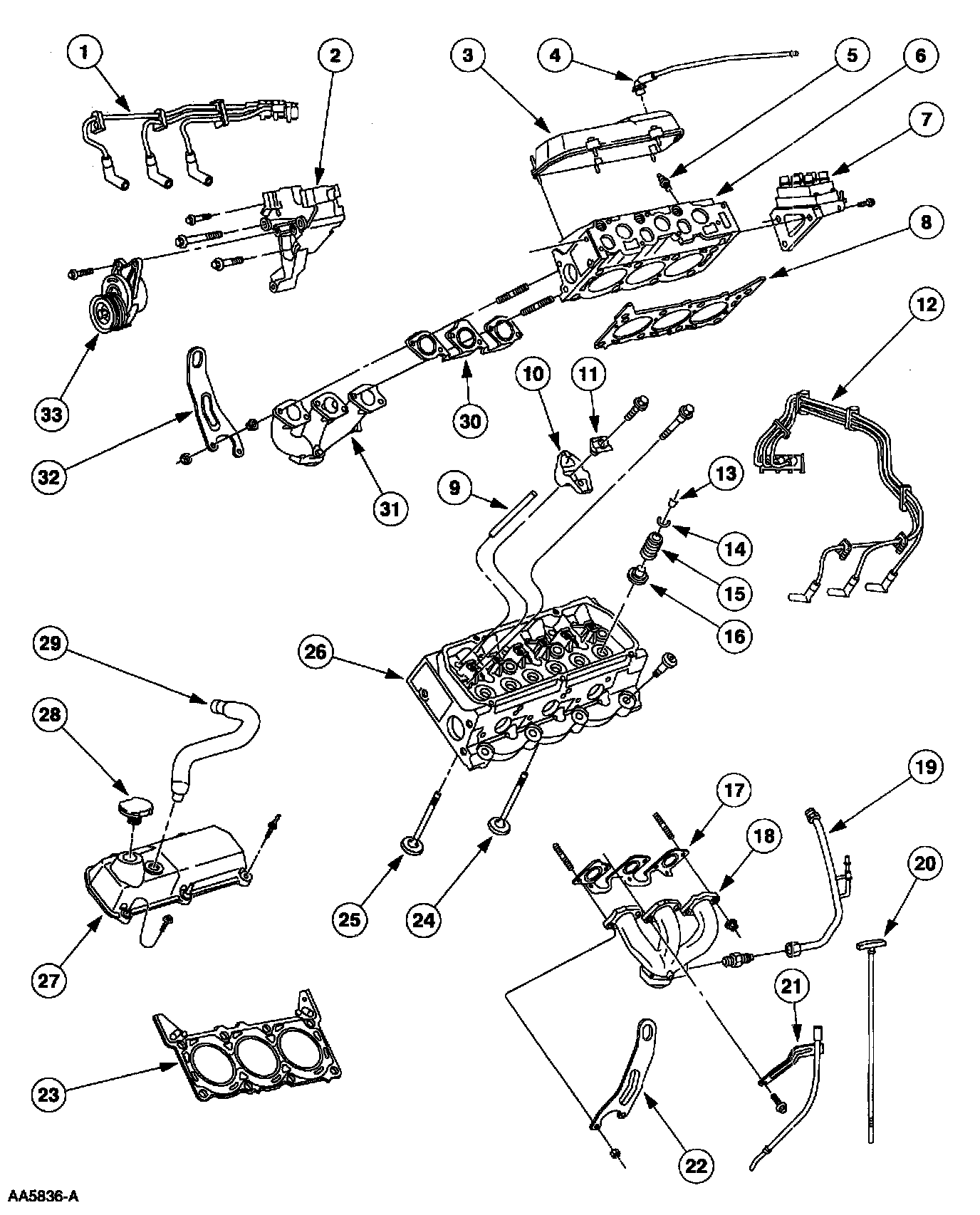

Cylinder Head


Exploded View:

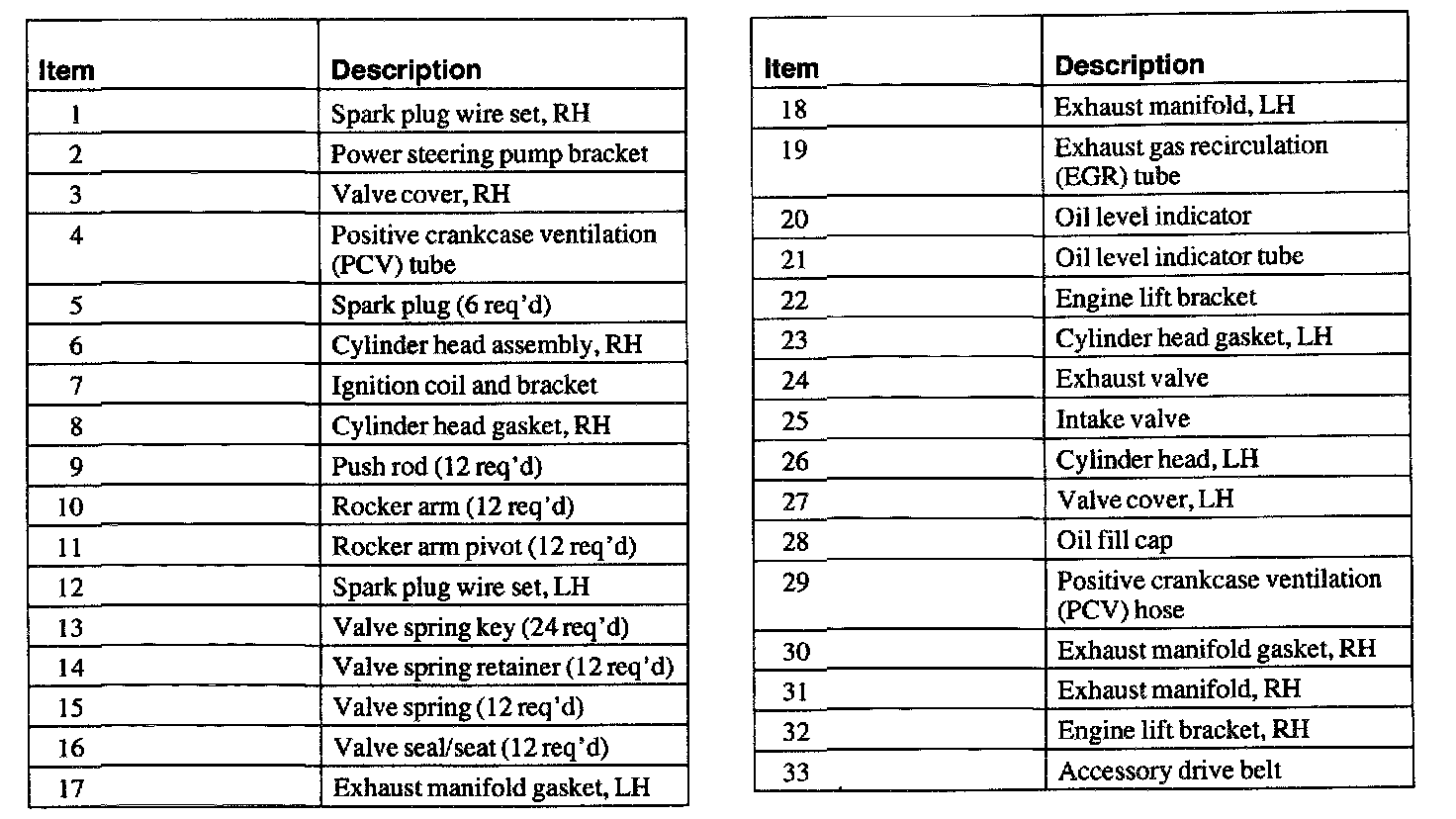

Legend:

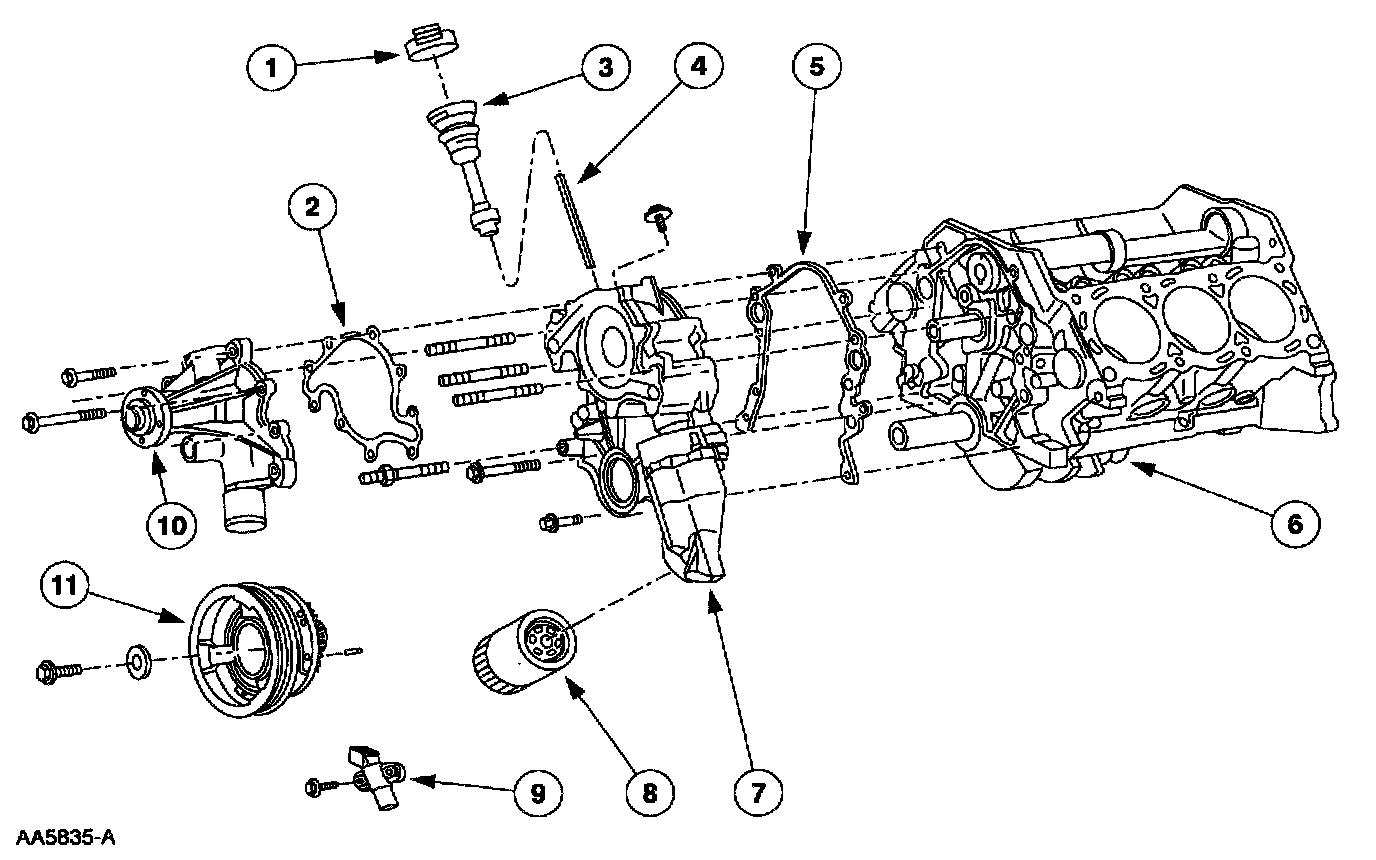

Engine - Front


Exploded View:

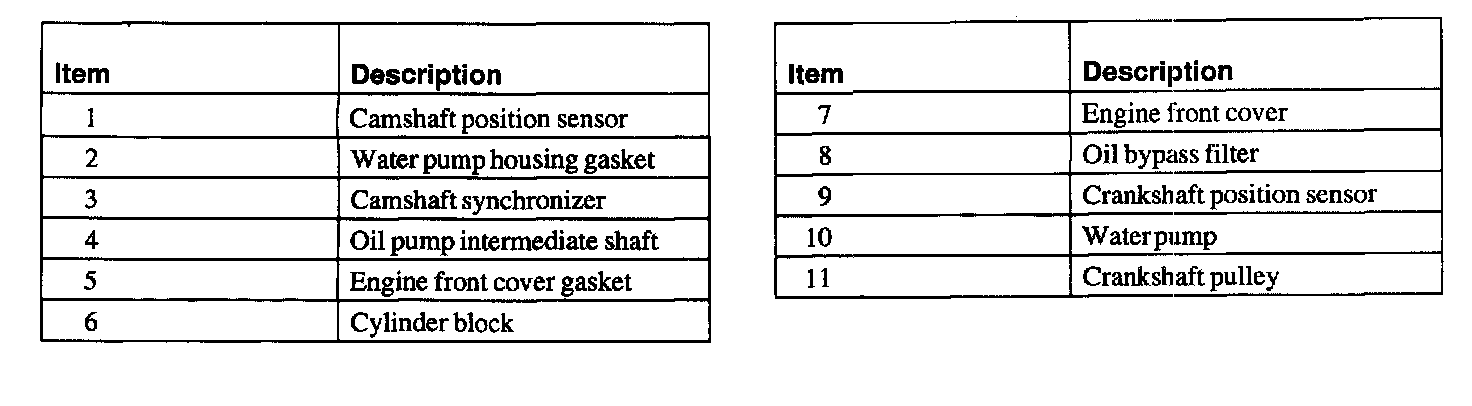

Legend:

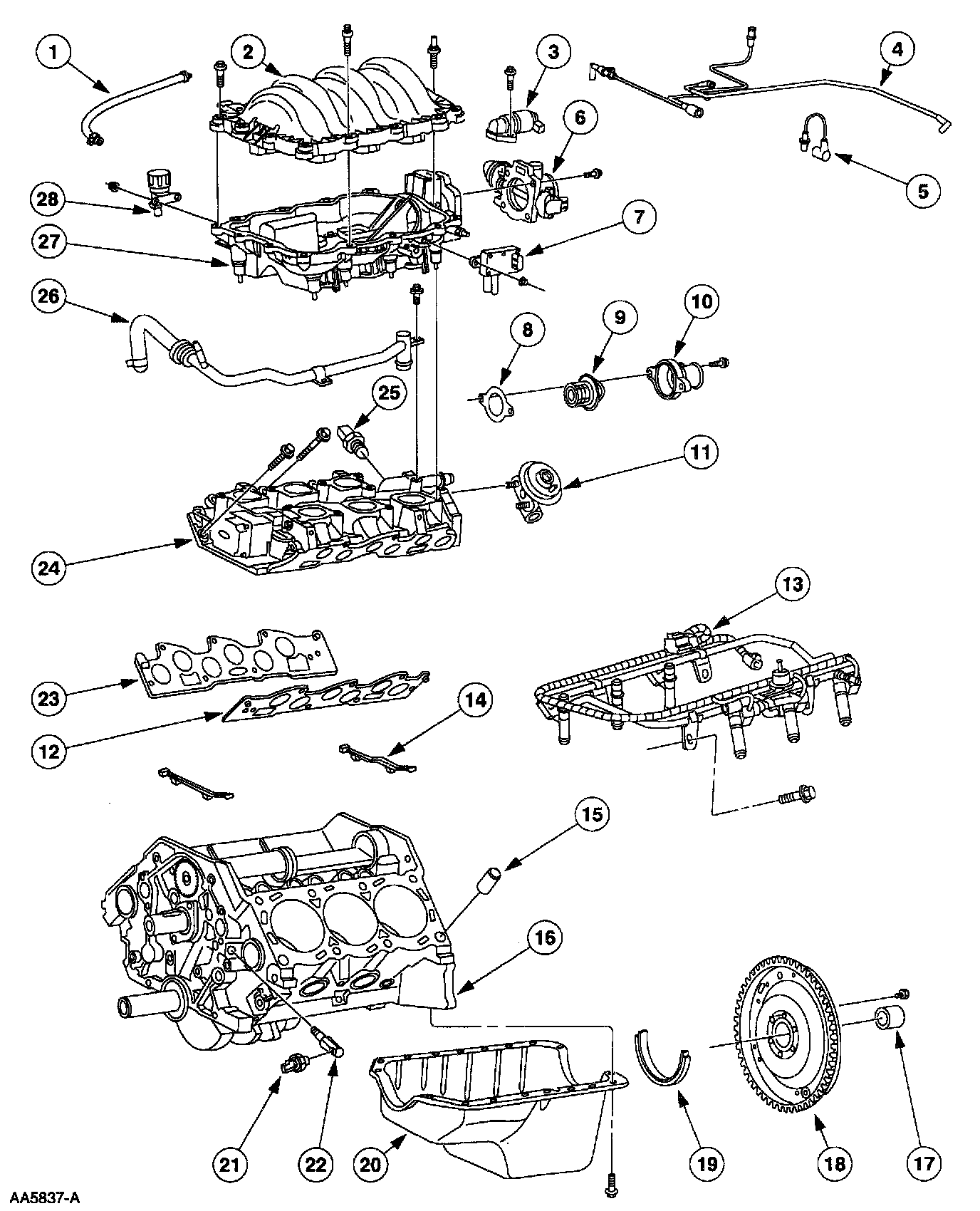

Engine - Upper


Exploded View:

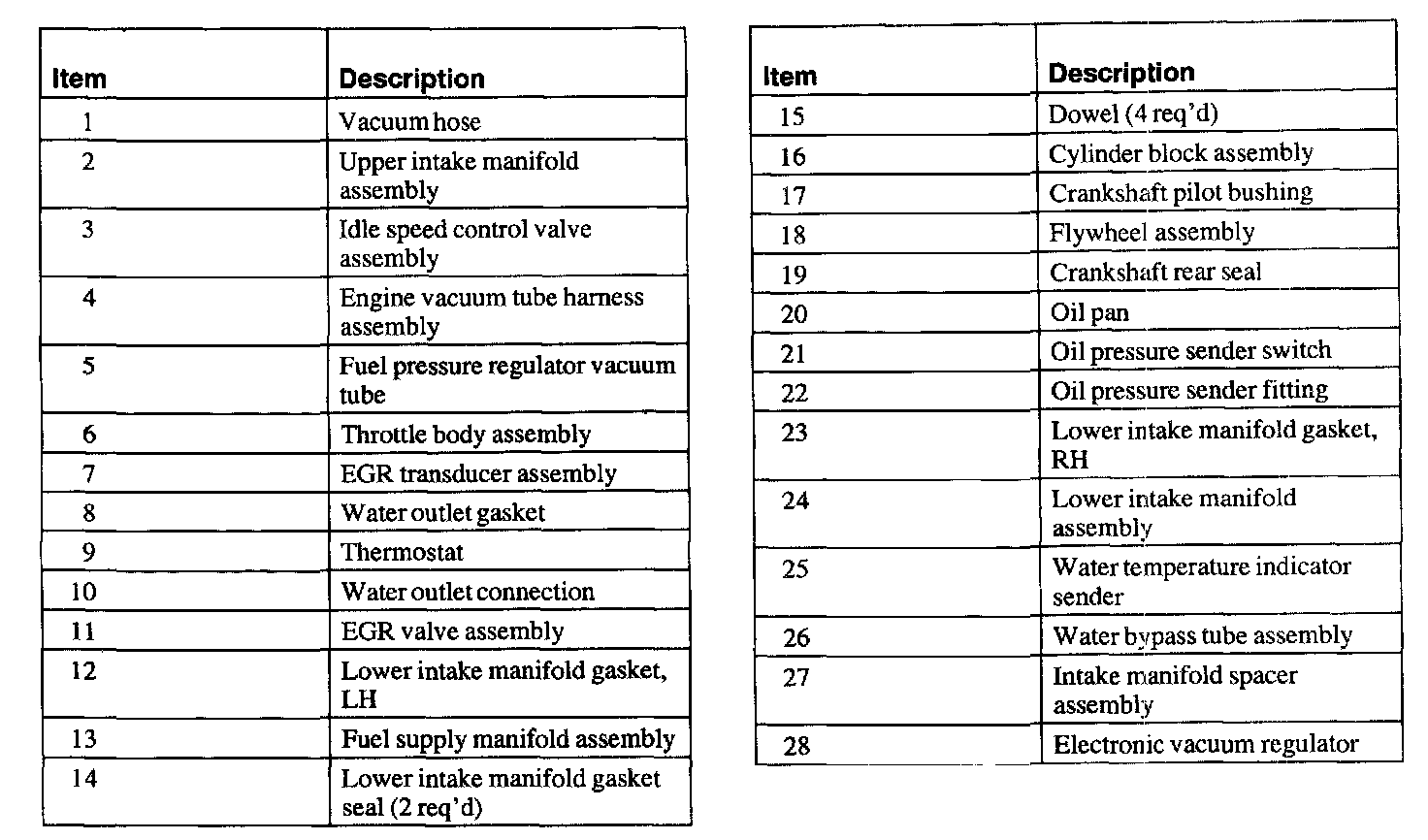

Legend:

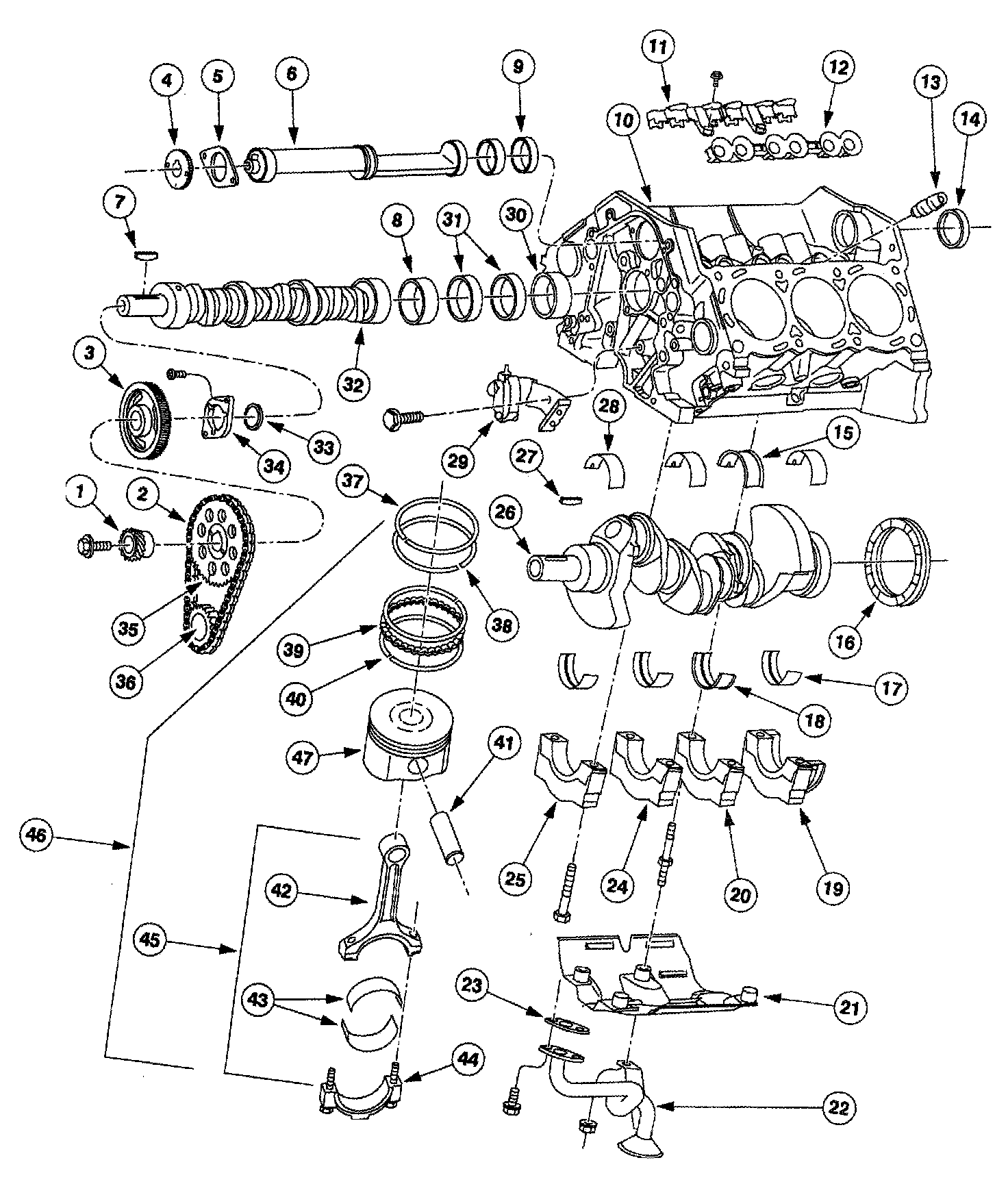

Engine - Lower
