Valve Spring Squareness

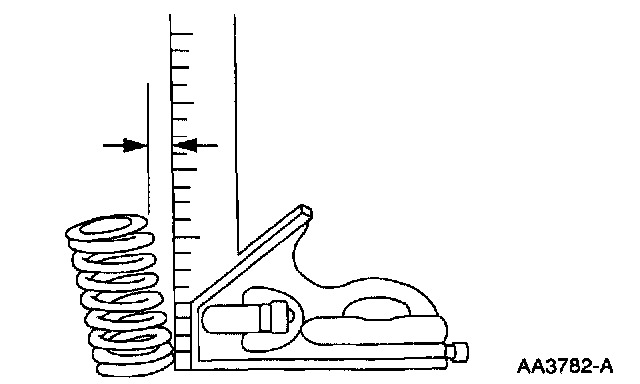

1. Measure the out-of-square,on each valve spring.
- Turn the valve spring and observe the space between the top of the valve spring and the square. Install a new valve spring if out of square.
