Coolant Temperature Sensor/Switch (For Computer): Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Partially drain the cooling system.







3. Disconnect the connector from the Engine Coolant Temperature (ECT) sensor.

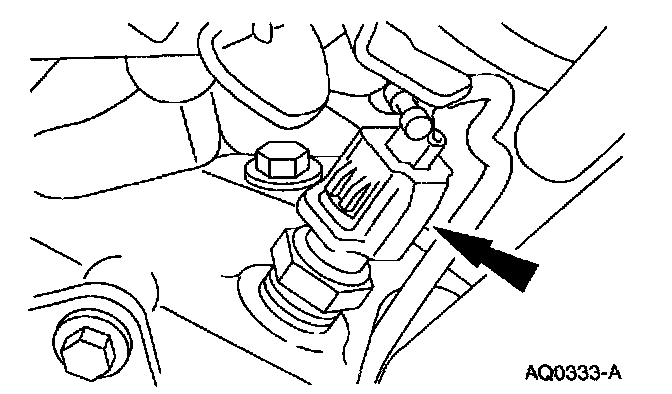

4. Remove the engine coolant temperature sensor.

INSTALLATION

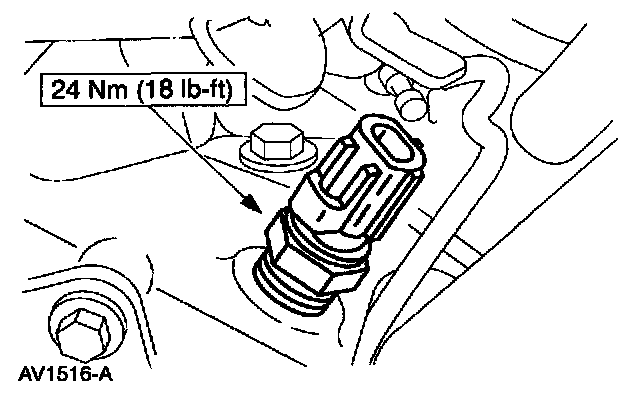

1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
