Module Configuration - Service Tip

Article No.
99-14-9

07/12/99

MODULE CONFIGURATION - SERVICE TIP

FORD:
1999 WINDSTAR

ISSUE
There may be difficulty in configuring or incomplete configuration of one or more modules that control the electrical Systems on some vehicles. This may be caused by incomplete module configuration information currently available in the Workshop Manual.


























ACTION

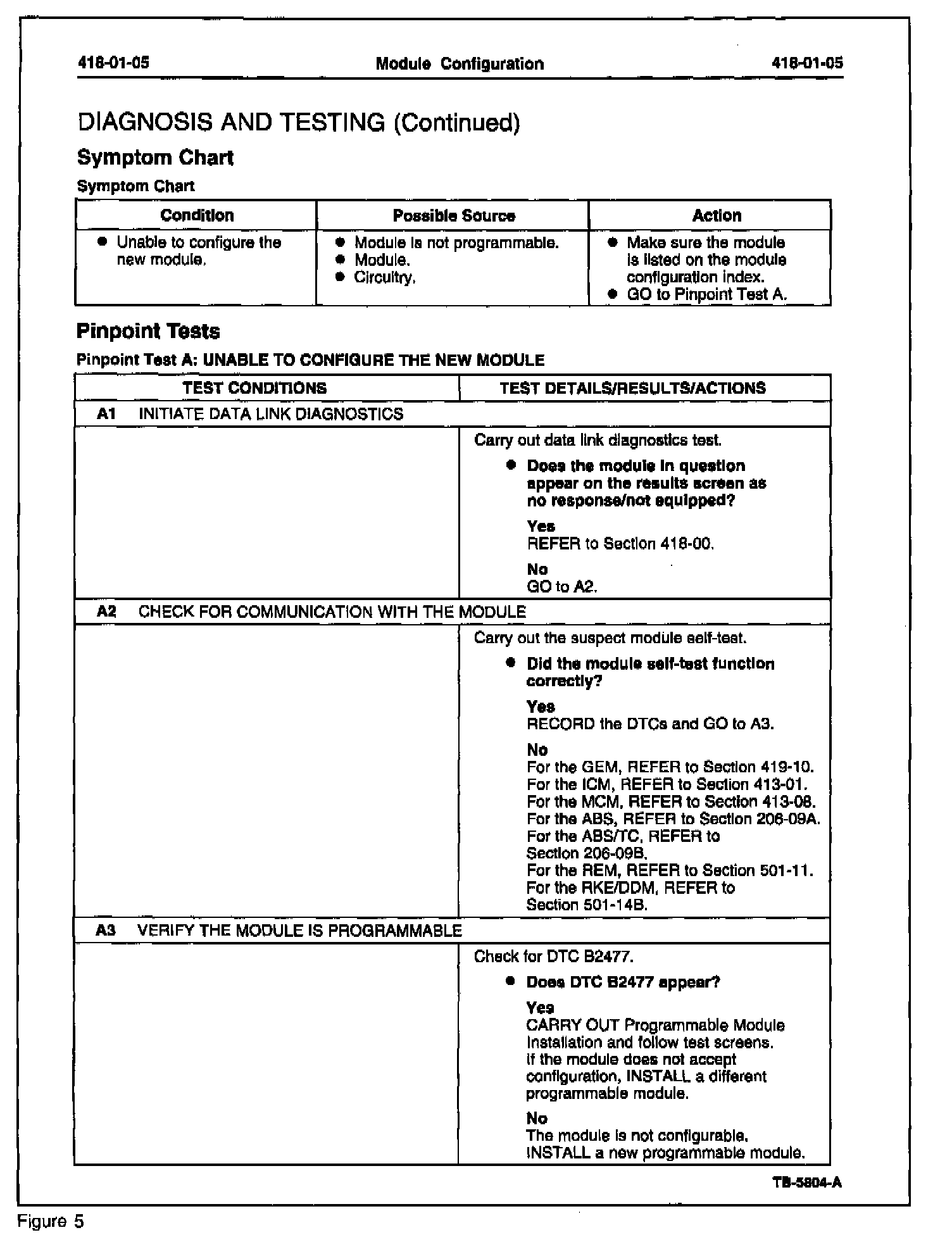

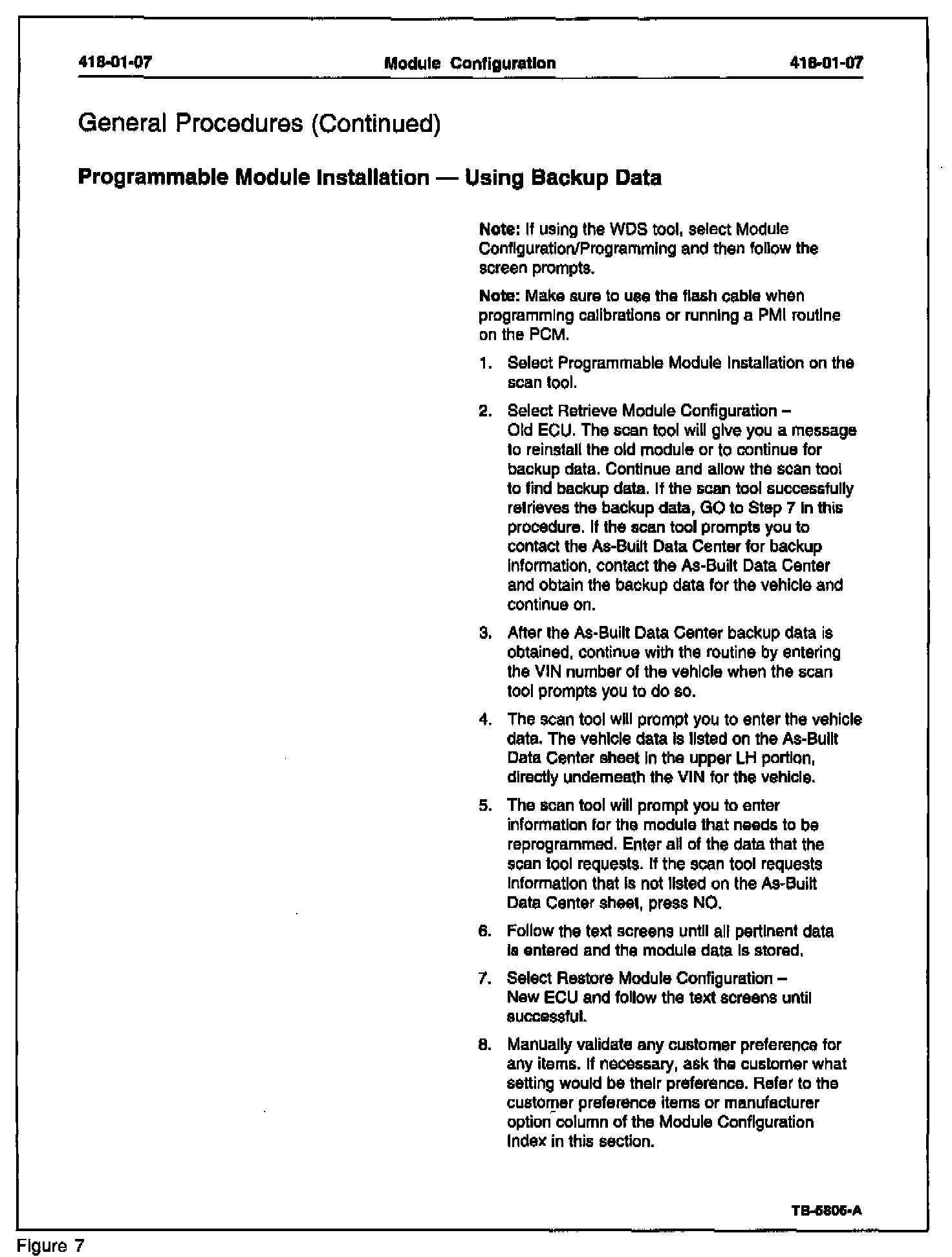

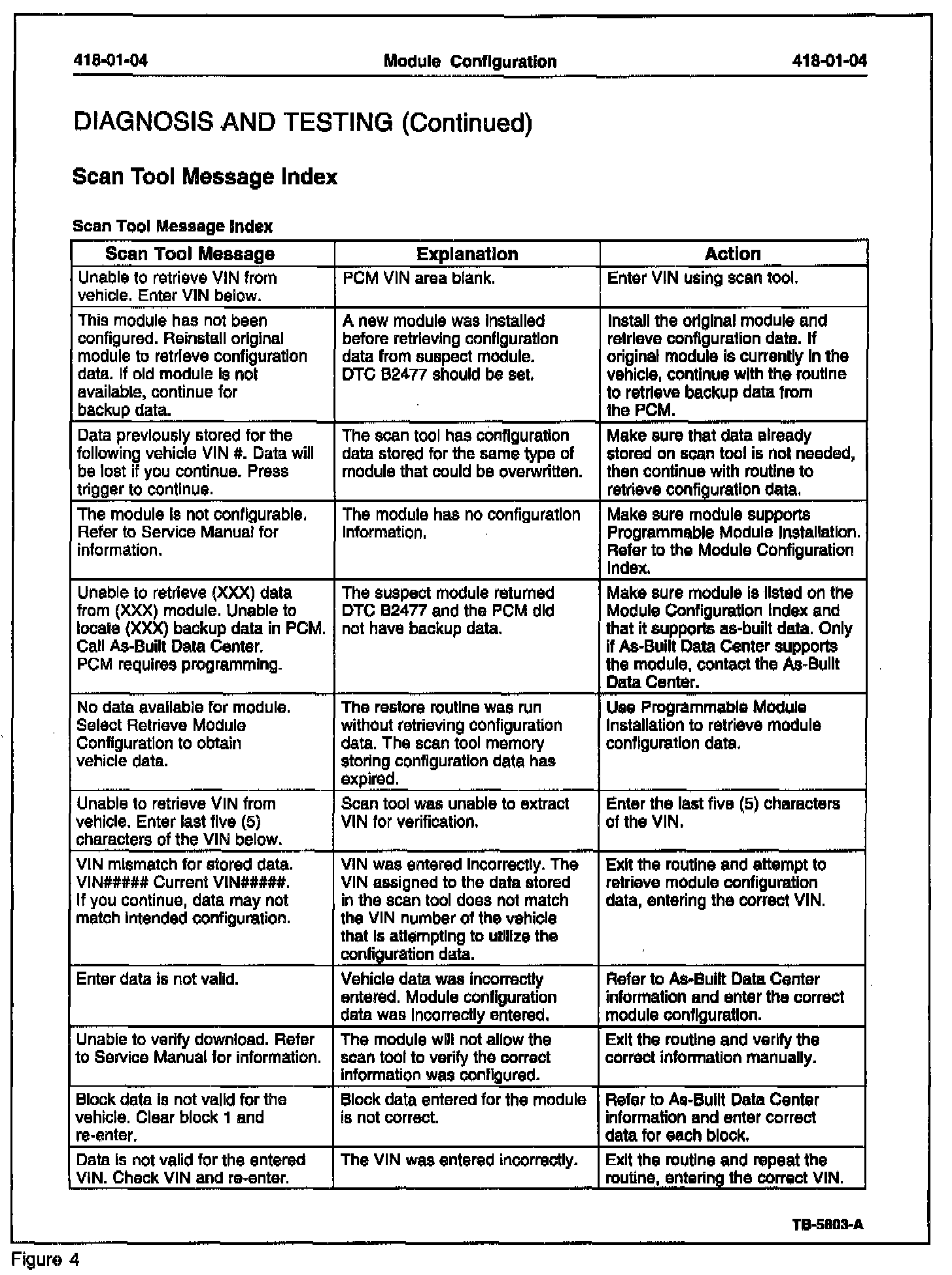

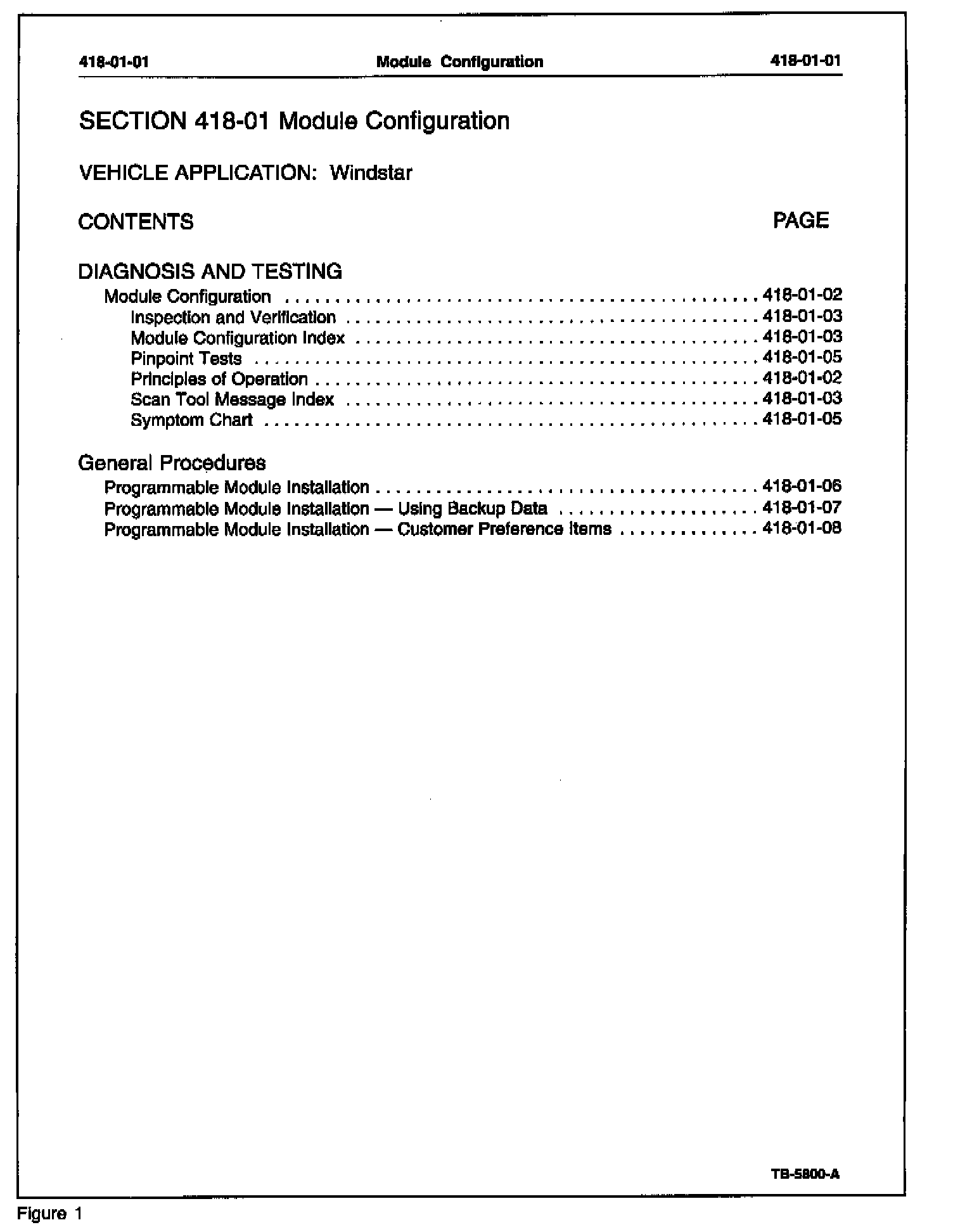

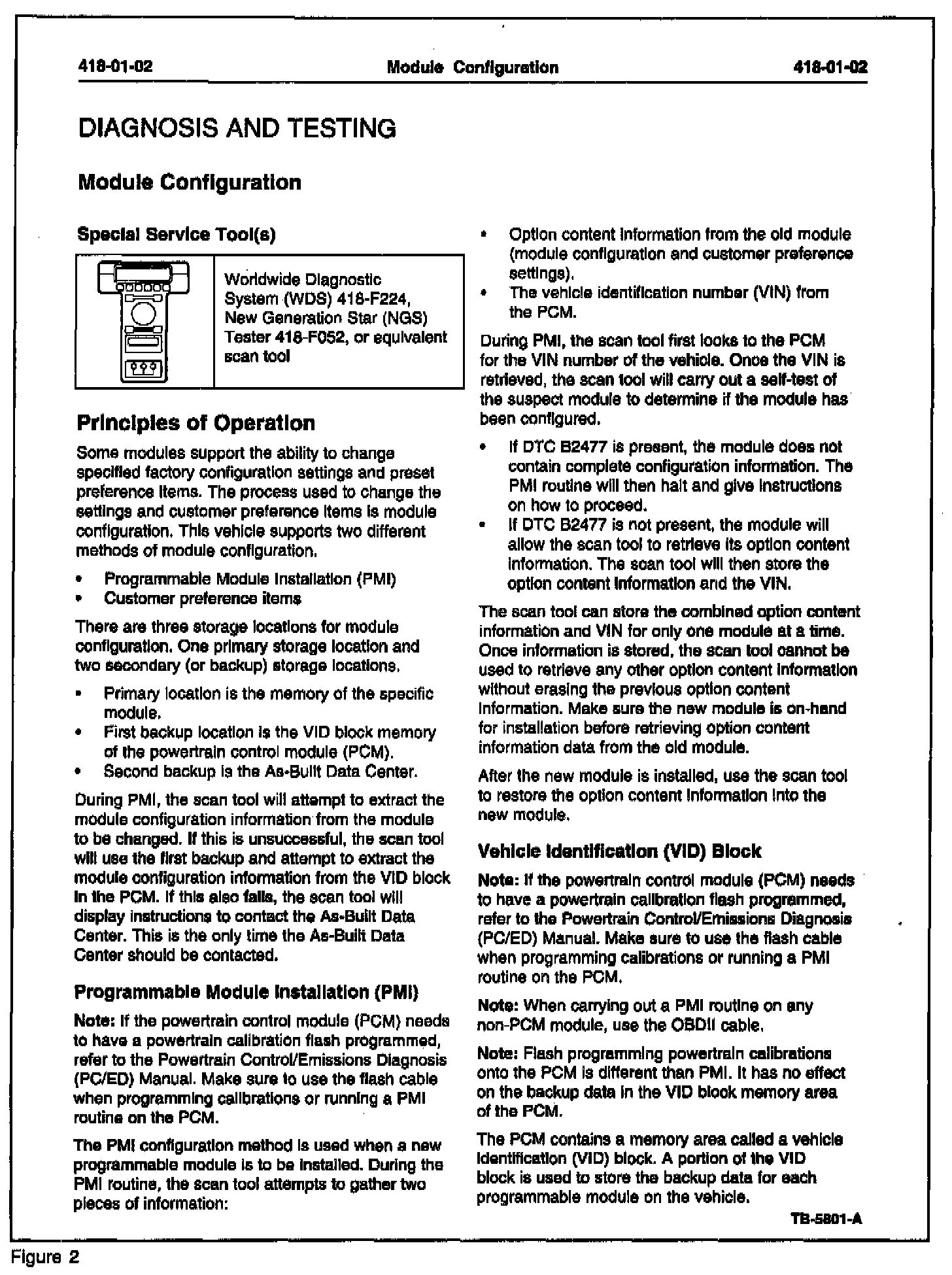

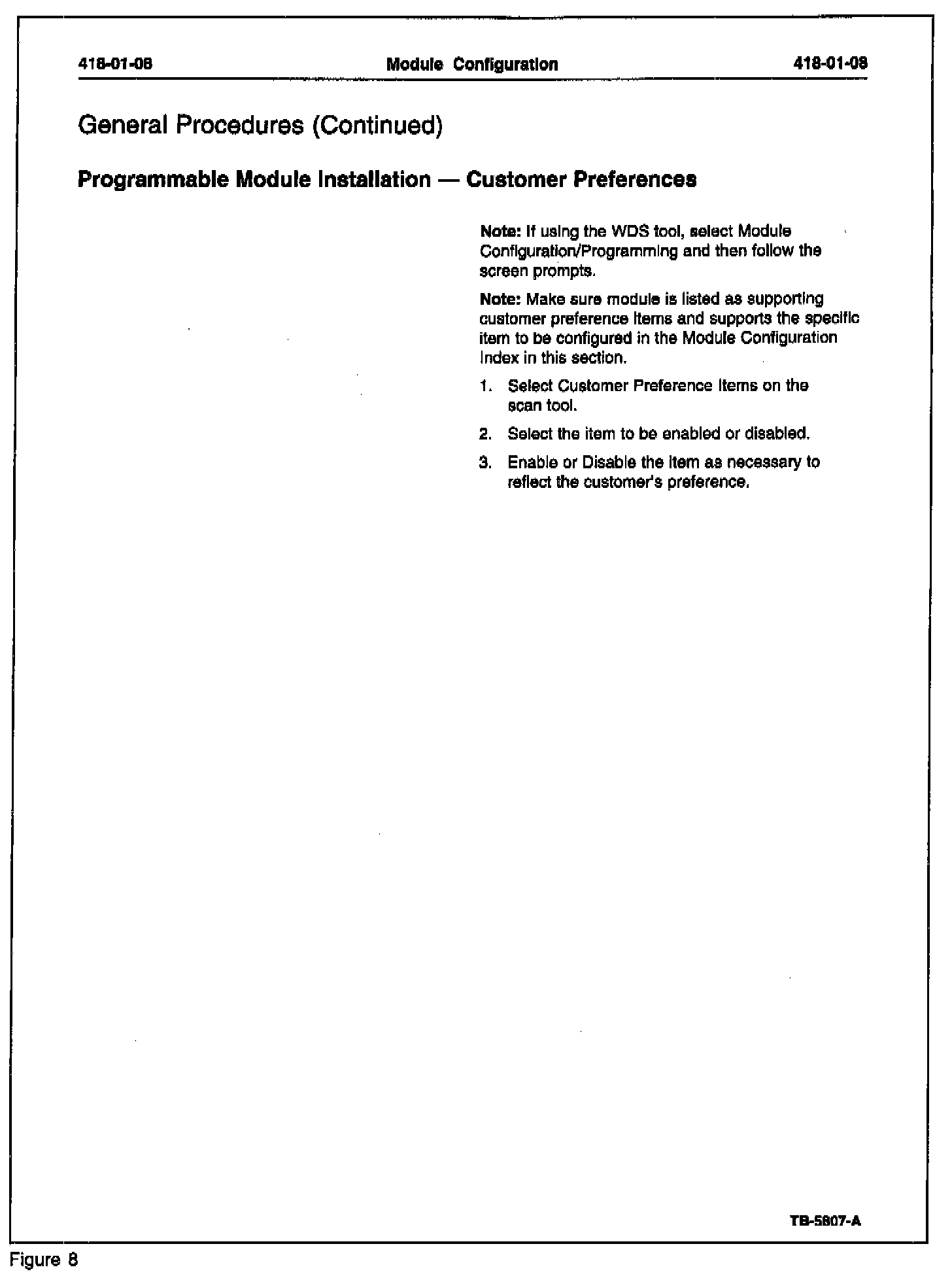

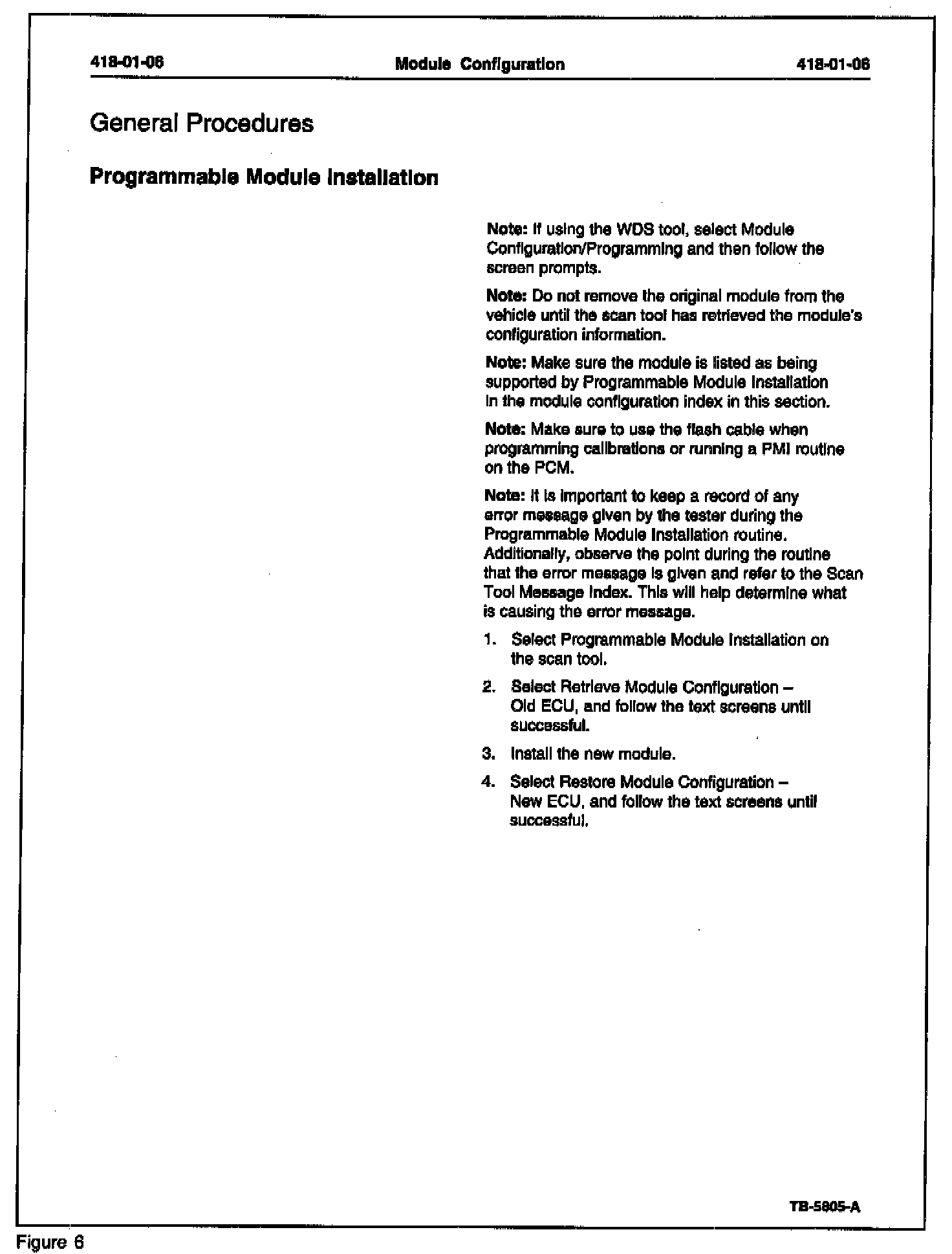

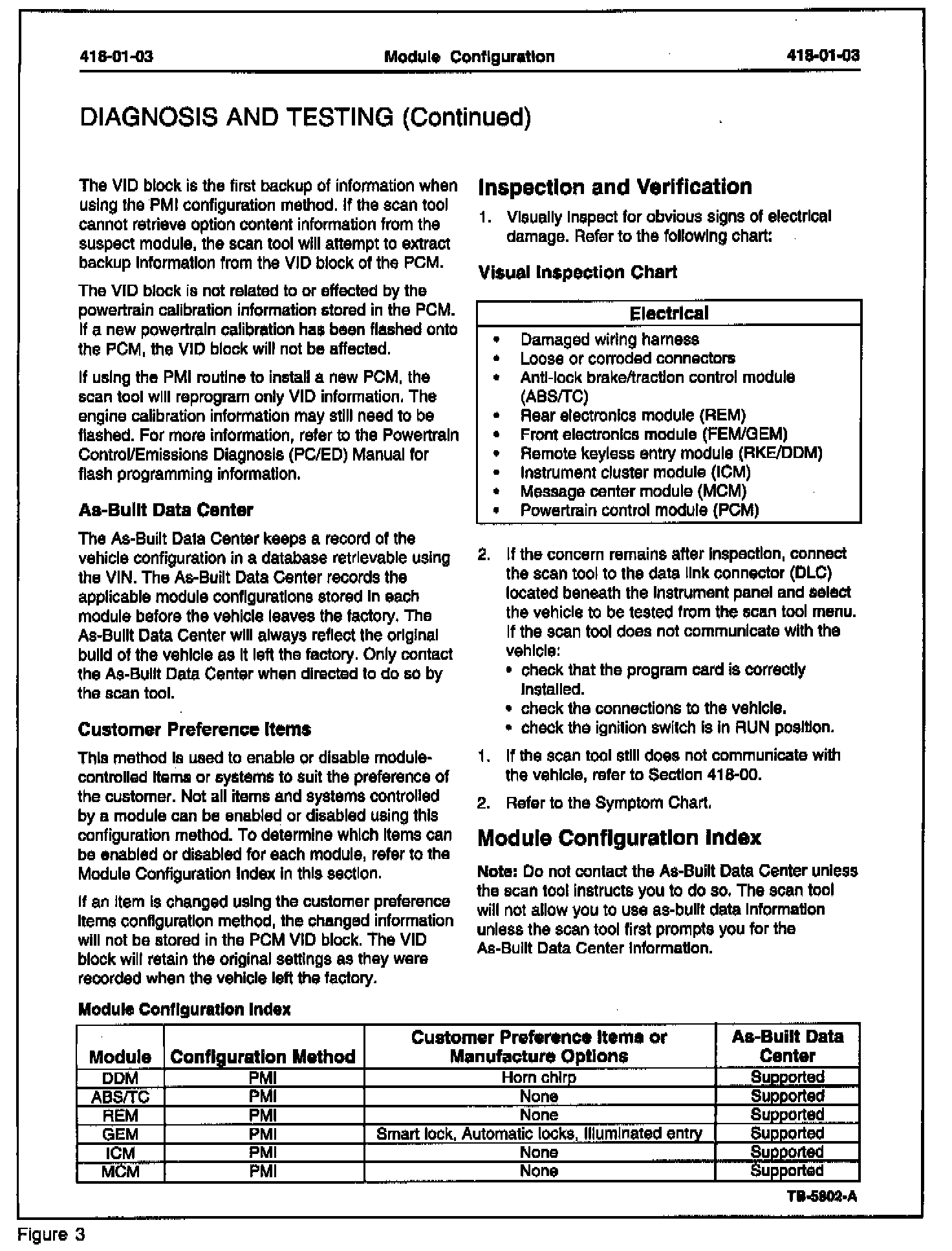

Reconfigure the appropriate module using New Generation Star (NGS) Tester and the following Figures which contain a revised Service Procedure.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 201000, 201100, 201200, 202000, 203000, 203100, 203200, 204000, 204100, 204200, 205000, 206000, 207000, 208000, 290000
