Connector Views

NOTE: For connector views referred to in diagnostic tests, see Fig 1-Fig 13 .
Fig 1: Identifying Powertrain Control Module Connector Terminals
G96F31315Courtesy of FORD MOTOR CO.

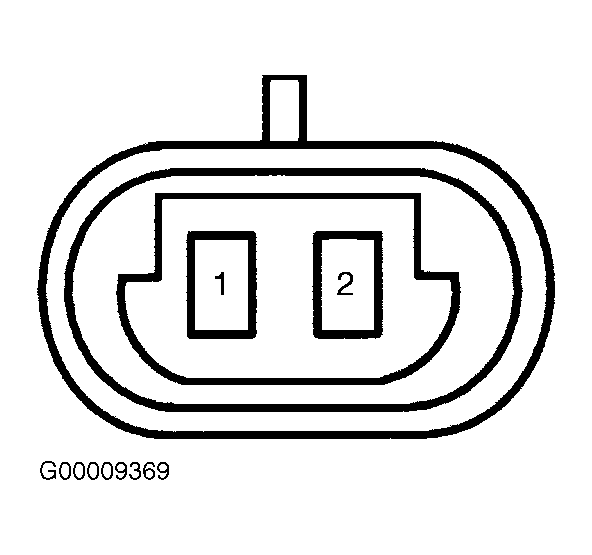

Fig 2: Identifying Bi-Fuel Relay Module Connector C4019 Terminals
G00009369Courtesy of FORD MOTOR CO.

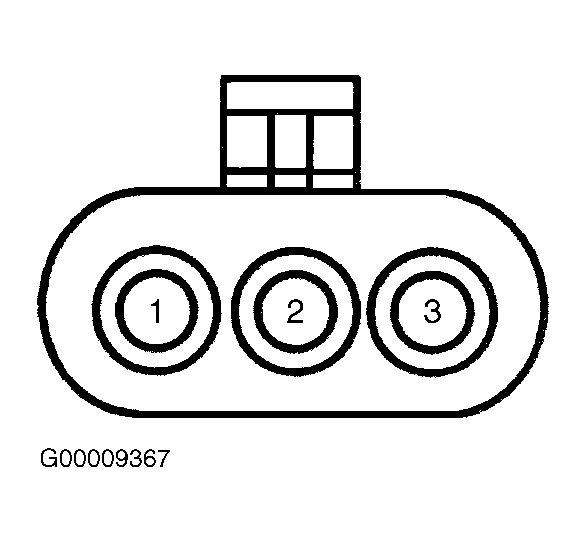

Fig 3: Identifying Bi-Fuel Relay Module Connector C4026 Terminals
G00009367Courtesy of FORD MOTOR CO.

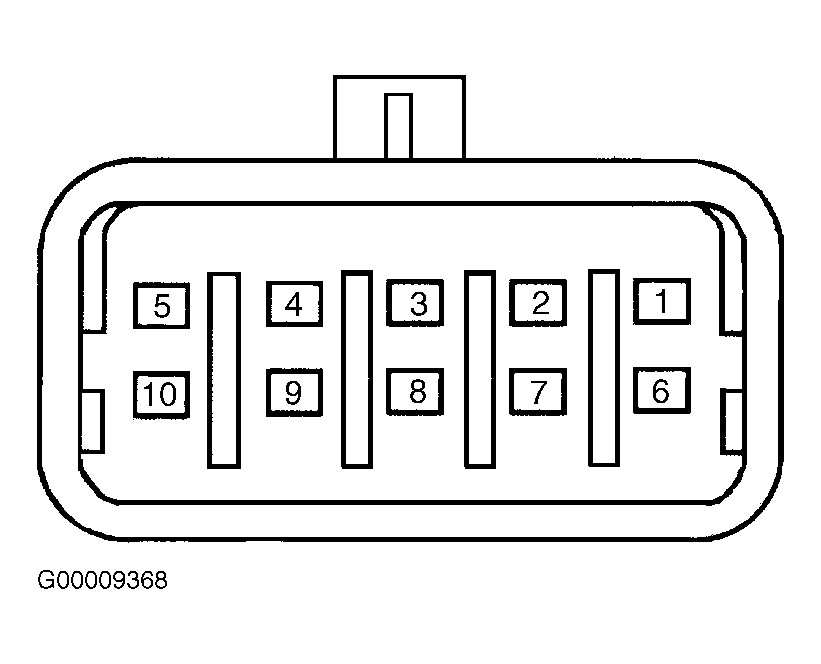

Fig 4: Identifying Connector C4035, C4036 & C4037 Terminals
G00009368Courtesy of FORD MOTOR CO.

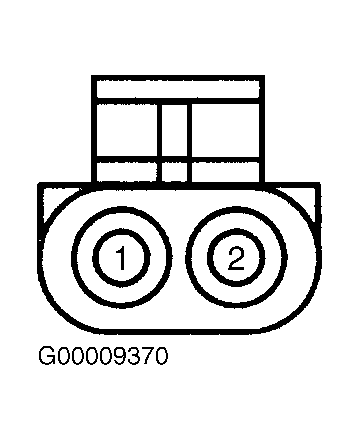

Fig 5: Identifying Connector C4016 Terminals
G00009370Courtesy of FORD MOTOR CO.

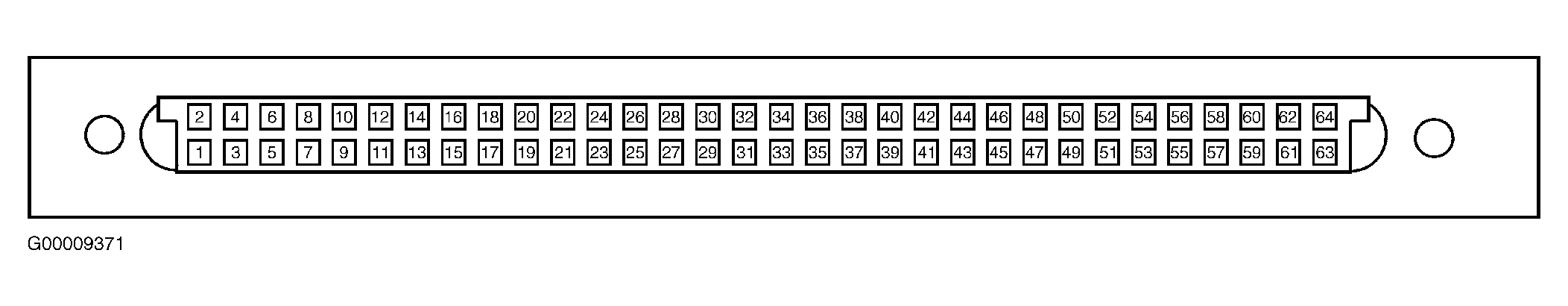

Fig 6: Identifying Compuvalve Connector C4025 Terminals
G00009371Courtesy of FORD MOTOR CO.

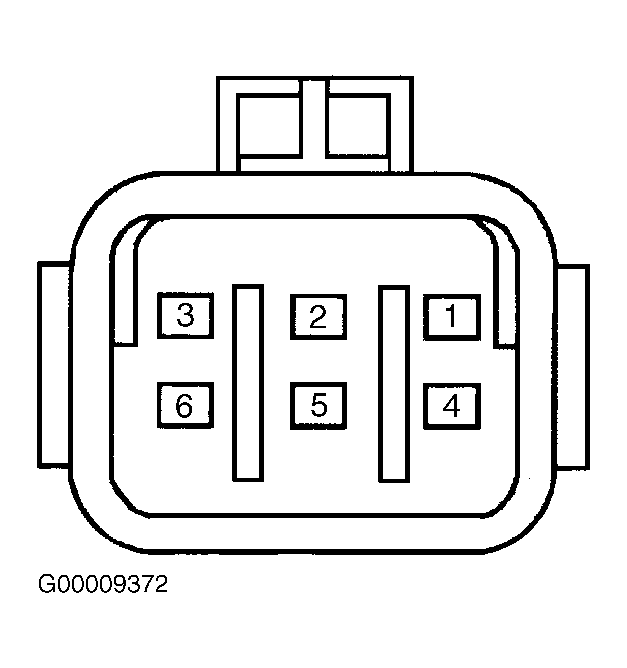

Fig 7: Identifying In-Line Harness Connector C4003, C4303, C4903 & C4904 Terminals
G00009372Courtesy of FORD MOTOR CO.
Fig 8: Identifying LPG Sender Relay Terminals
G98E12371Courtesy of FORD MOTOR CO.

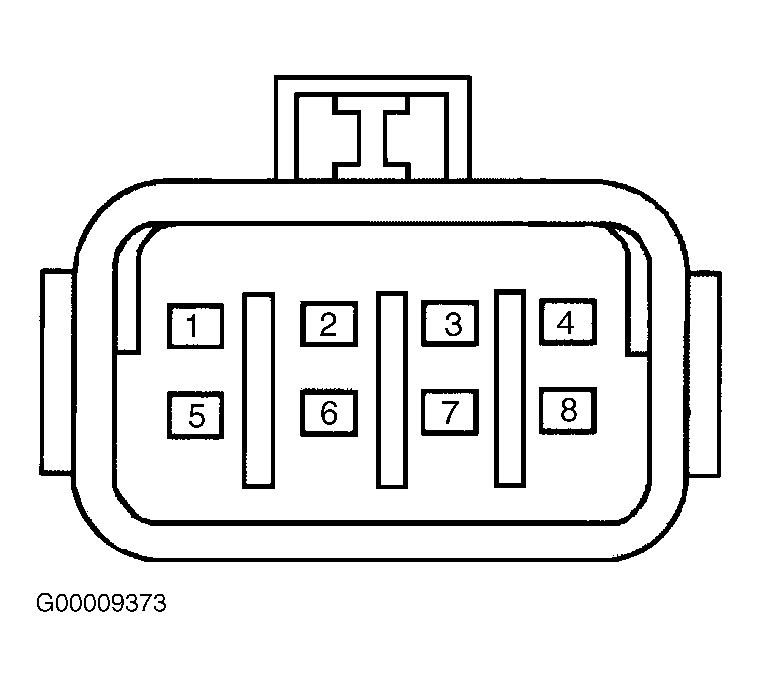

Fig 9: Identifying In-Line Harness Connector C4013, C4030 & C4036 Terminals
G00009373Courtesy of FORD MOTOR CO.

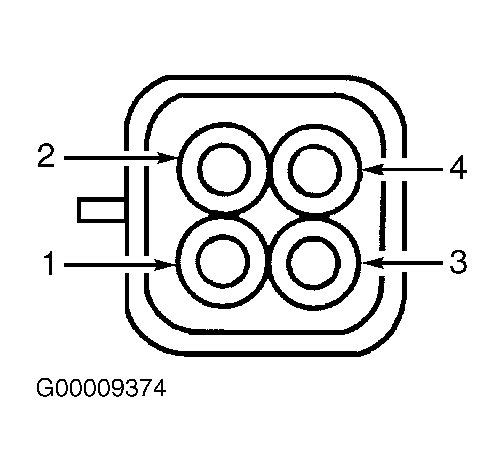

Fig 10: Identifying In-Line Harness Connector C4014 Terminals
G00009374Courtesy of FORD MOTOR CO.
Fig 11: Identifying In-Line Harness Connector C732 & C4420 Terminals
G98D01770Courtesy of FORD MOTOR CO.
Fig 12: Identifying HO2S11, HO2S21 Connectors & In-Line Connector C934 Terminals
G98E01718Courtesy of FORD MOTOR CO.

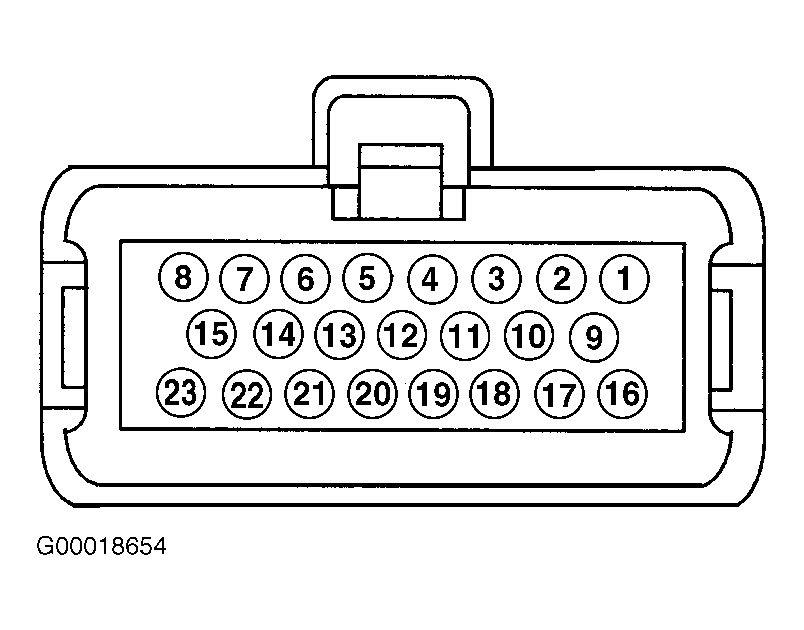

Fig 13: Identifying AFCM Harness Connector C4001 Terminals
G00018654Courtesy of FORD MOTOR CO.
