Vehicle Security Module C3008a

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

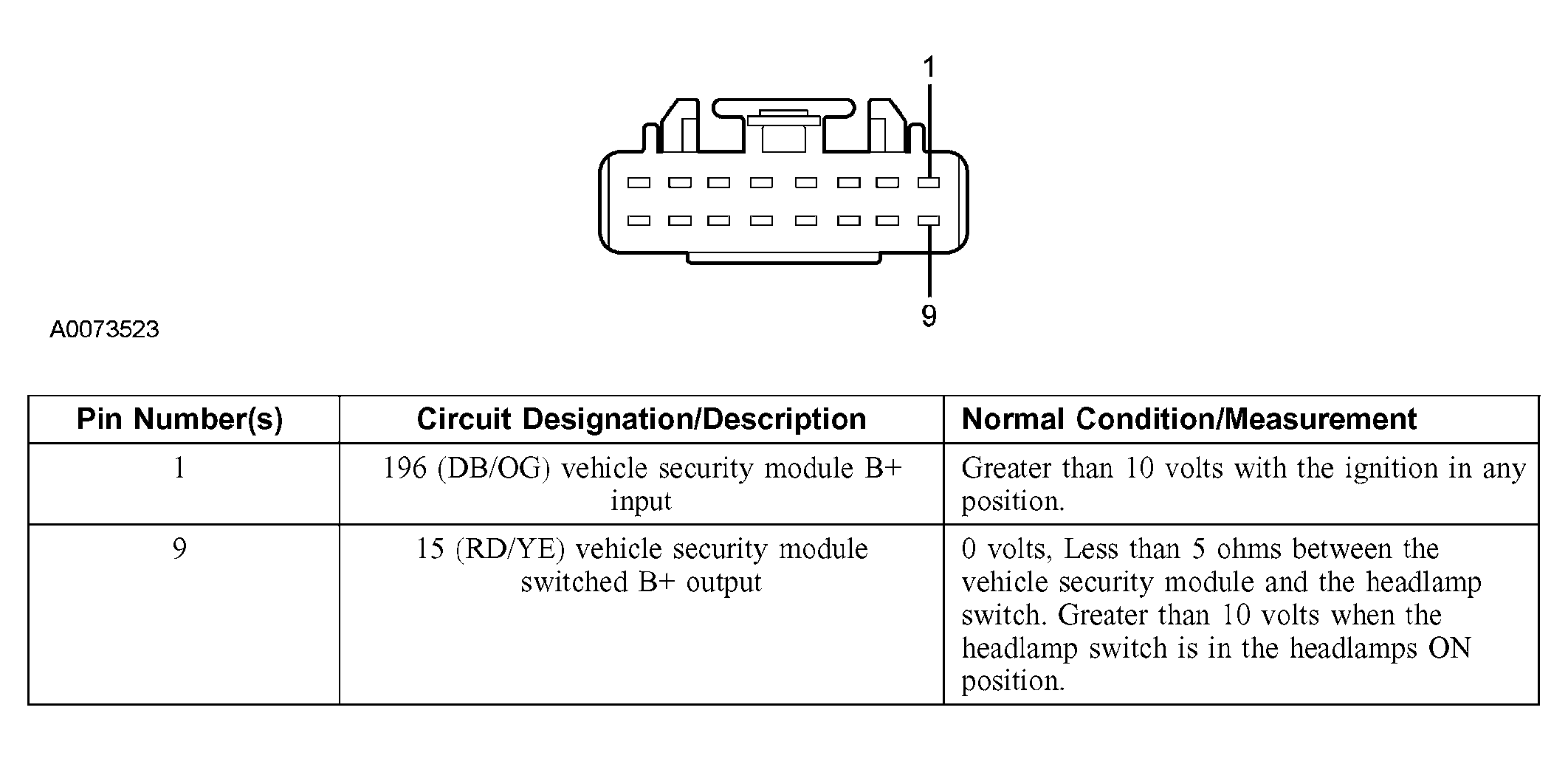

Fig 1: Identifying Vehicle Security Module C3008a Connector Pins
G03965655Courtesy of FORD MOTOR CO.
