Restraints Control Module (RCM): Installation
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

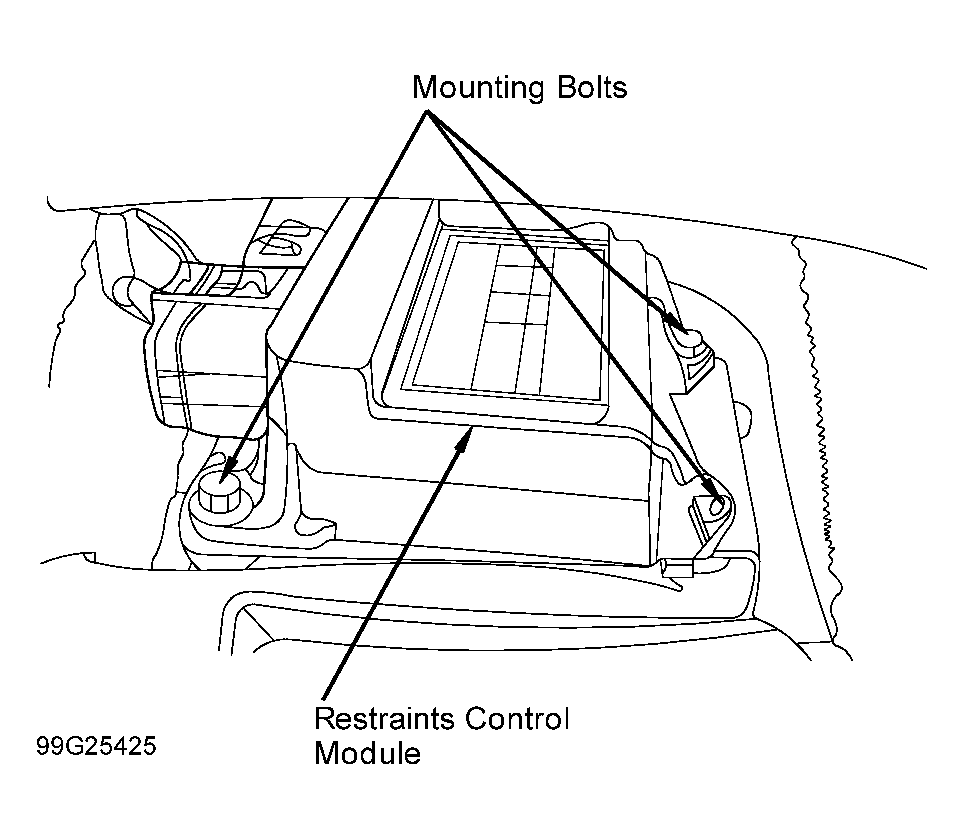

To install, reverse removal procedure. Tighten RCM mounting bolts to specification. See TORQUE SPECIFICATIONS . Connect negative battery cable. With air bag simulators installed at all deployable devices, perform system operation check. See SYSTEM OPERATION CHECK . Activate air bag system. See ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM.
