Connector Circuit Reference
WARNING:
This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

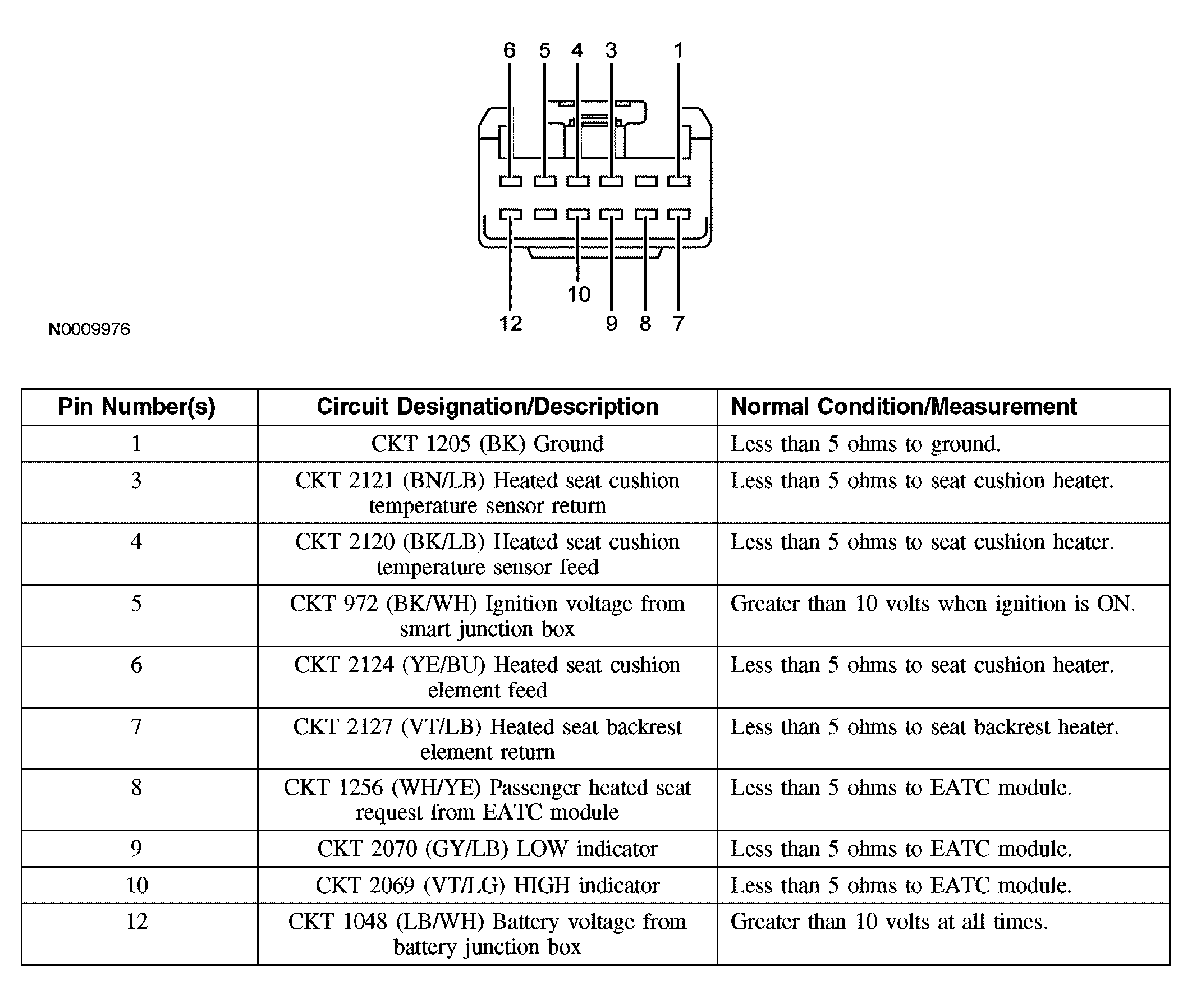

Fig 1: Identifying Passenger Heated Seat Module C329 Connector Circuit
Courtesy of FORD MOTOR CO.

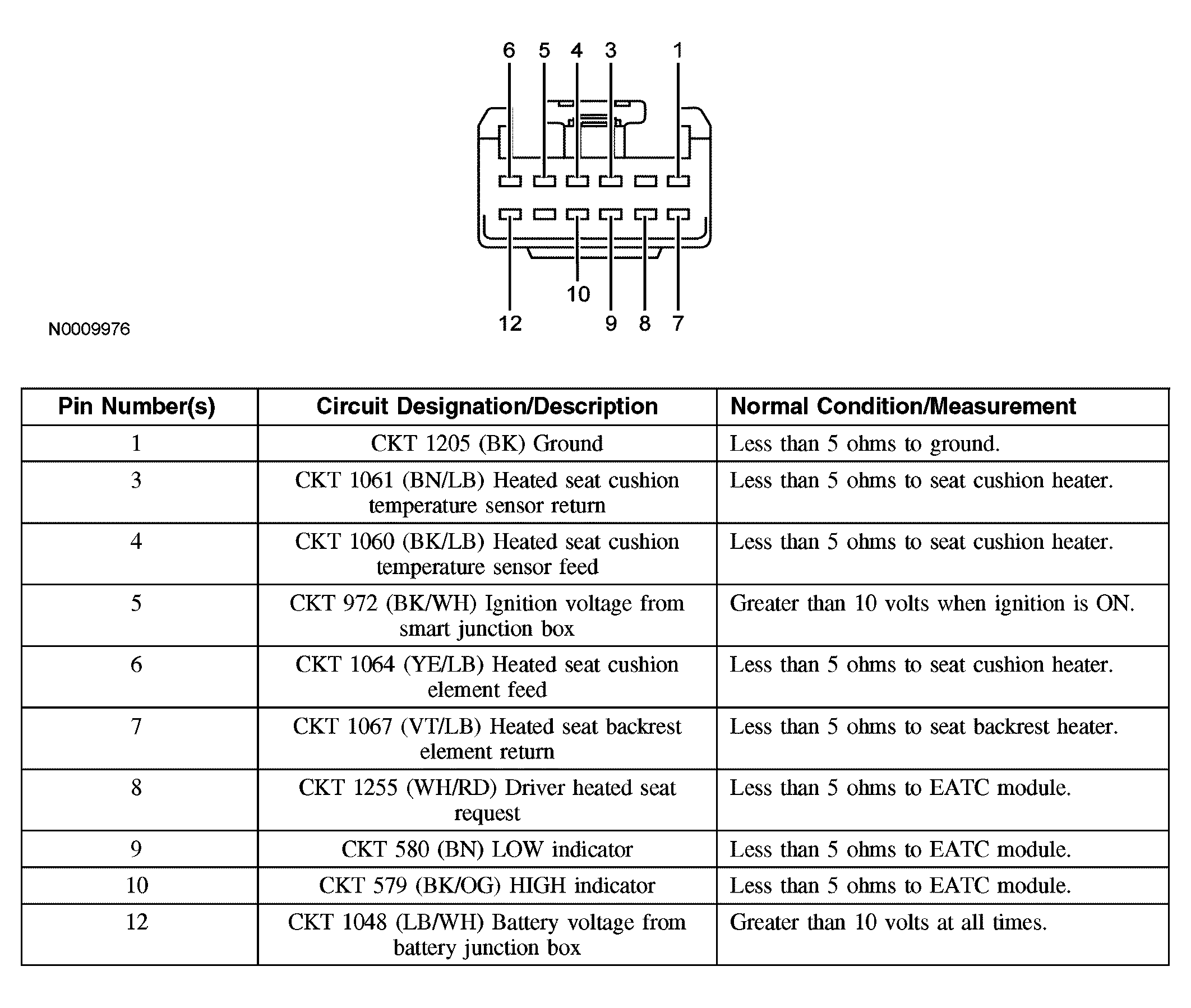

Fig 2: Identifying Driver Heated Seat Module C359 Connector Circuit
Courtesy of FORD MOTOR CO.

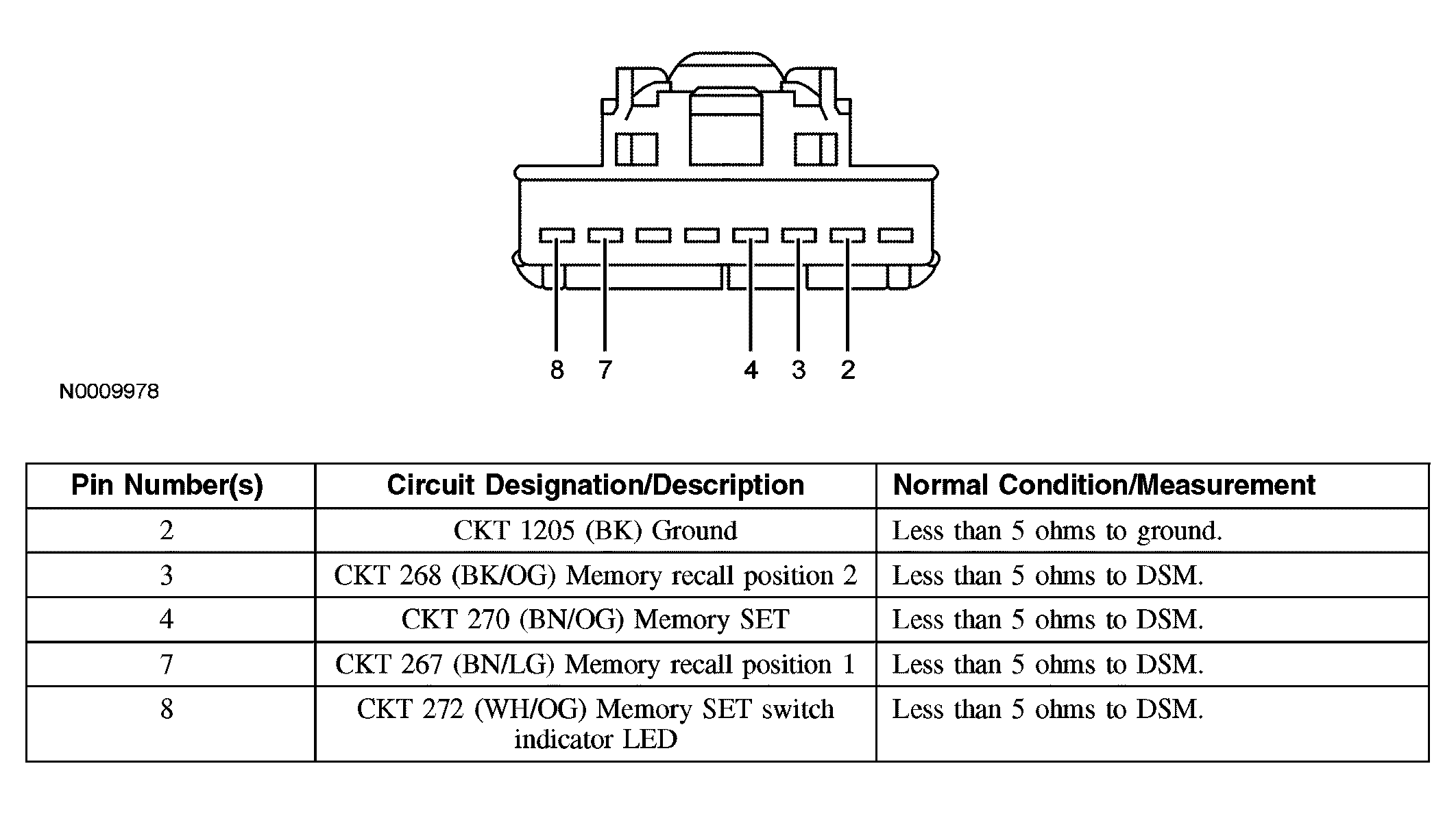

Fig 3: Identifying Memory Set Switch C503 Connector Circuit
Courtesy of FORD MOTOR CO.

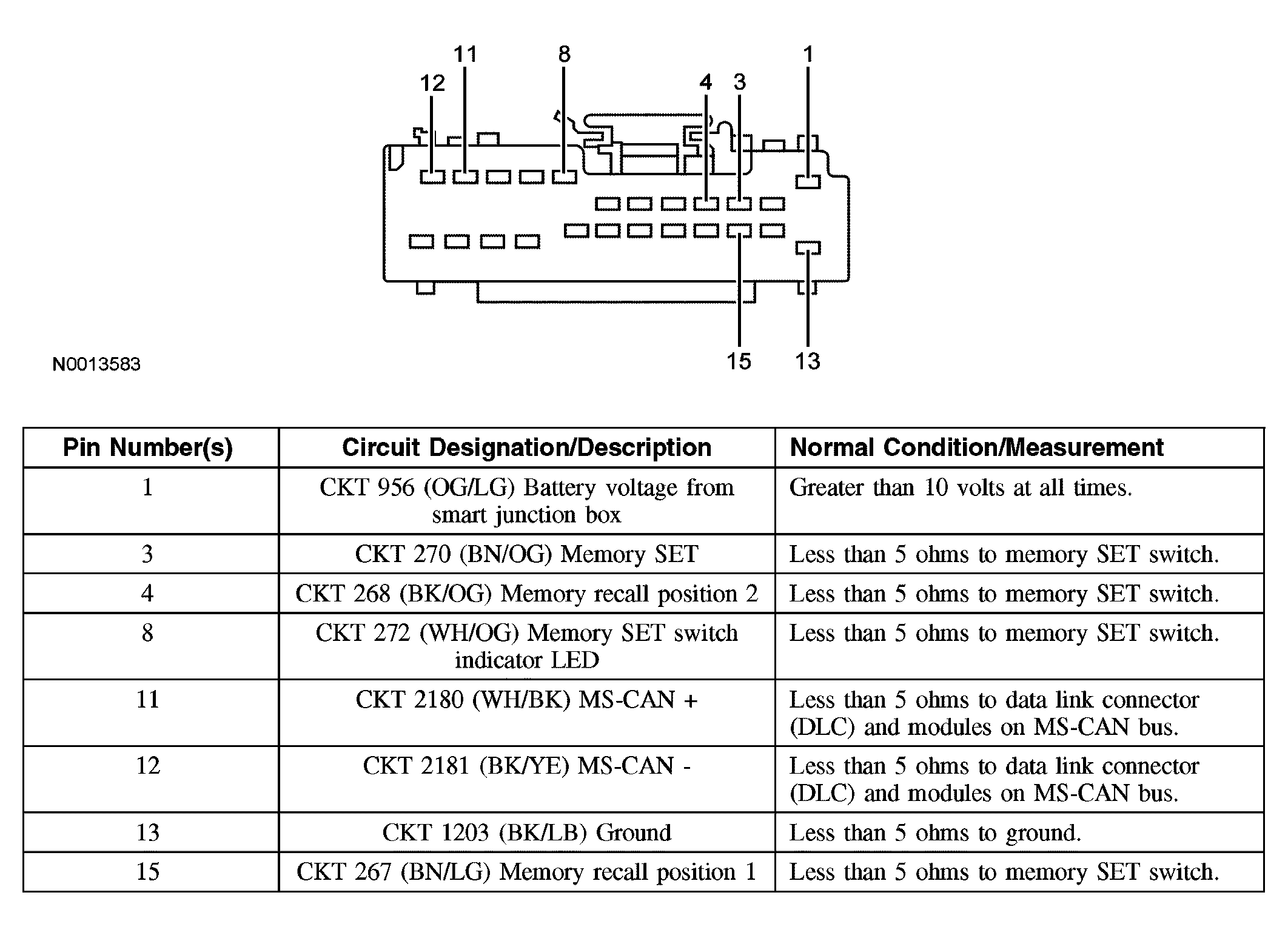

Fig 4: Identifying Driver Seat Module (DSM) C341A Connector Circuit
Courtesy of FORD MOTOR CO.

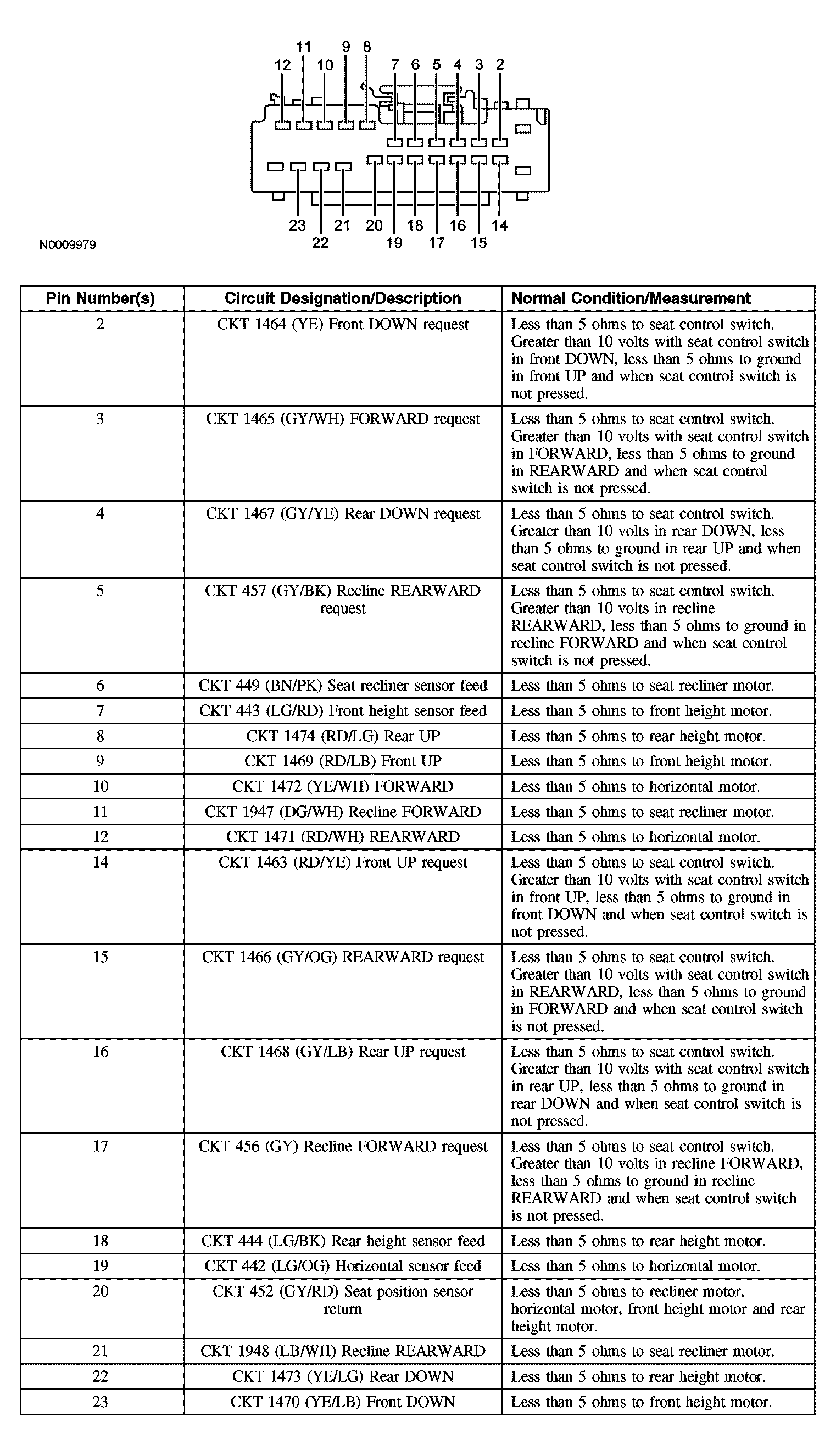

Fig 5: Identifying Driver Seat Module (DSM) C341B Connector Circuit
Courtesy of FORD MOTOR CO.

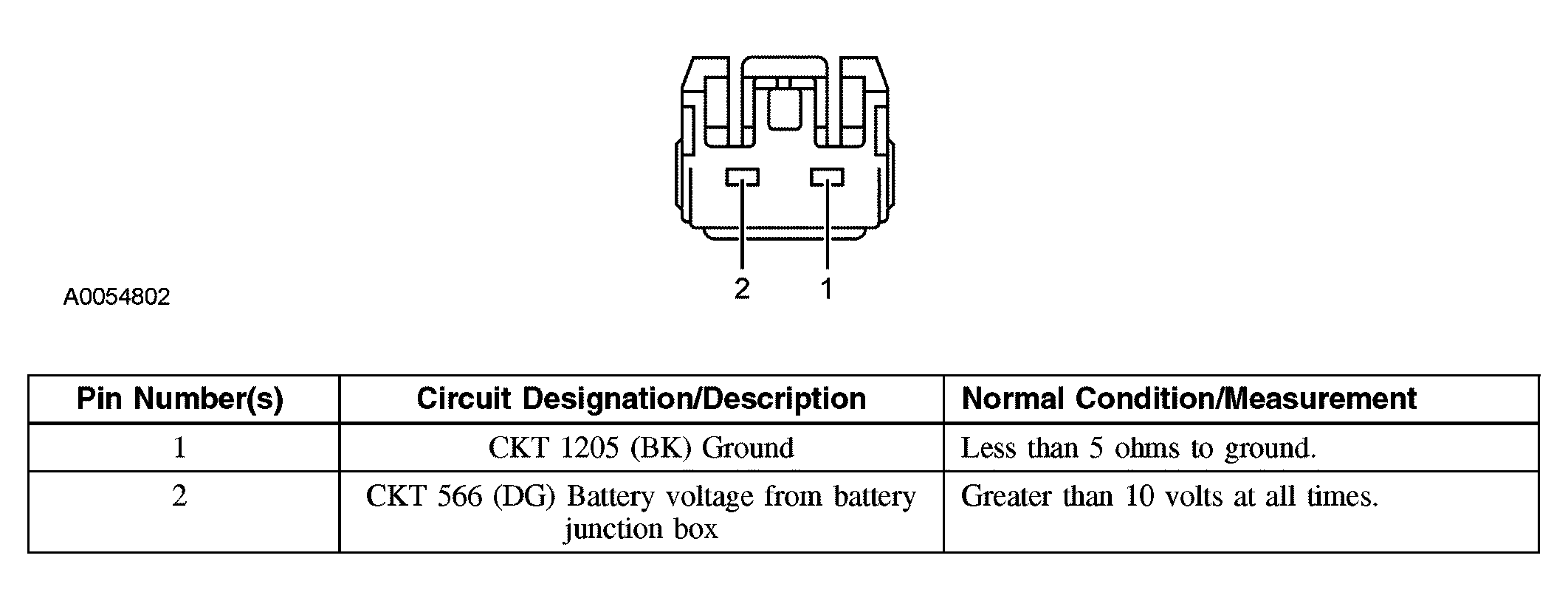

Fig 6: Identifying Driver Seat Module (DSM) C341C Connector Circuit
Courtesy of FORD MOTOR CO.

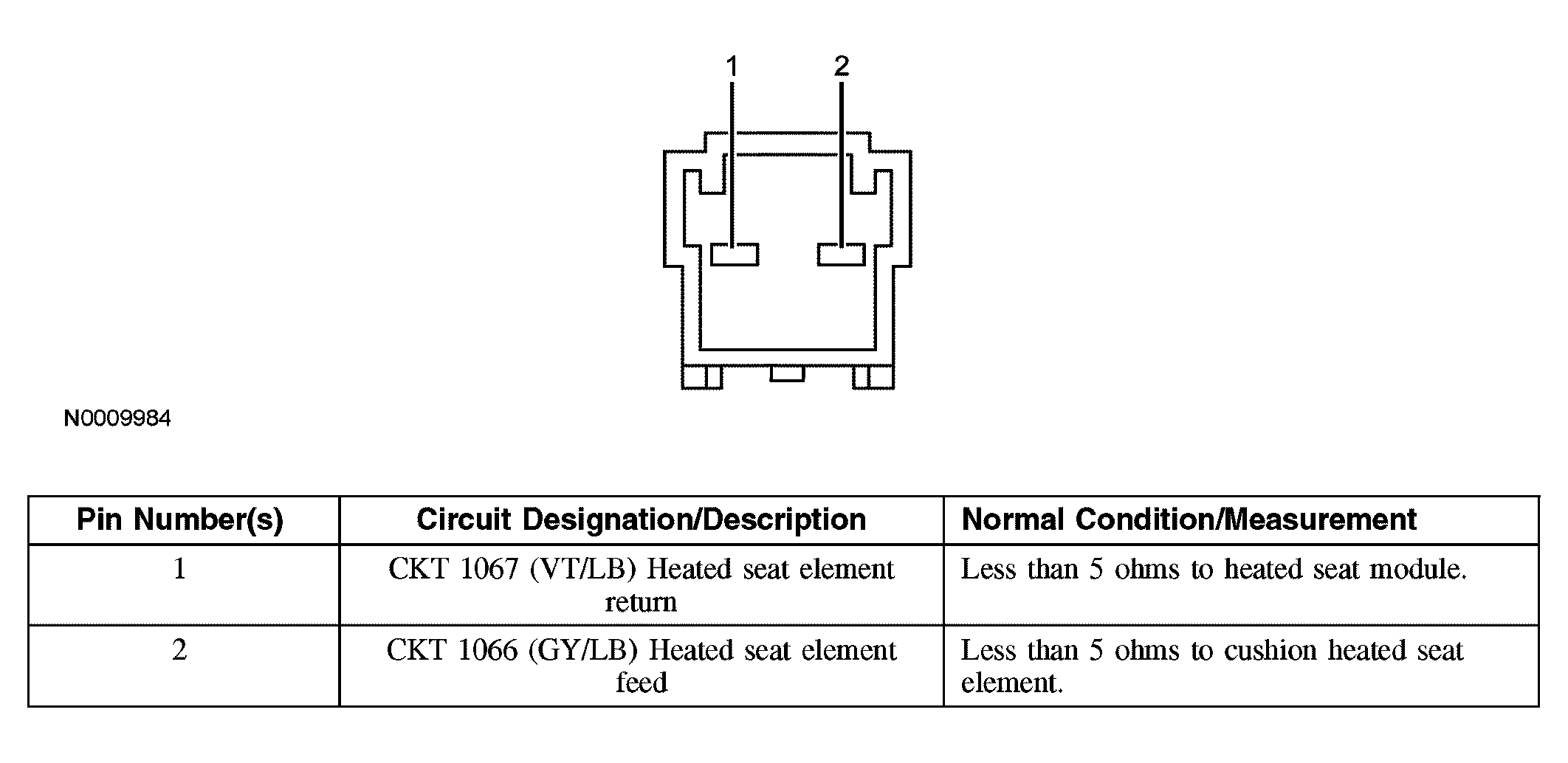

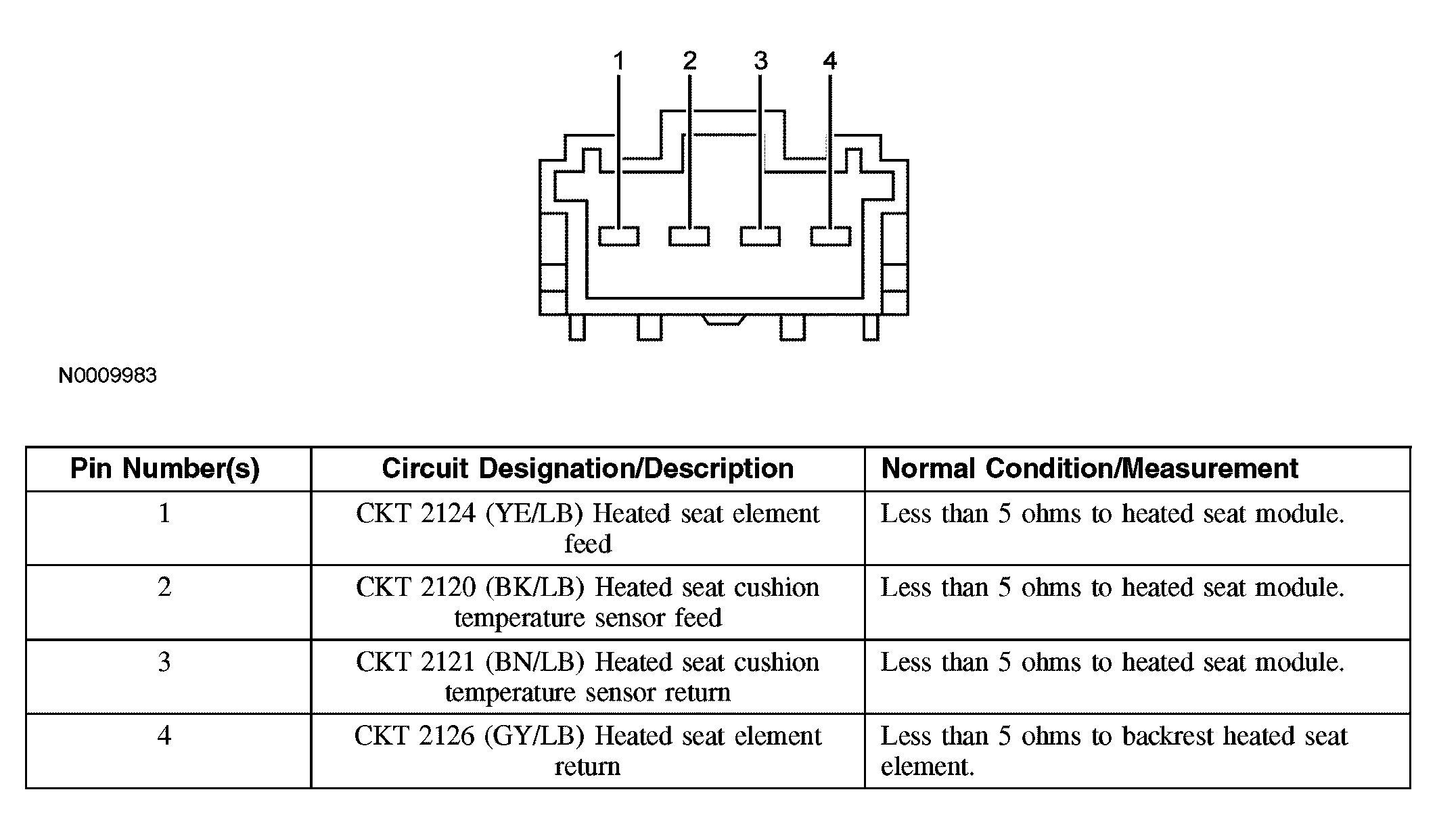

Fig 7: Identifying Driver Seat Cushion Heated Seat Element C364 Connector Circuit
Courtesy of FORD MOTOR CO.
Fig 8: Identifying Driver Seat Backrest Heated Seat Element C365 Connector Circuit
Courtesy of FORD MOTOR CO.
Fig 9: Identifying Passenger Seat Cushion Heated Seat Element C334 Connector Circuit
Courtesy of FORD MOTOR CO.
Fig 10: Identifying Passenger Seat Backrest Heated Seat Element C335 Connector Circuit
Courtesy of FORD MOTOR CO.
Fig 11: Identifying Driver Seat Front Height Motor - With Memory C382 Connector Circuit
Courtesy of FORD MOTOR CO.
Fig 12: Identifying Driver Seat Front Height Motor - Without Memory C382 Connector Circuit
Courtesy of FORD MOTOR CO.

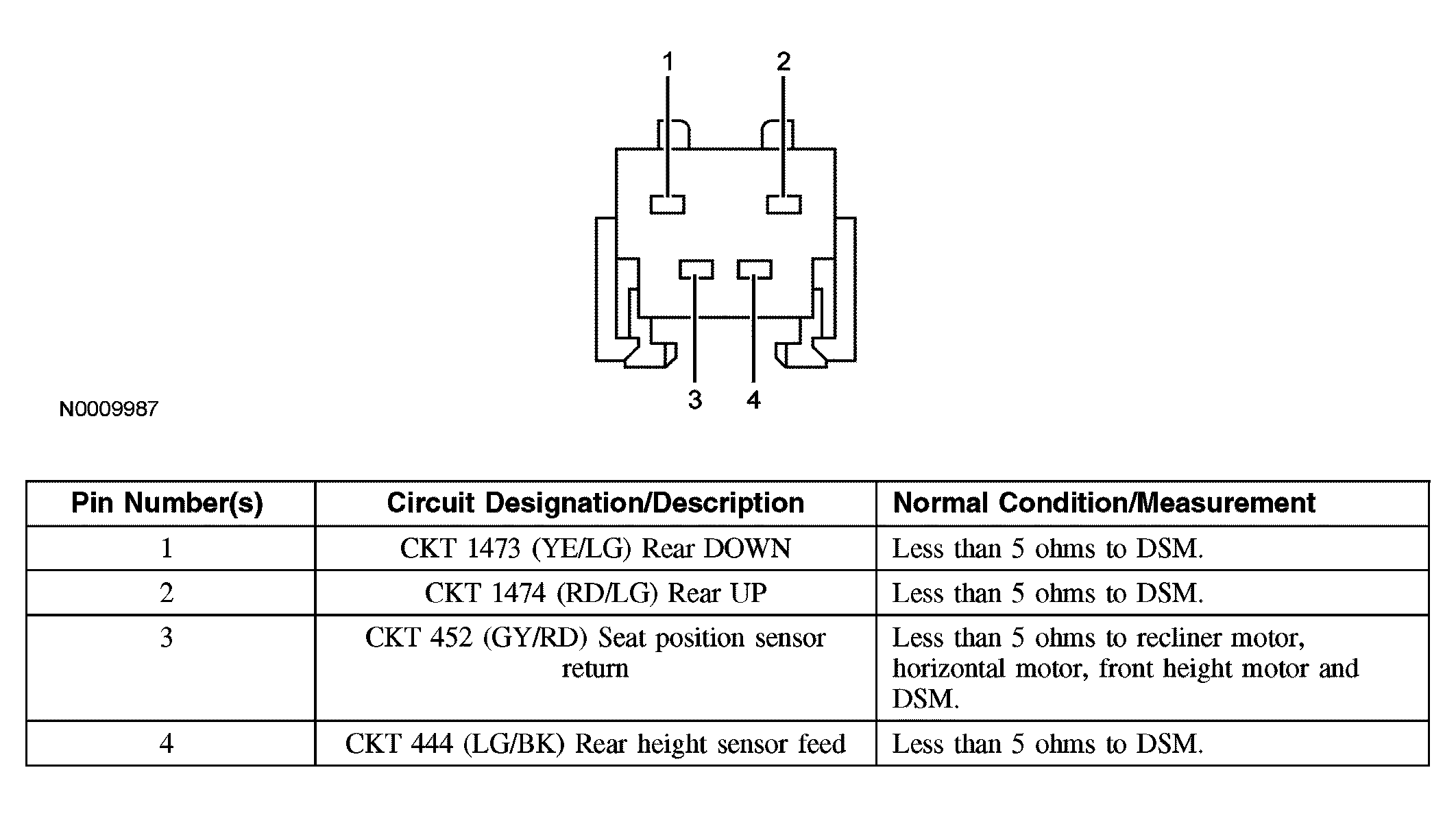

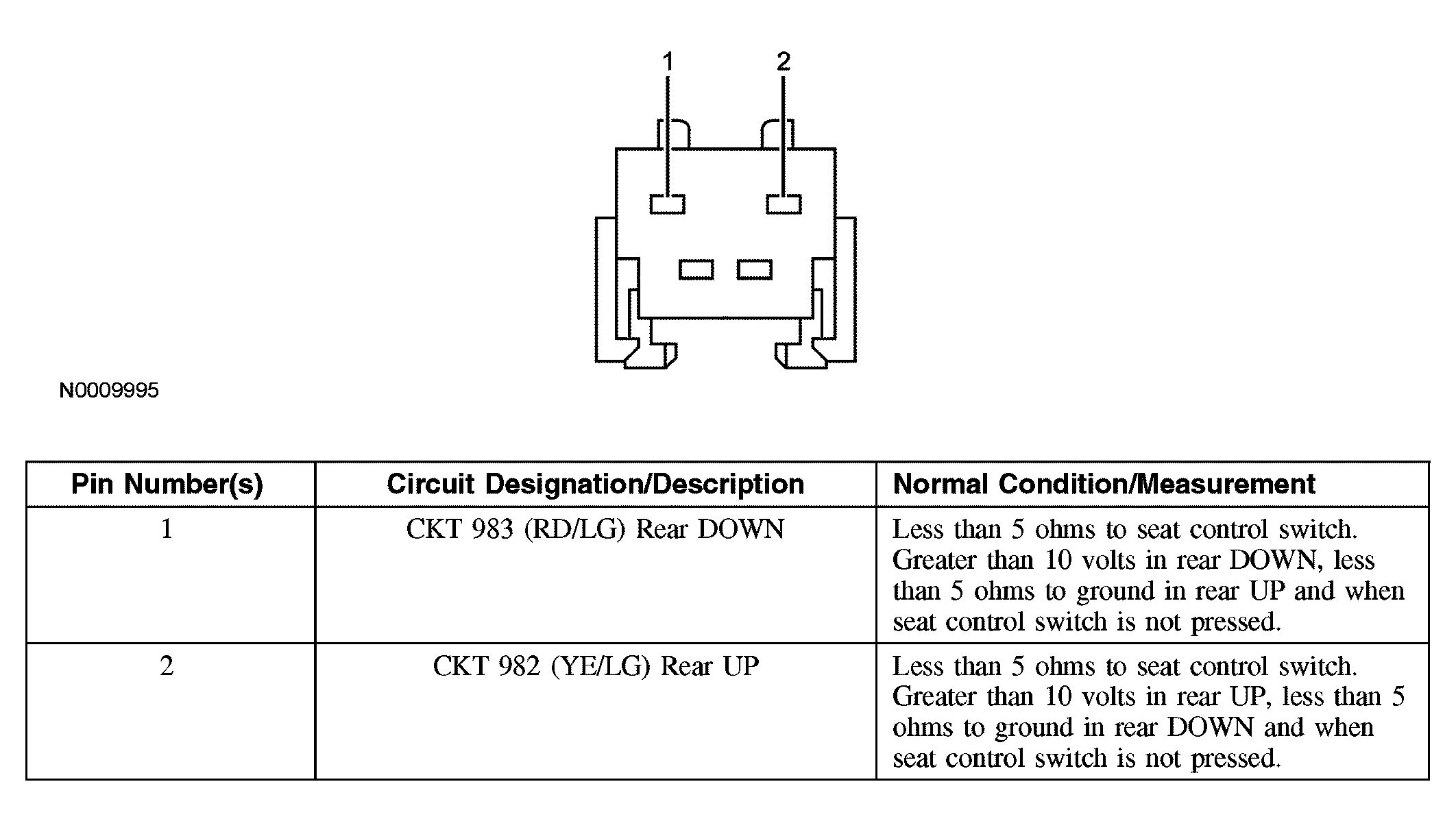

Fig 13: Identifying Driver Seat Rear Height Motor - With Memory C363 Connector Circuit
Courtesy of FORD MOTOR CO.
Fig 14: Identifying Driver Seat Rear Height Motor - Without Memory C363 Connector Circuit
Courtesy of FORD MOTOR CO.

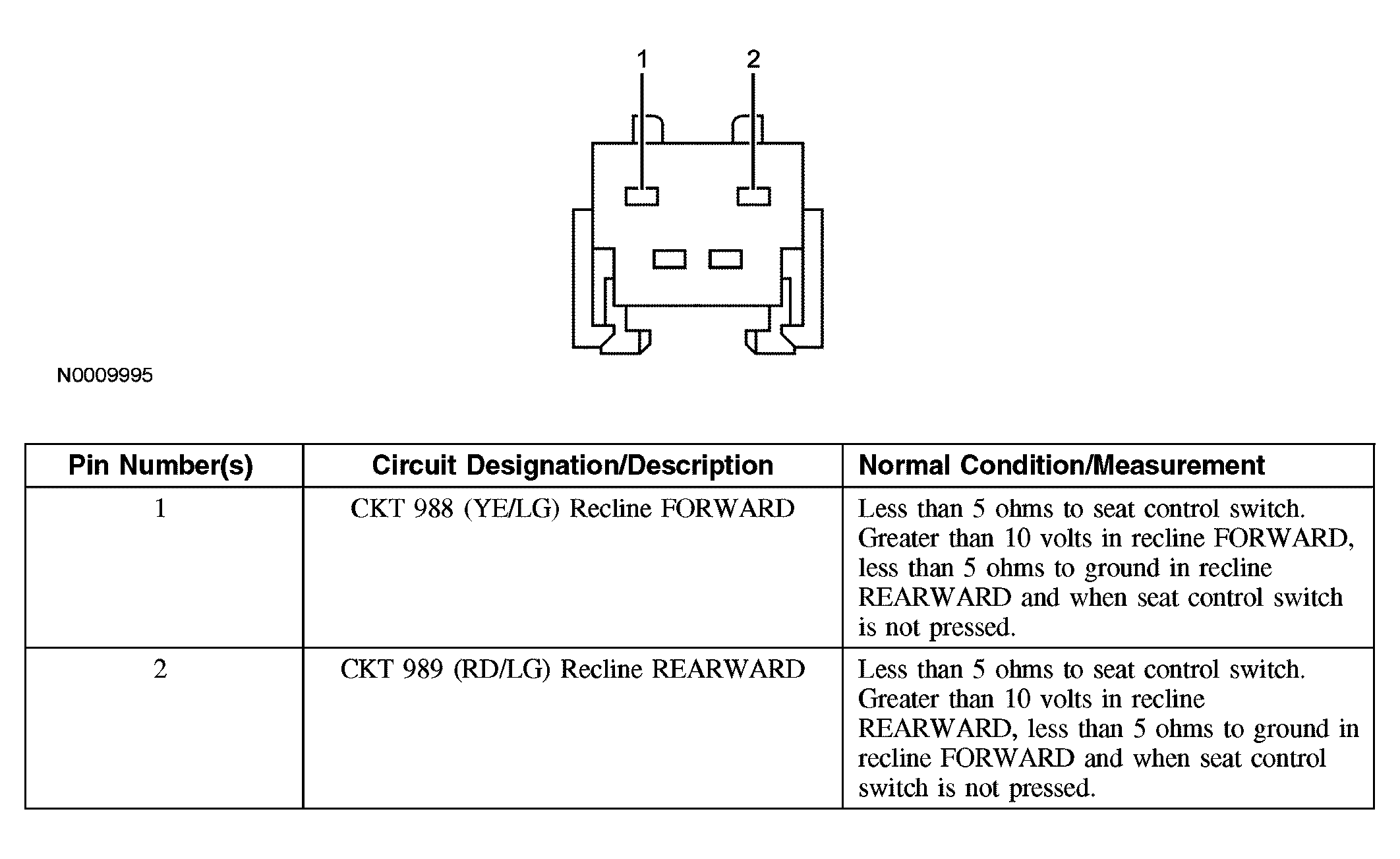

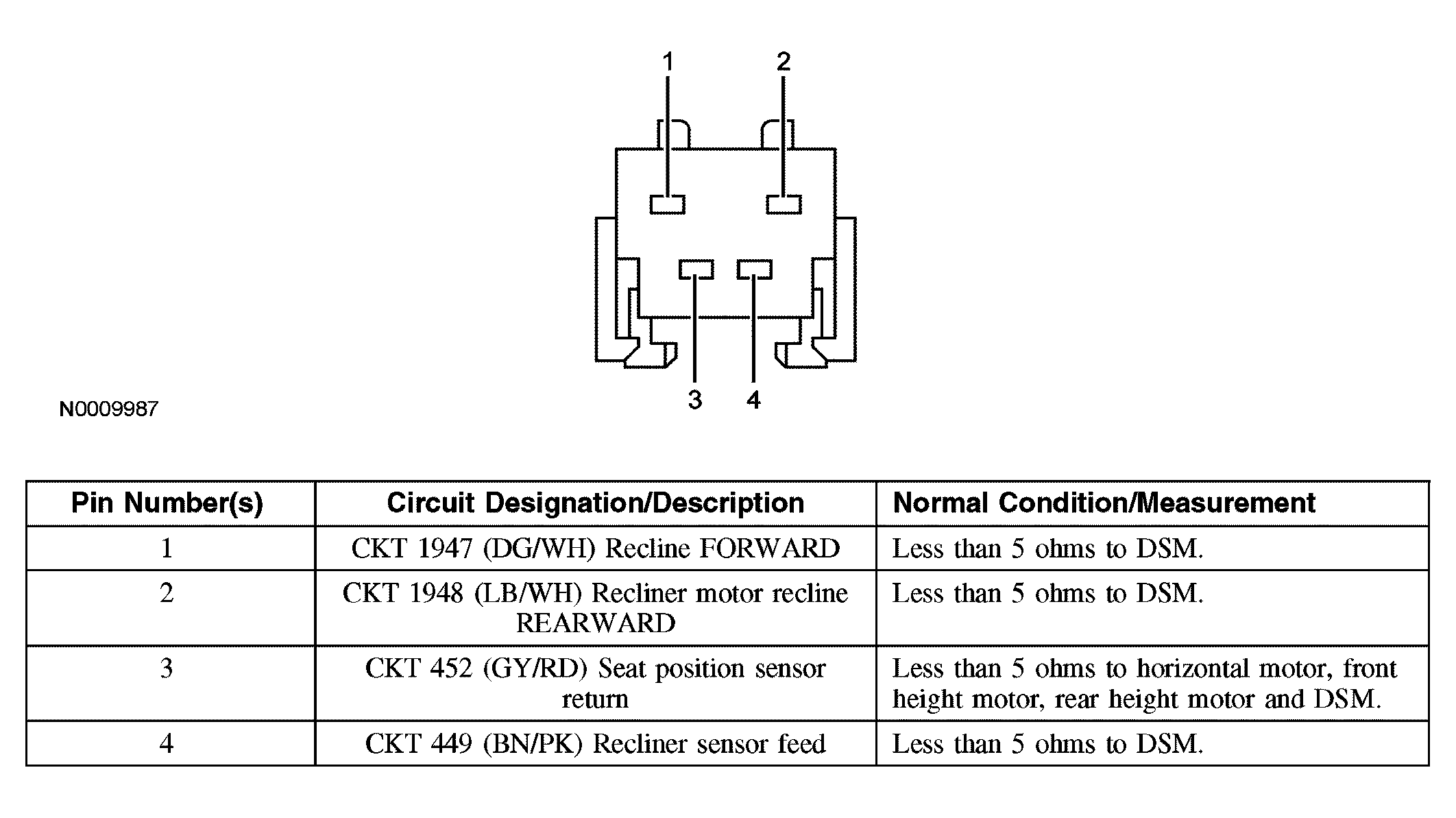

Fig 15: Identifying Driver Seat Recliner Motor - With Memory C3187 Connector Circuit
Courtesy of FORD MOTOR CO.
Fig 16: Identifying Driver Seat Recliner Motor - Without Memory C3187 Connector Circuit
Courtesy of FORD MOTOR CO.

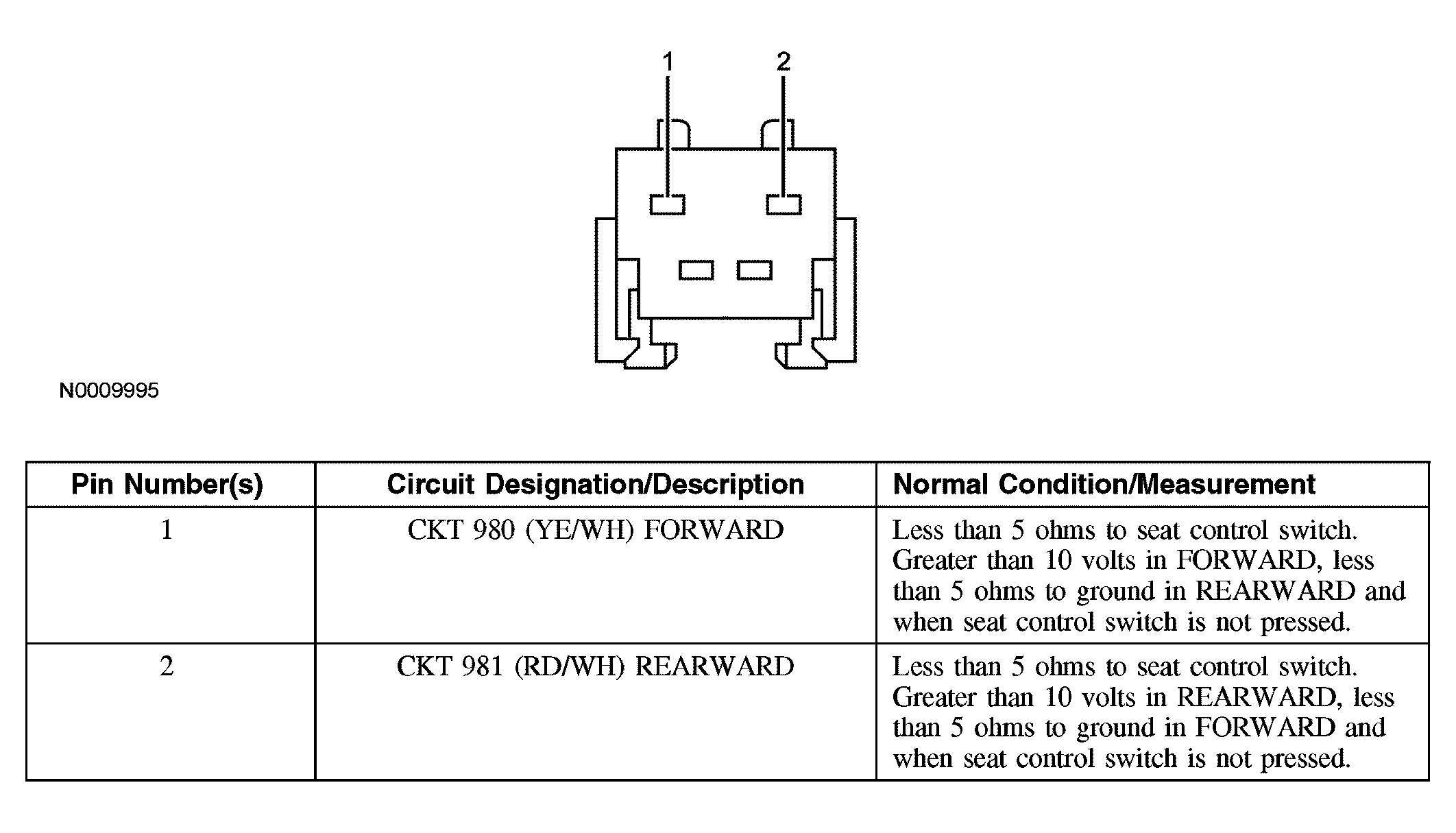

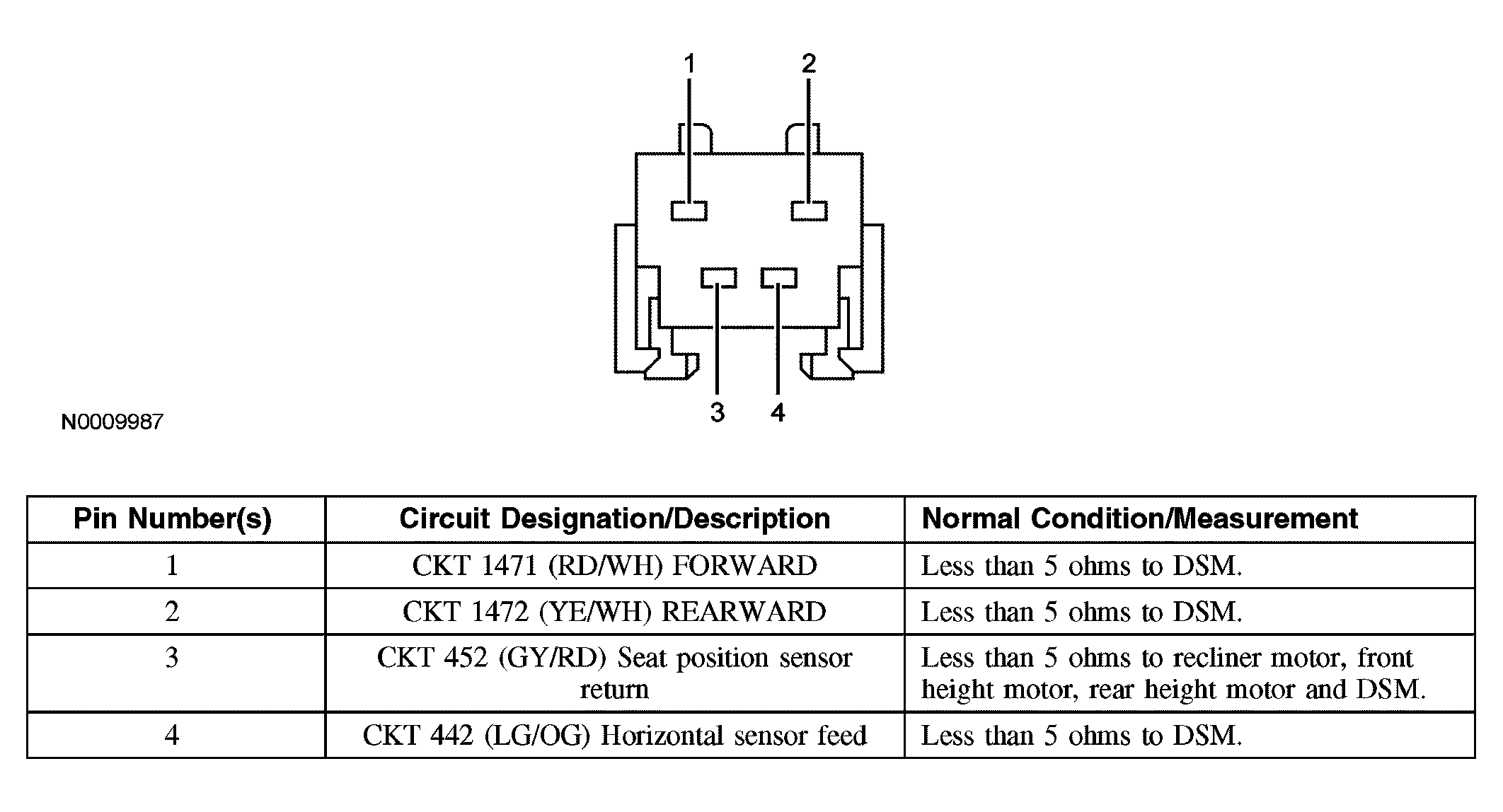

Fig 17: Identifying Driver Seat Horizontal Motor - With Memory C362 Connector Circuit
Courtesy of FORD MOTOR CO.
Fig 18: Identifying Driver Seat Horizontal Motor - Without Memory C362 Connector Circuit
Courtesy of FORD MOTOR CO.

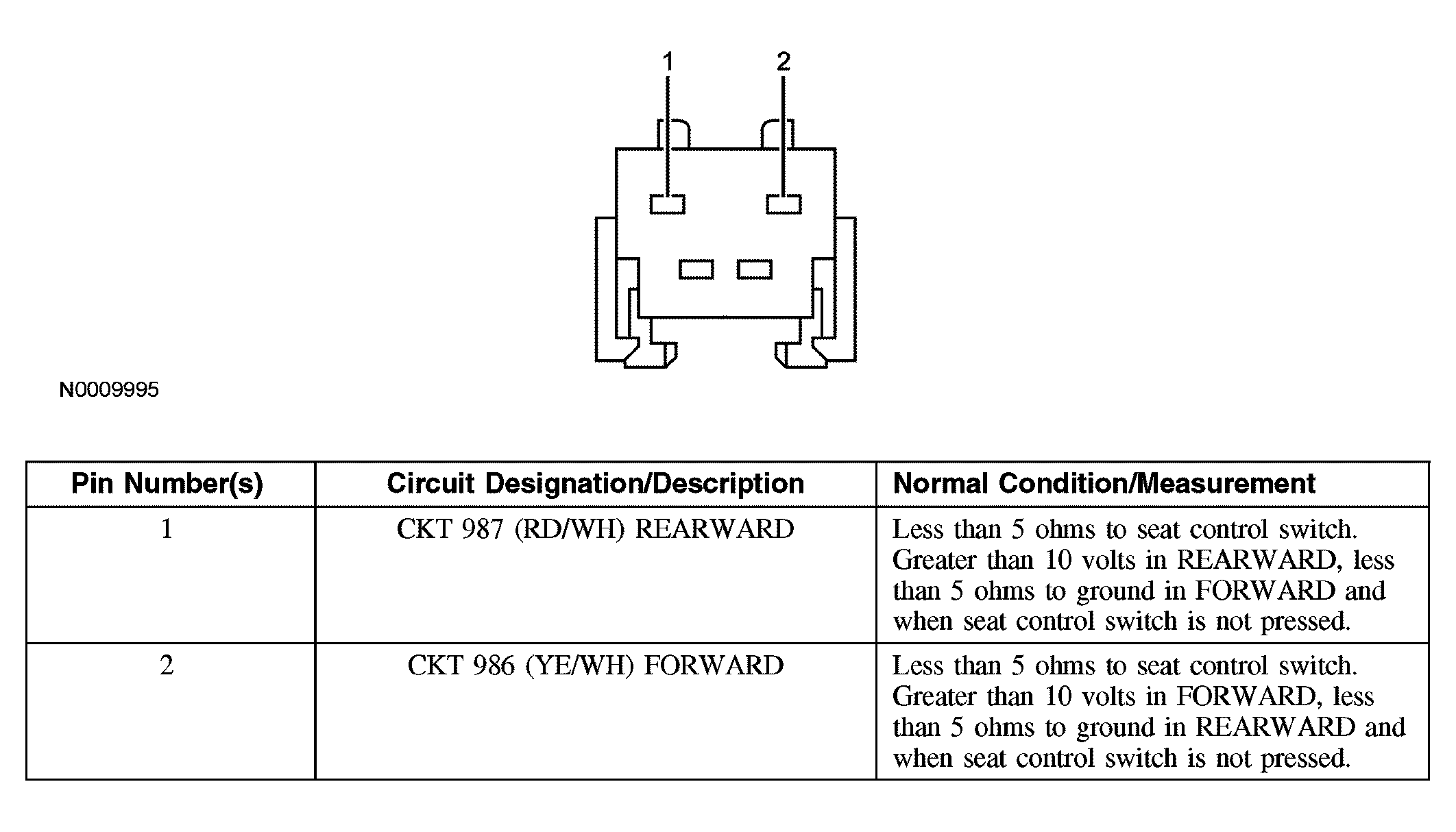

Fig 19: Identifying Passenger Seat Horizontal Motor C332 Connector Circuit
Courtesy of FORD MOTOR CO.
Fig 20: Identifying Passenger Seat Recliner Motor C3189 Connector Circuit
Courtesy of FORD MOTOR CO.

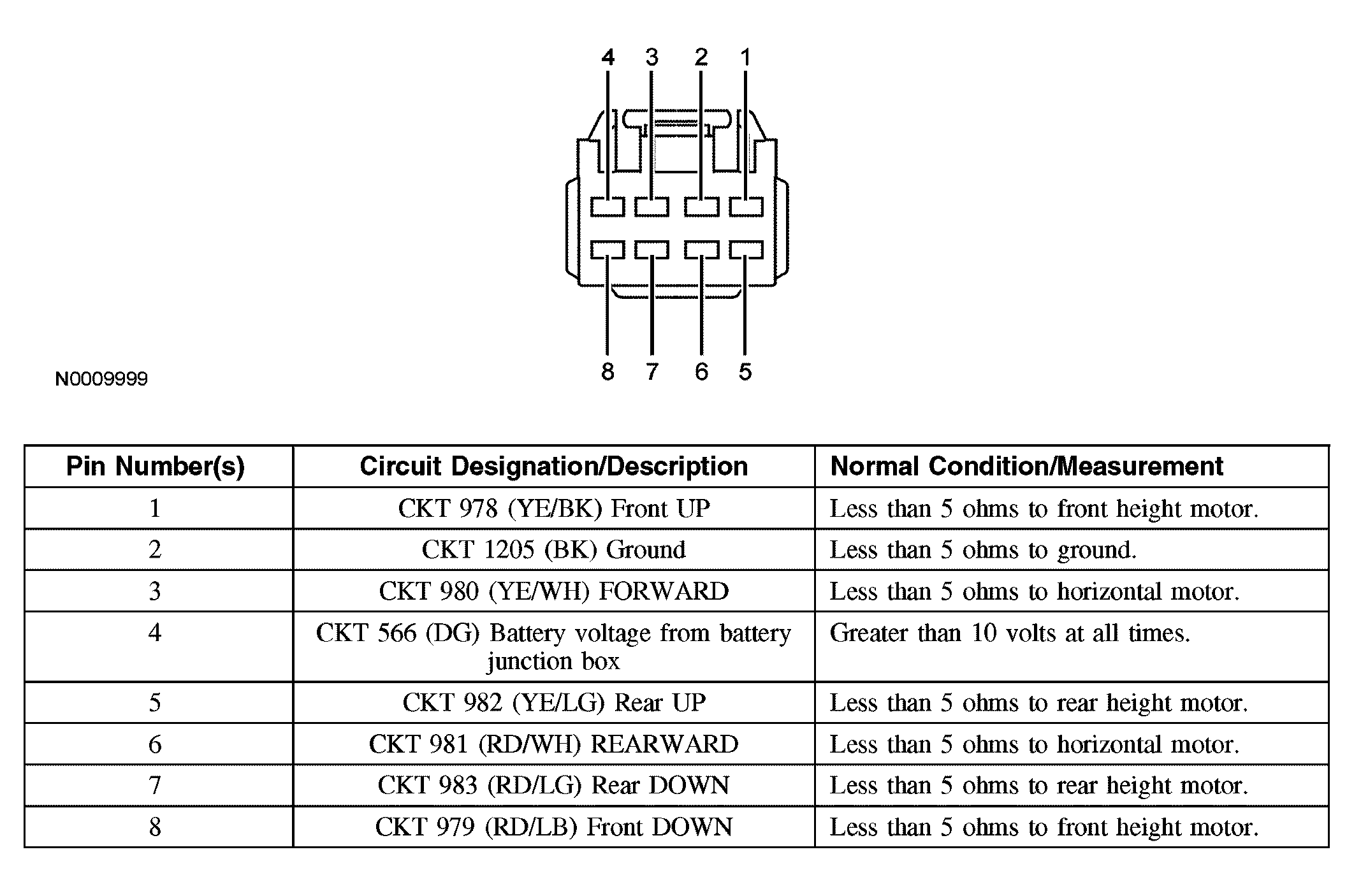

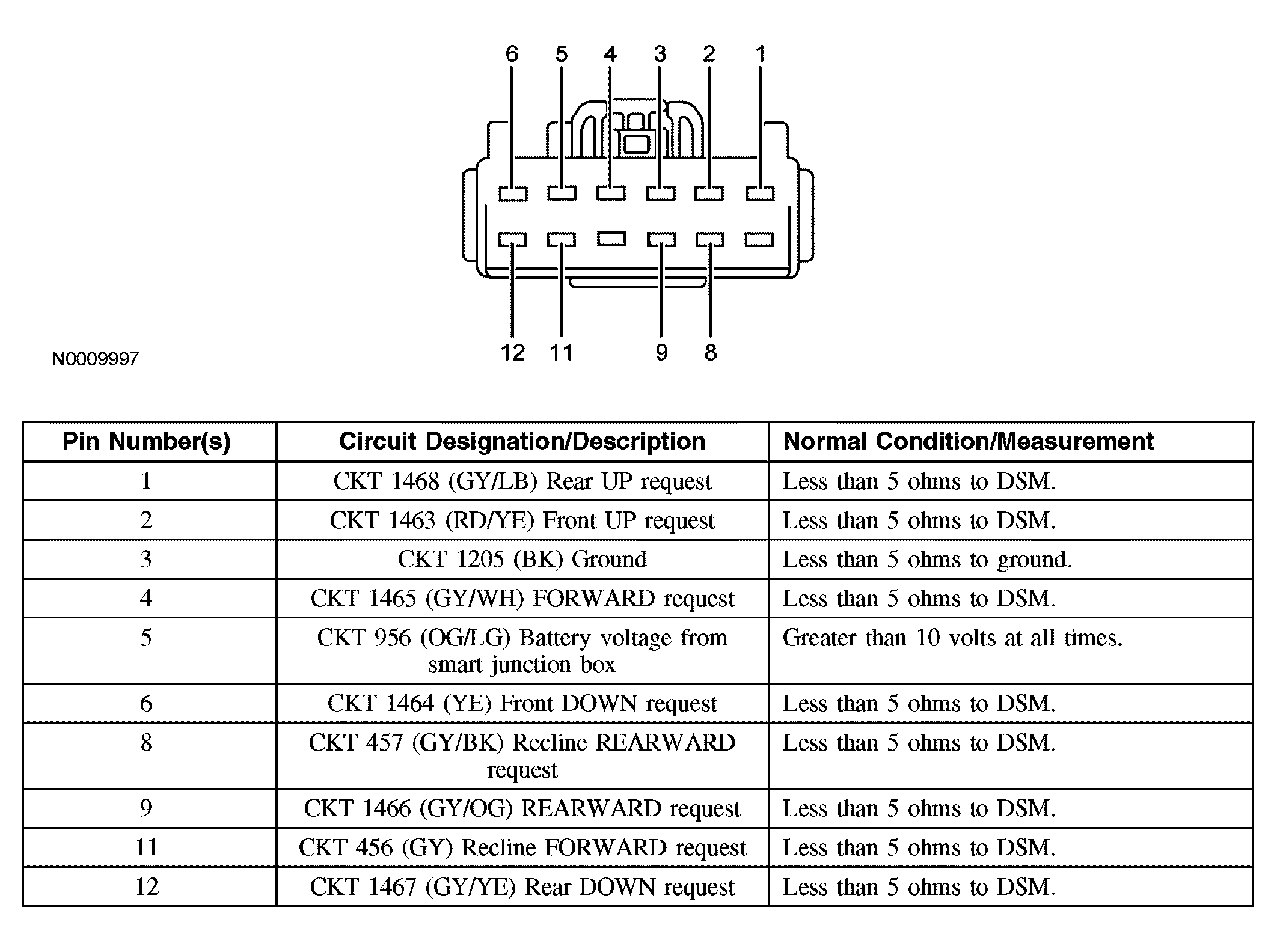

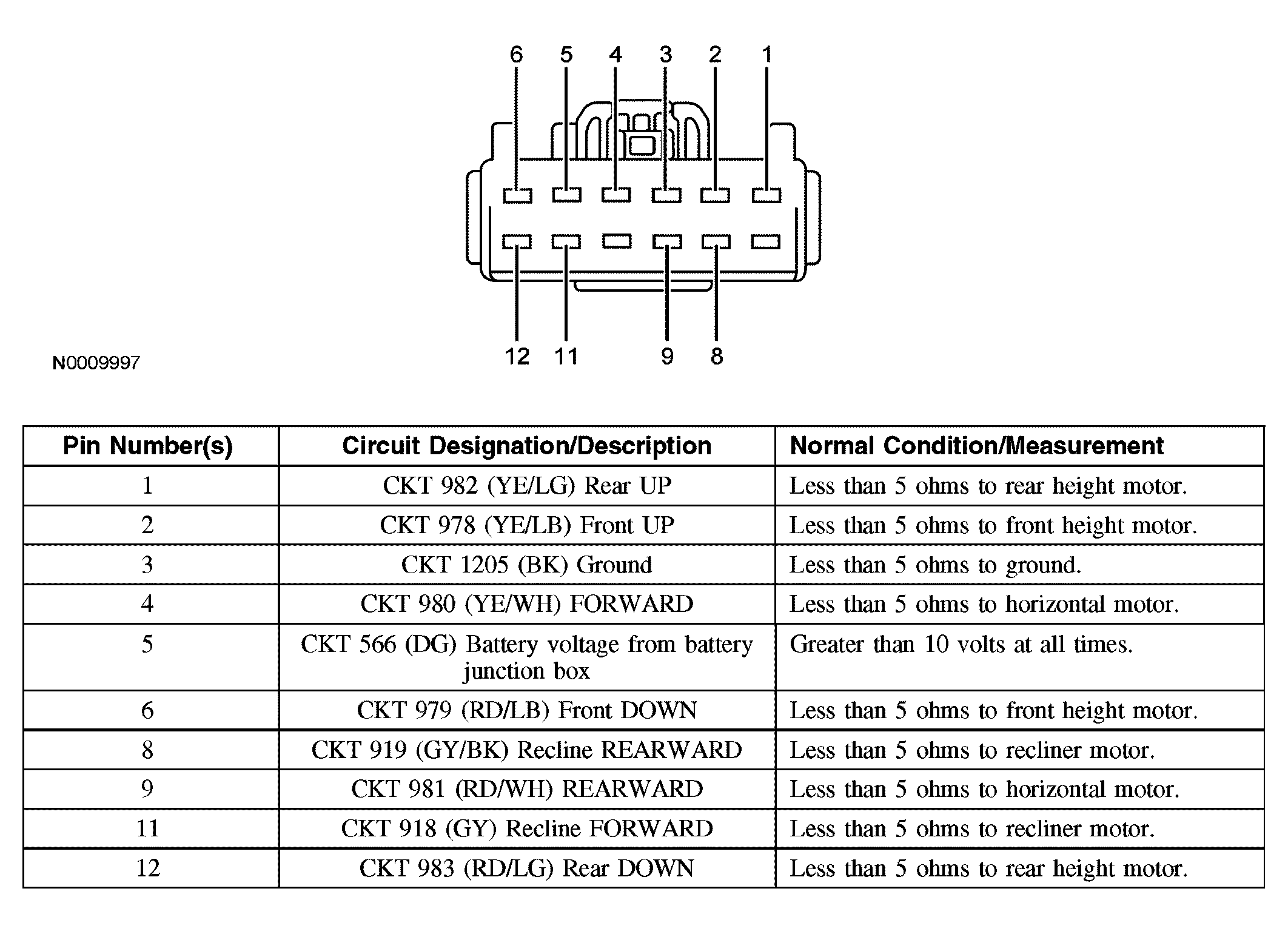

Fig 21: Identifying Driver Seat Control Switch - With Memory C369 Connector Circuit
Courtesy of FORD MOTOR CO.

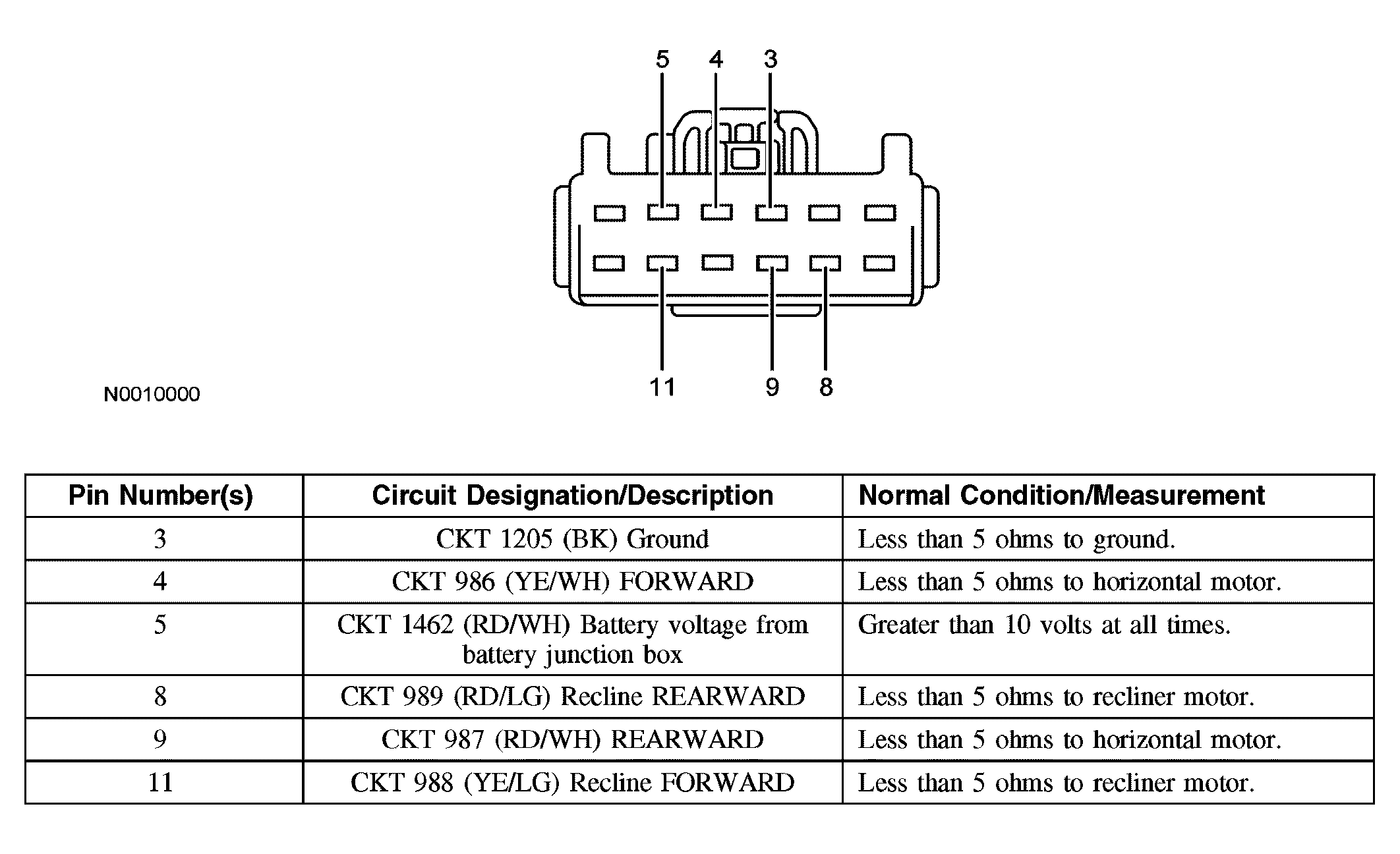

Fig 22: Identifying Driver Seat Control Switch - With Recline C369 Connector Circuit
Courtesy of FORD MOTOR CO.

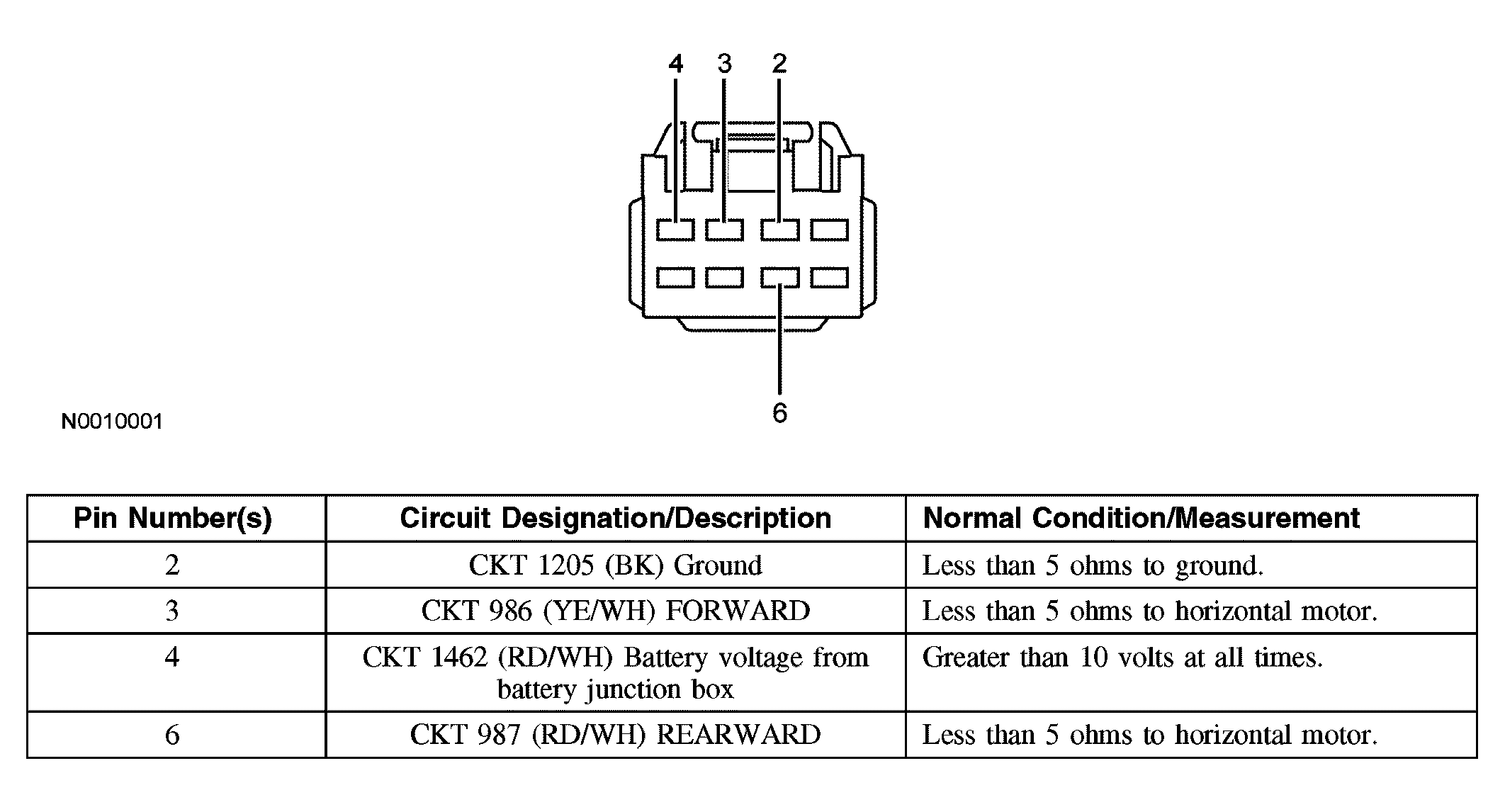

Fig 23: Identifying Driver Seat Control Switch - Without Recline C360 Connector Circuit
Courtesy of FORD MOTOR CO.
Fig 24: Identifying Passenger Seat Control Switch - With Recline C330 Connector Circuit
Courtesy of FORD MOTOR CO.
Fig 25: Identifying Passenger Seat Control Switch - Without Recline C3190 Connector Circuit
Courtesy of FORD MOTOR CO.

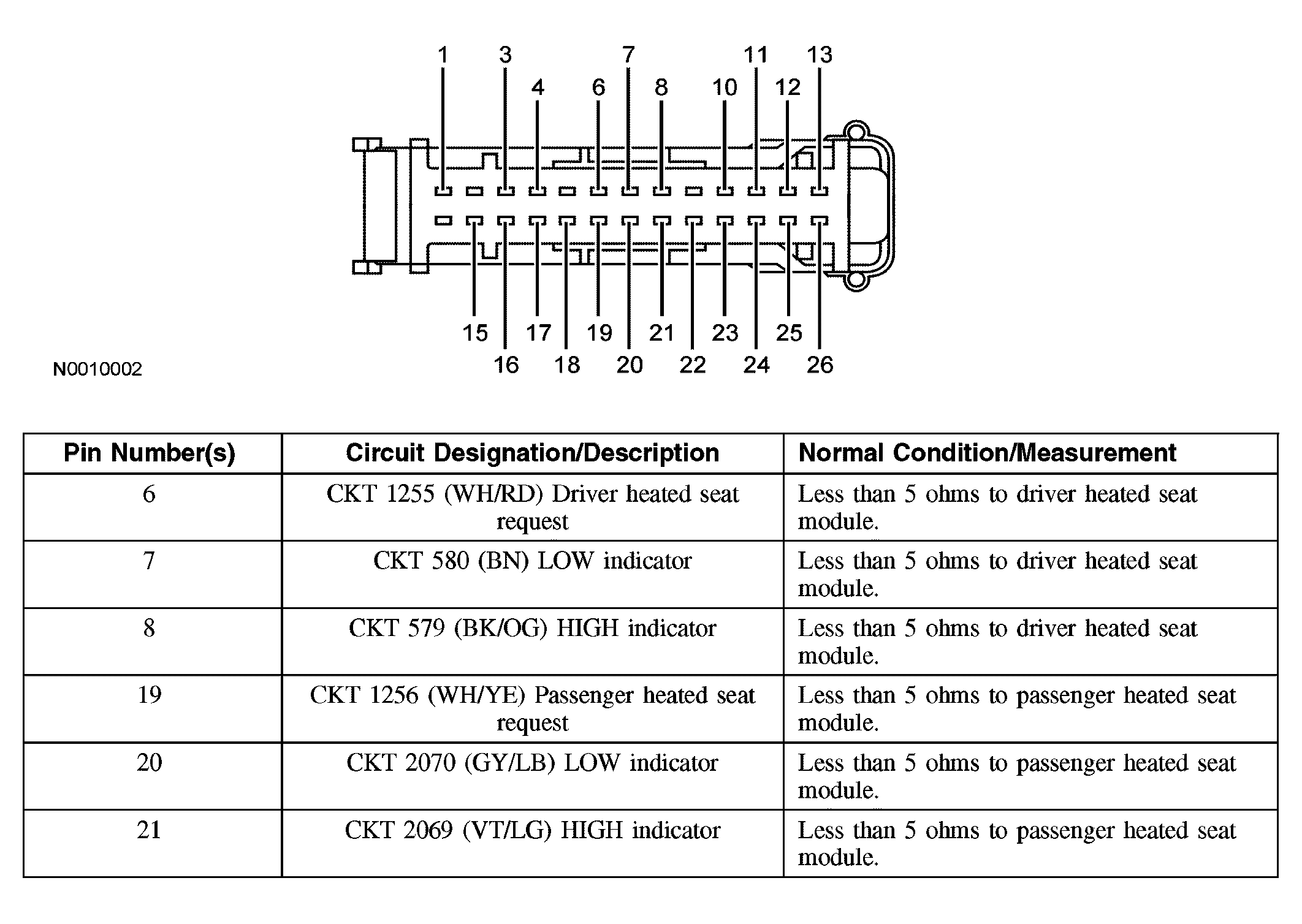

Fig 26: Identifying Electronic Automatic Temperature Control (EATC) Module C228B Connector Circuit
Courtesy of FORD MOTOR CO.
