Seat - Exploded View, Front

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

Front Seat Backrest

NOTE: Passenger seat shown, driver seat similar.

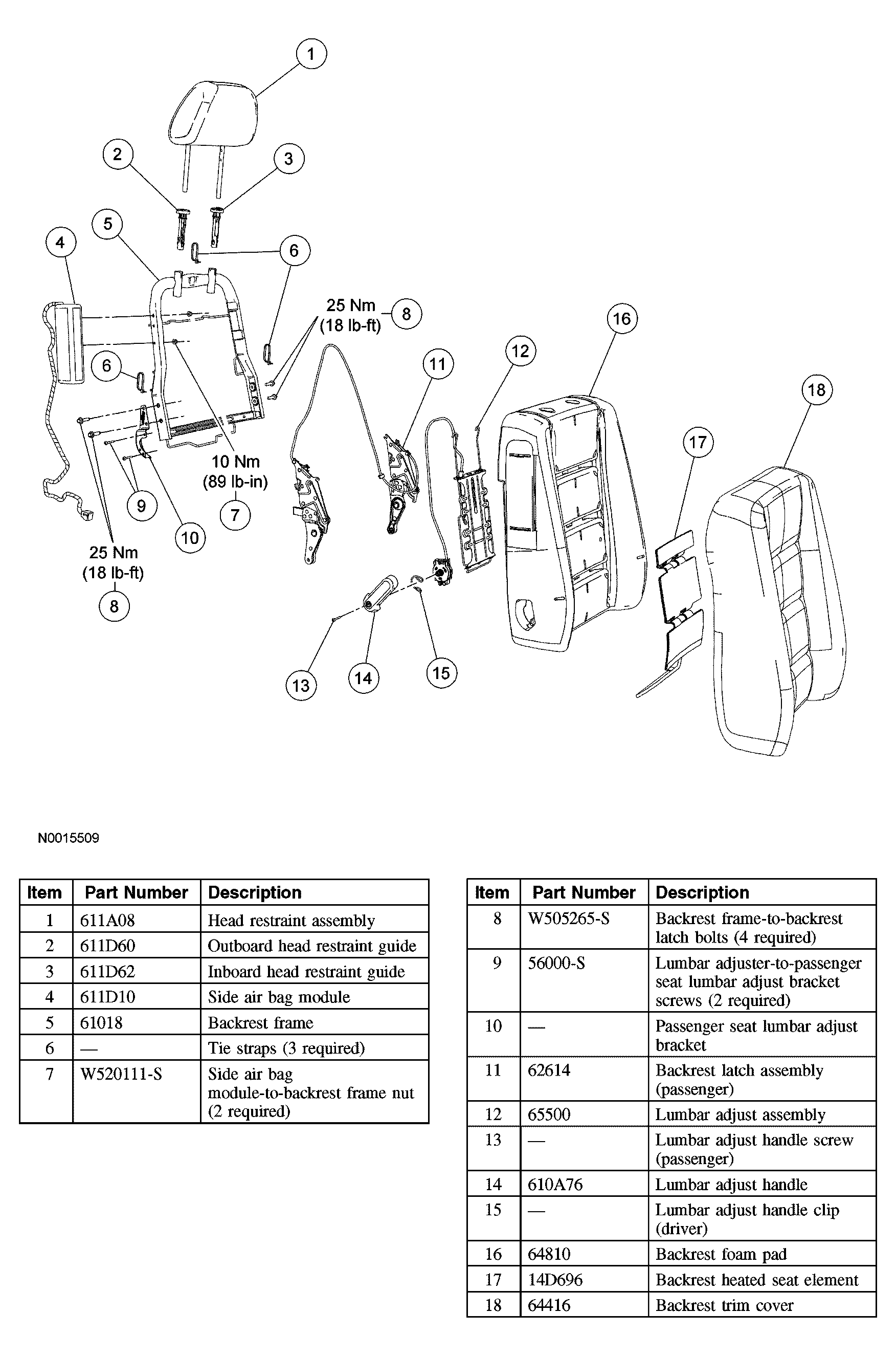

Fig 1: Identifying Passenger Seat Shown, Driver Seat Components Similar

Courtesy of FORD MOTOR CO.

Driver Front Seat Cushion

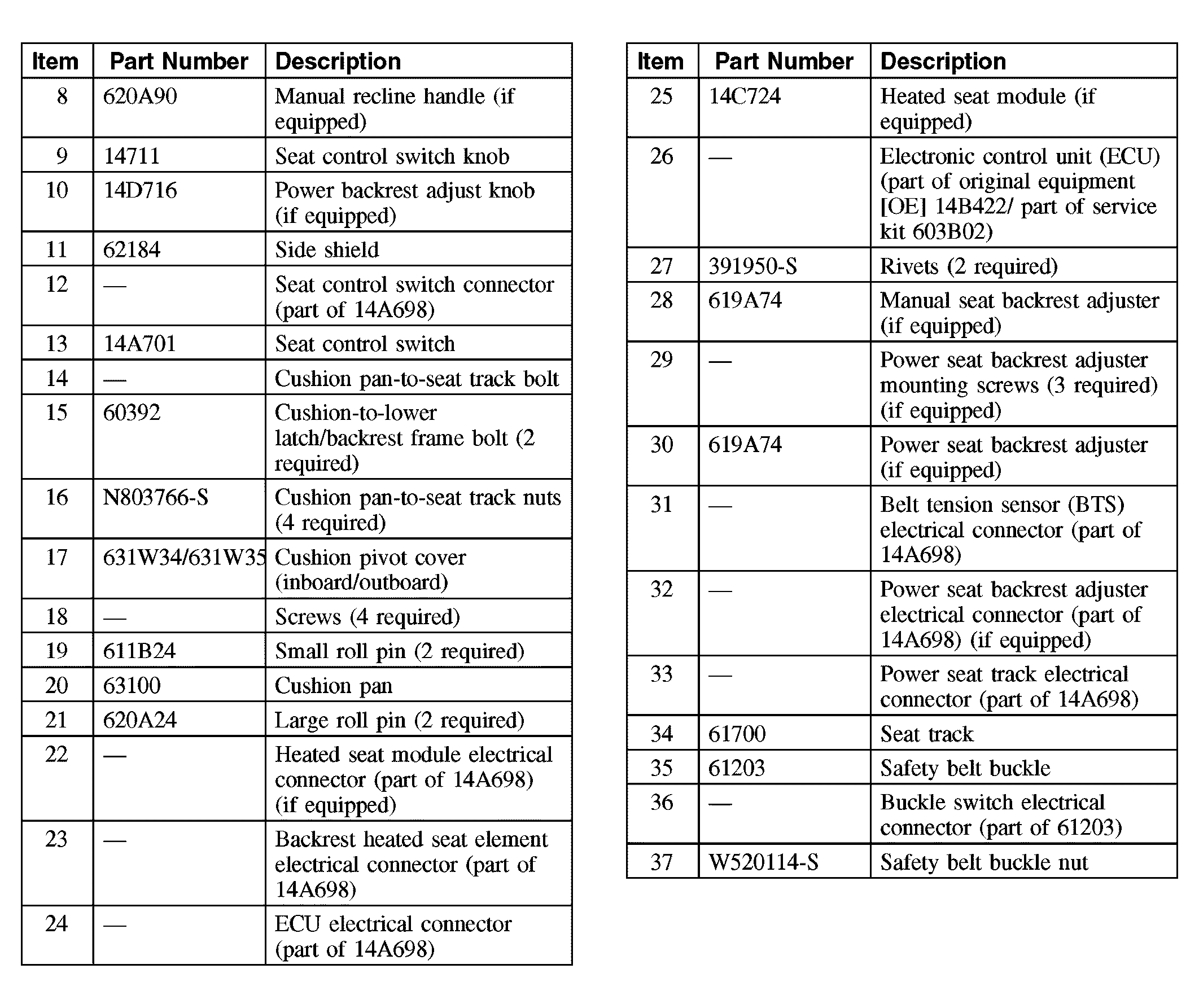

Fig 2: Identifying Driver Front Seat Cushion Components

Courtesy of FORD MOTOR CO.

Passenger Front Seat Cushion

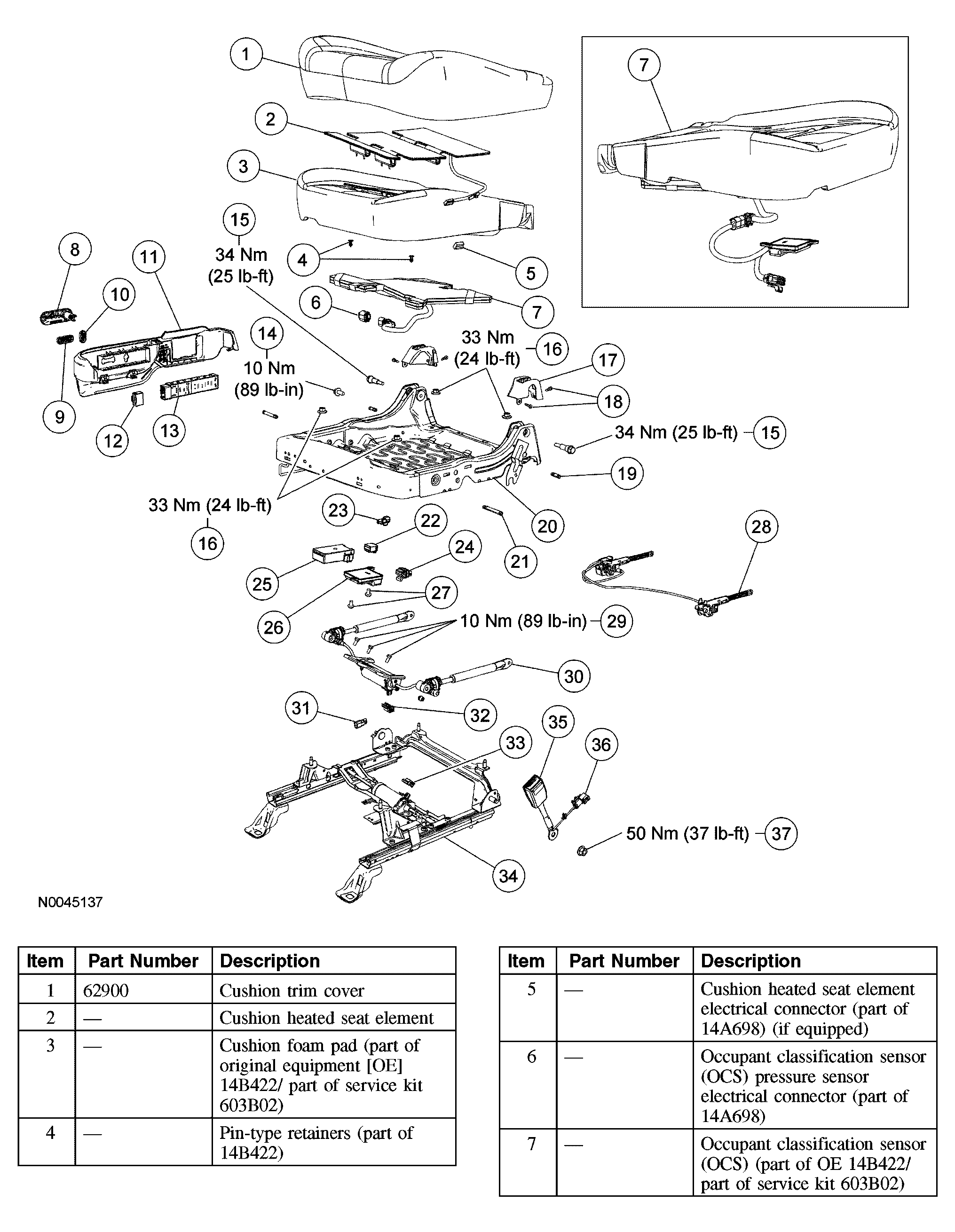

Fig 3: Identifying Passenger Front Seat Cushion Components (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Passenger Front Seat Cushion Components (2 Of 2)

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
