Seat - Exploded View, Third Row

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

50 Percent Backrest

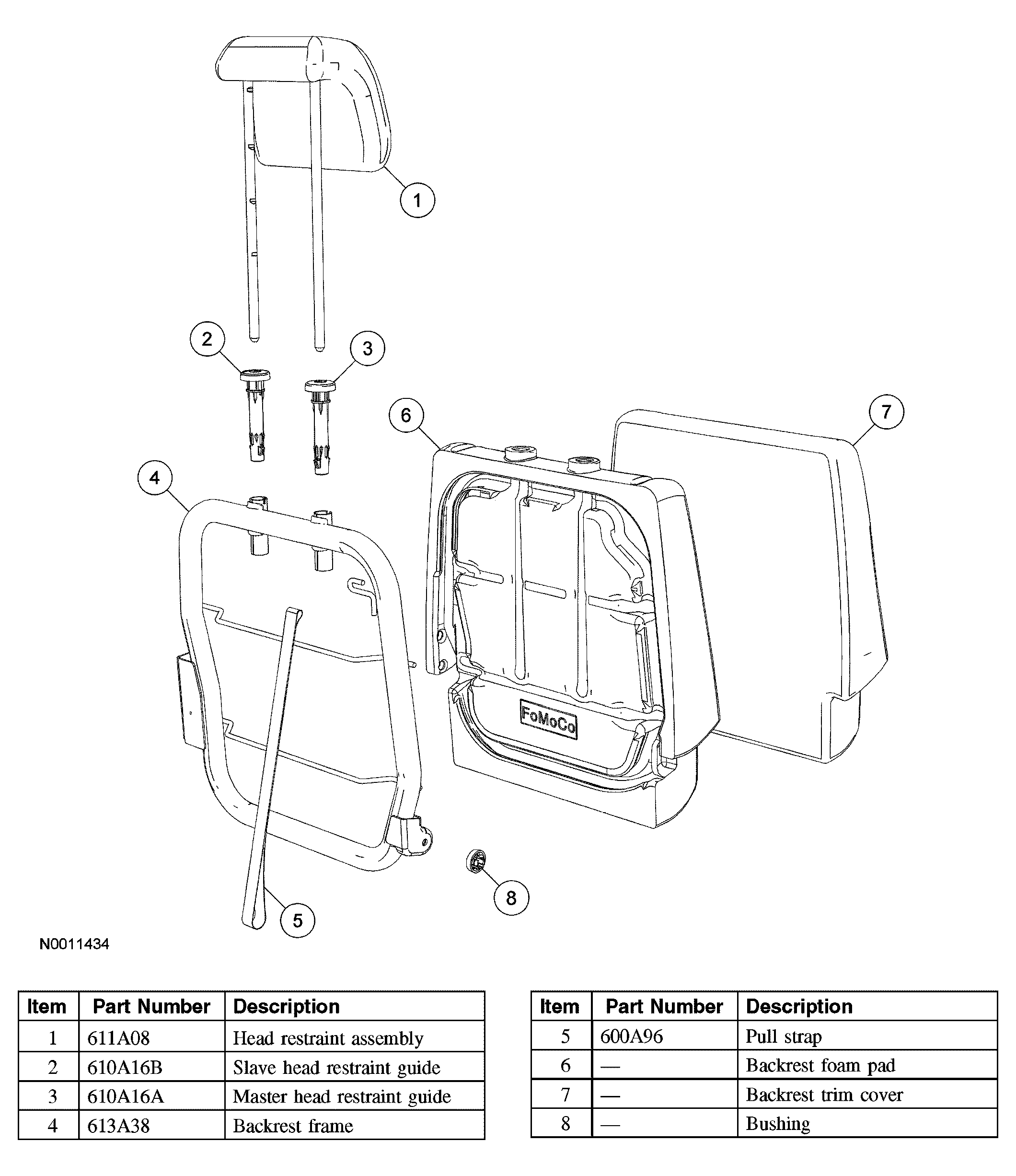

Fig 1: Removing/Installing 50 Percent Backrest

Courtesy of FORD MOTOR CO.

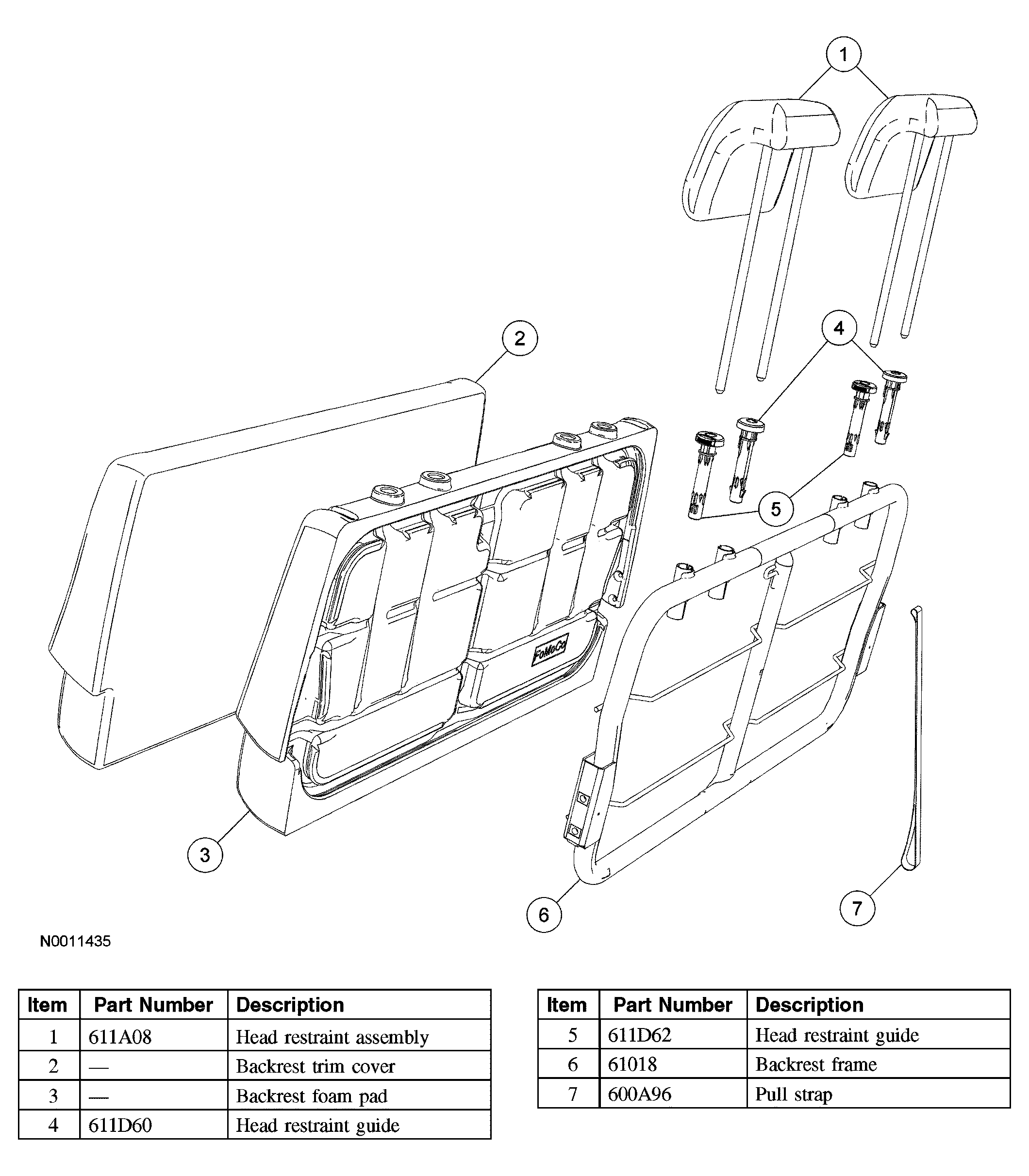

Fig 2: Removing/Installing Bench Seat Backrest

Courtesy of FORD MOTOR CO.

50 Percent Cushion

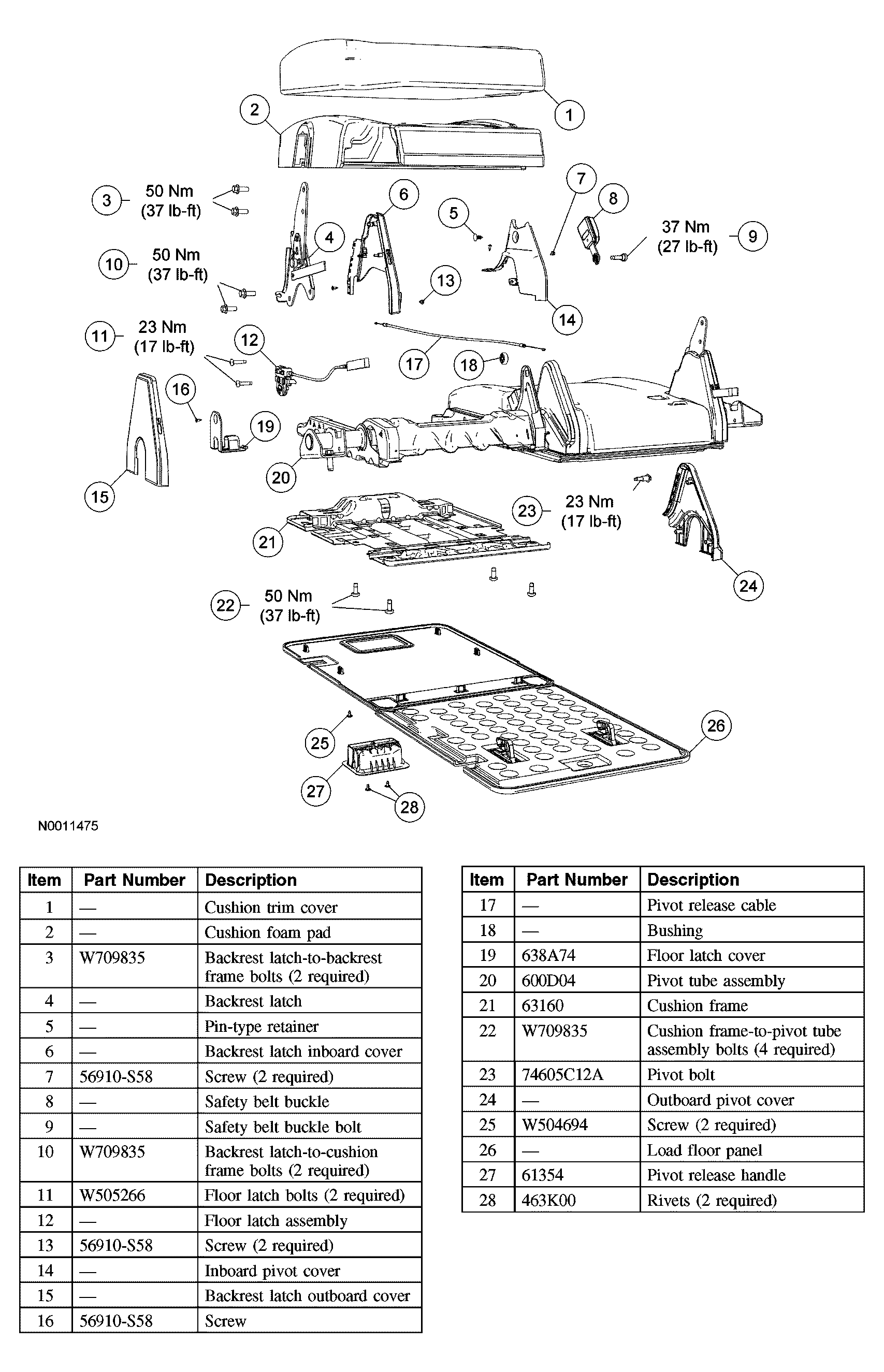

Fig 3: Removing/Installing 50 Percent Cushion

Courtesy of FORD MOTOR CO.

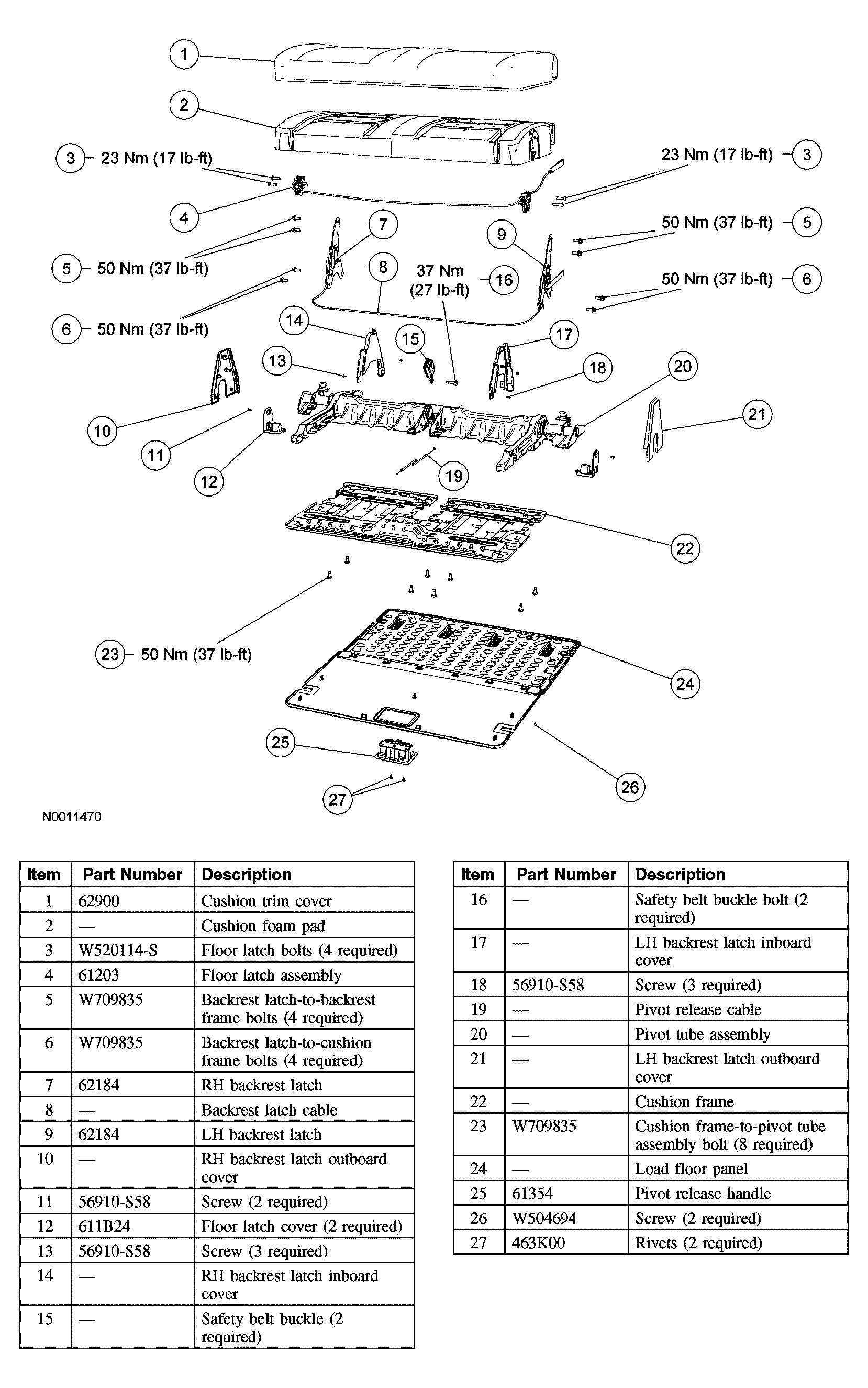

Fig 4: Removing/Installing Bench Seat Cushion

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
