Removal & Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove control panel assembly. See CONTROL PANEL ASSEMBLY . Gently pull and remove function selector switch knob. See Fig 1. Release 2 clips and remove switch. See Fig 2. To install, reverse removal procedure.

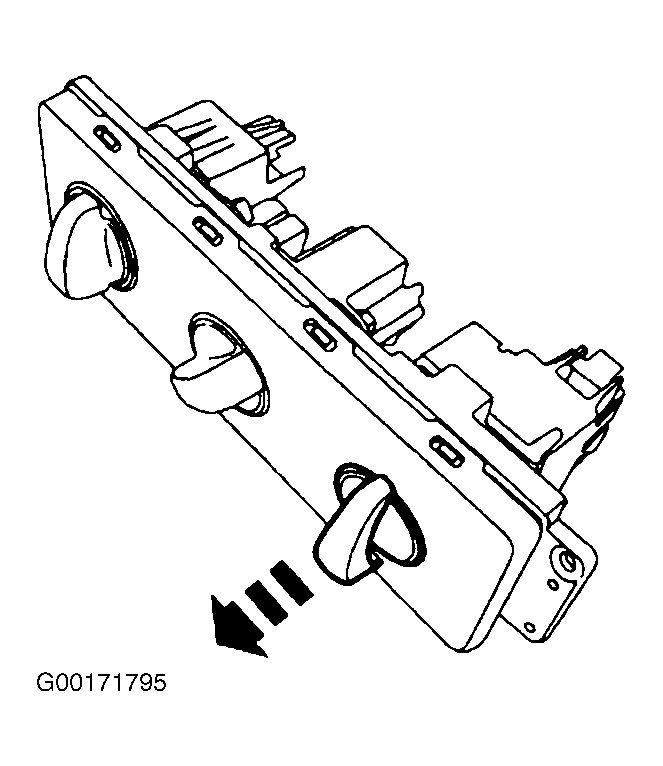

Fig 1: Removing Function Selector Switch Knob

Courtesy of FORD MOTOR CO.

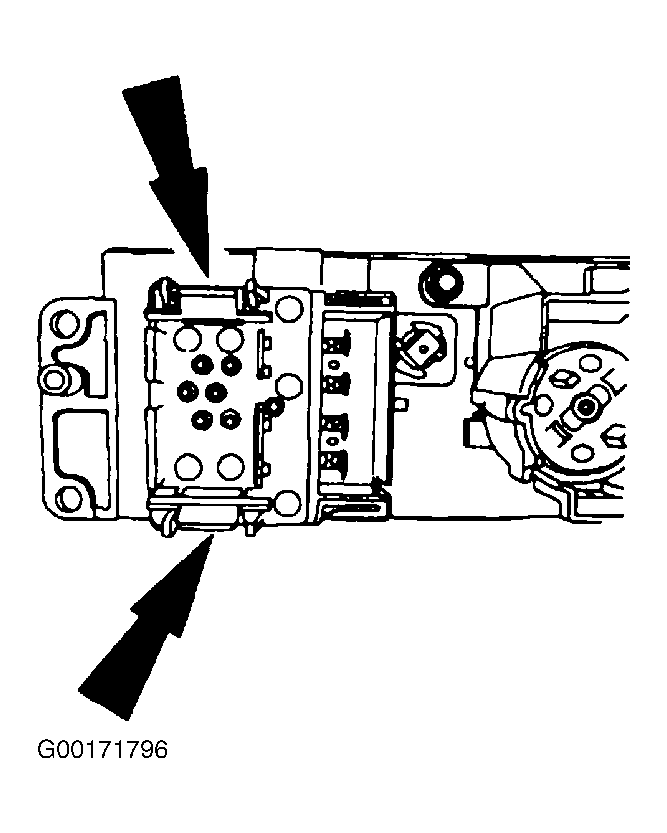

Fig 2: Identifying Function Selector Switch Clips

Courtesy of FORD MOTOR CO.
