Parking Aid Module: Notes

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

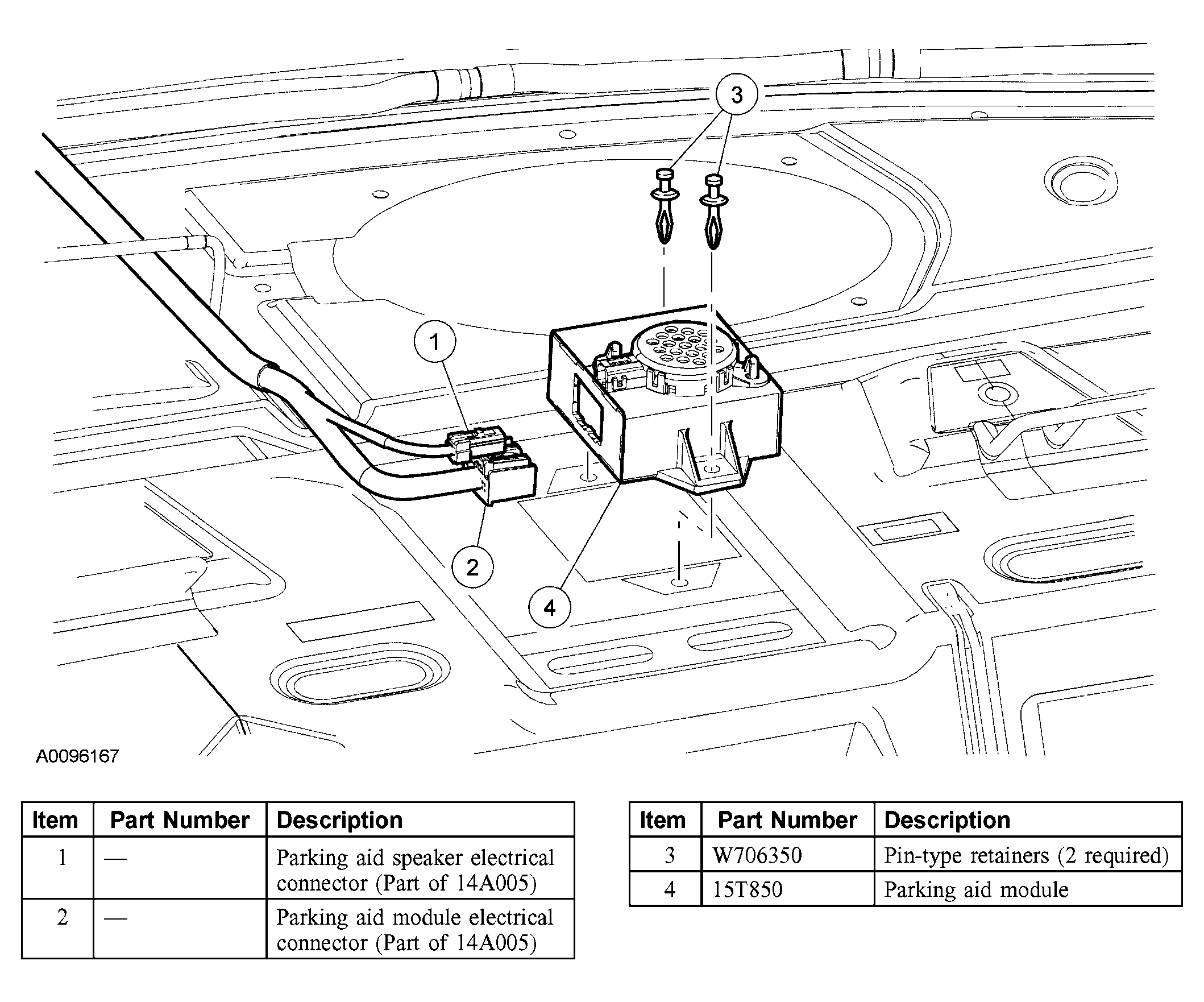

Fig 1: Removing/Installing Parking Aid Module (Sedan)
G03992653Courtesy of FORD MOTOR CO.

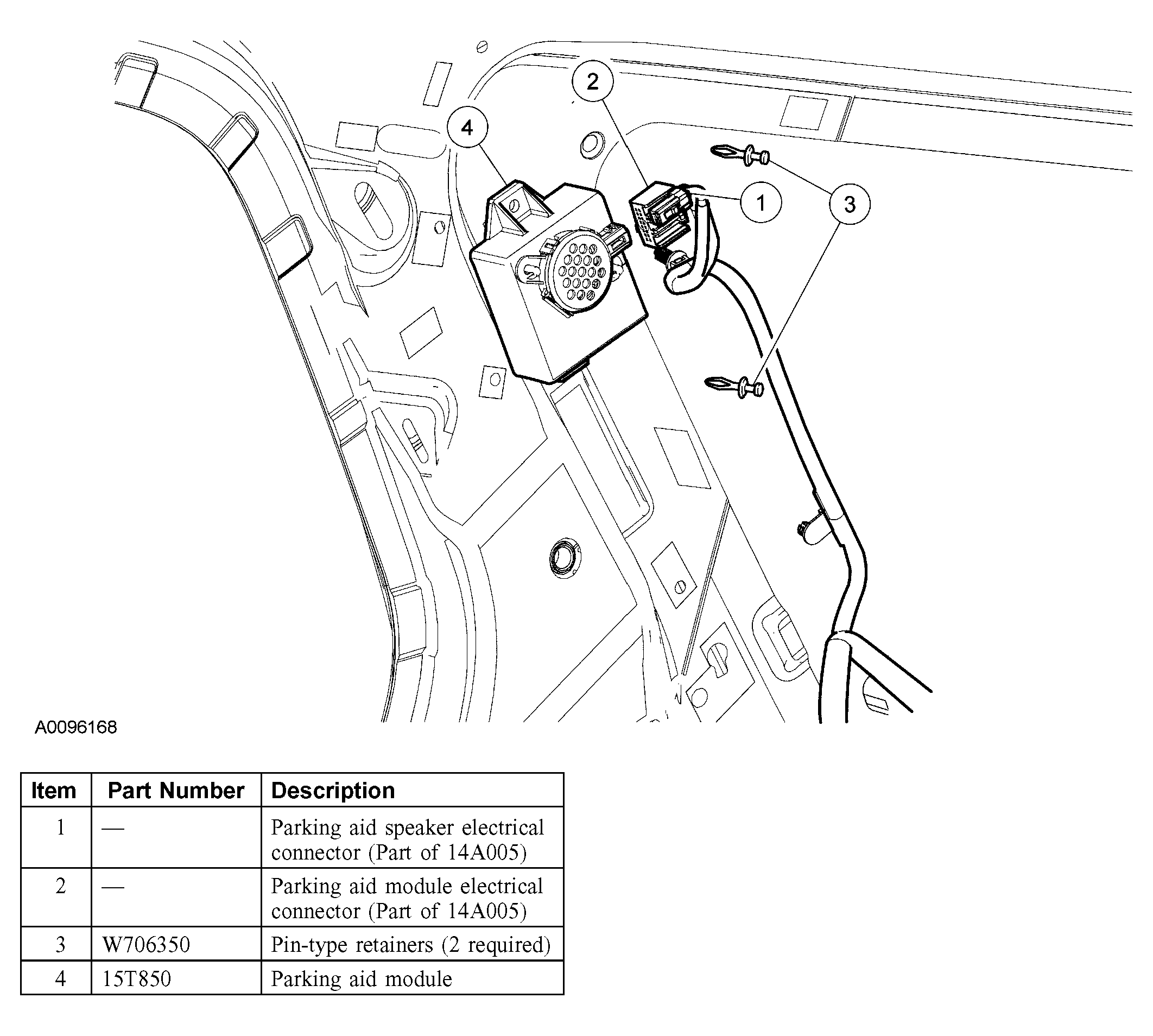

Fig 2: Removing/Installing Parking Aid Module (Wagon)
G03992654Courtesy of FORD MOTOR CO.
