Seat Track: Notes

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

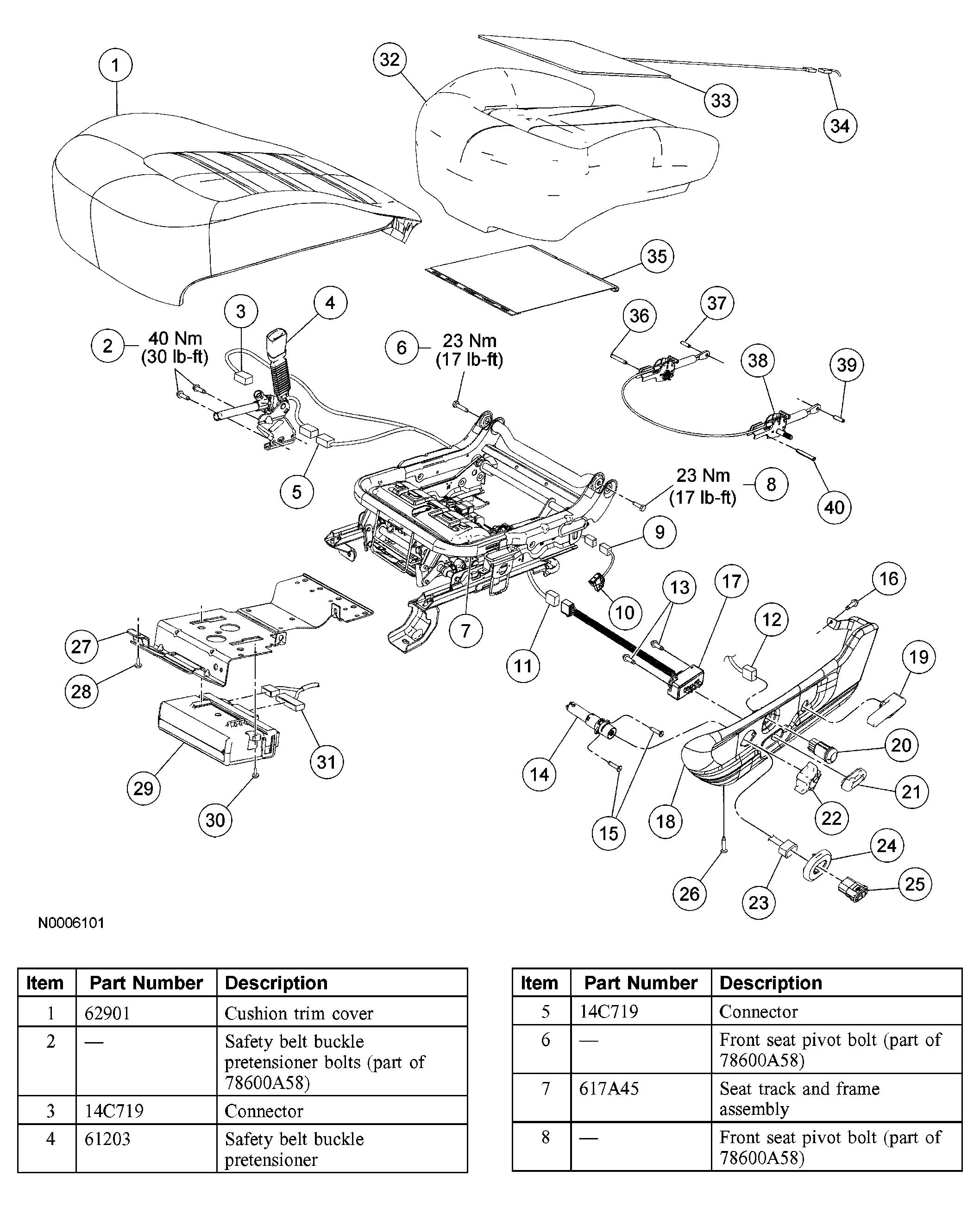

Fig 1: Identifying Seat Track Components (1 Of 2)

Courtesy of FORD MOTOR CO.

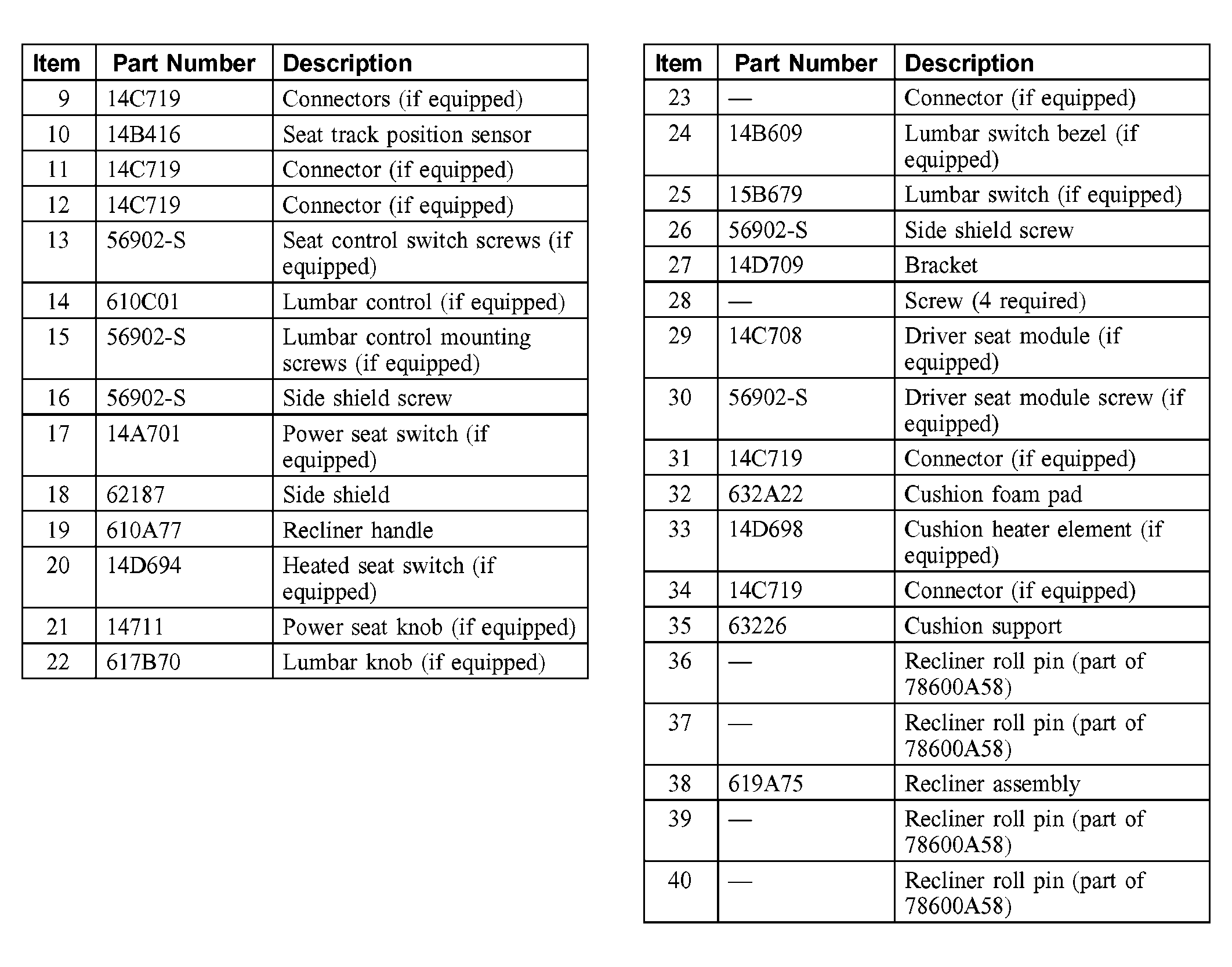

Fig 2: Identifying Seat Track Components (2 Of 2)

Courtesy of FORD MOTOR CO.
