Power Steering Pump: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
POWER STEERING PUMP SPECIAL TOOL

G03879006
 Installer Set, Teflon® Seal 211-D027 (D90P-3517-A) or equivalent

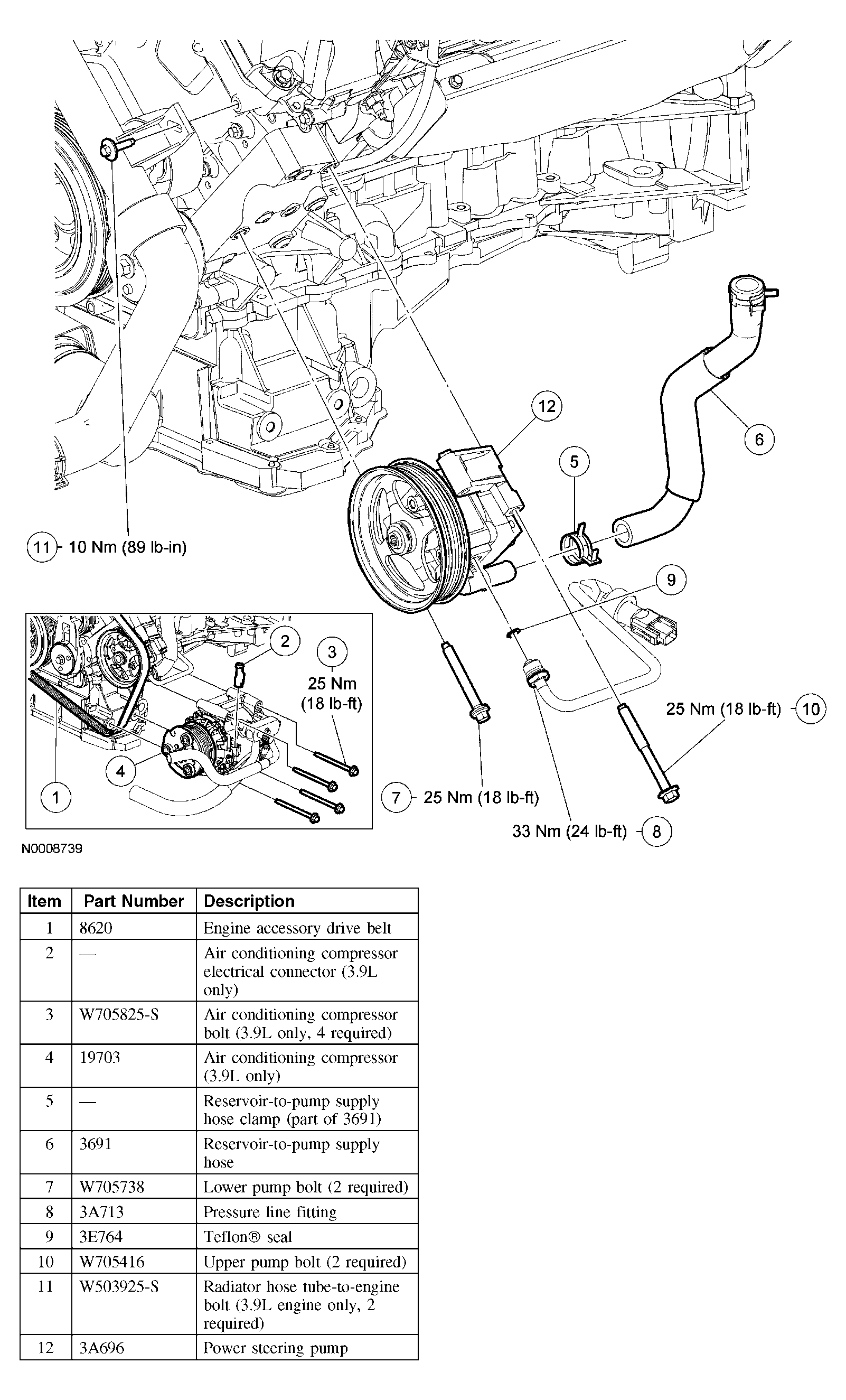

Fig 1: Identifying Power Steering Pump Components
G03995628Courtesy of FORD MOTOR CO.
