Direct Clutch Drum Assembly: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

DIRECT CLUTCH DRUM ASSEMBLY SPECIAL TOOLS

	Compressor, Clutch Spring 307-015 (T65L-77515-A)
	Protector, Piston Seal 307-049 (T74P-77404-A)

DIRECT CLUTCH DRUM ASSEMBLY MATERIAL SPECIFICATION

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

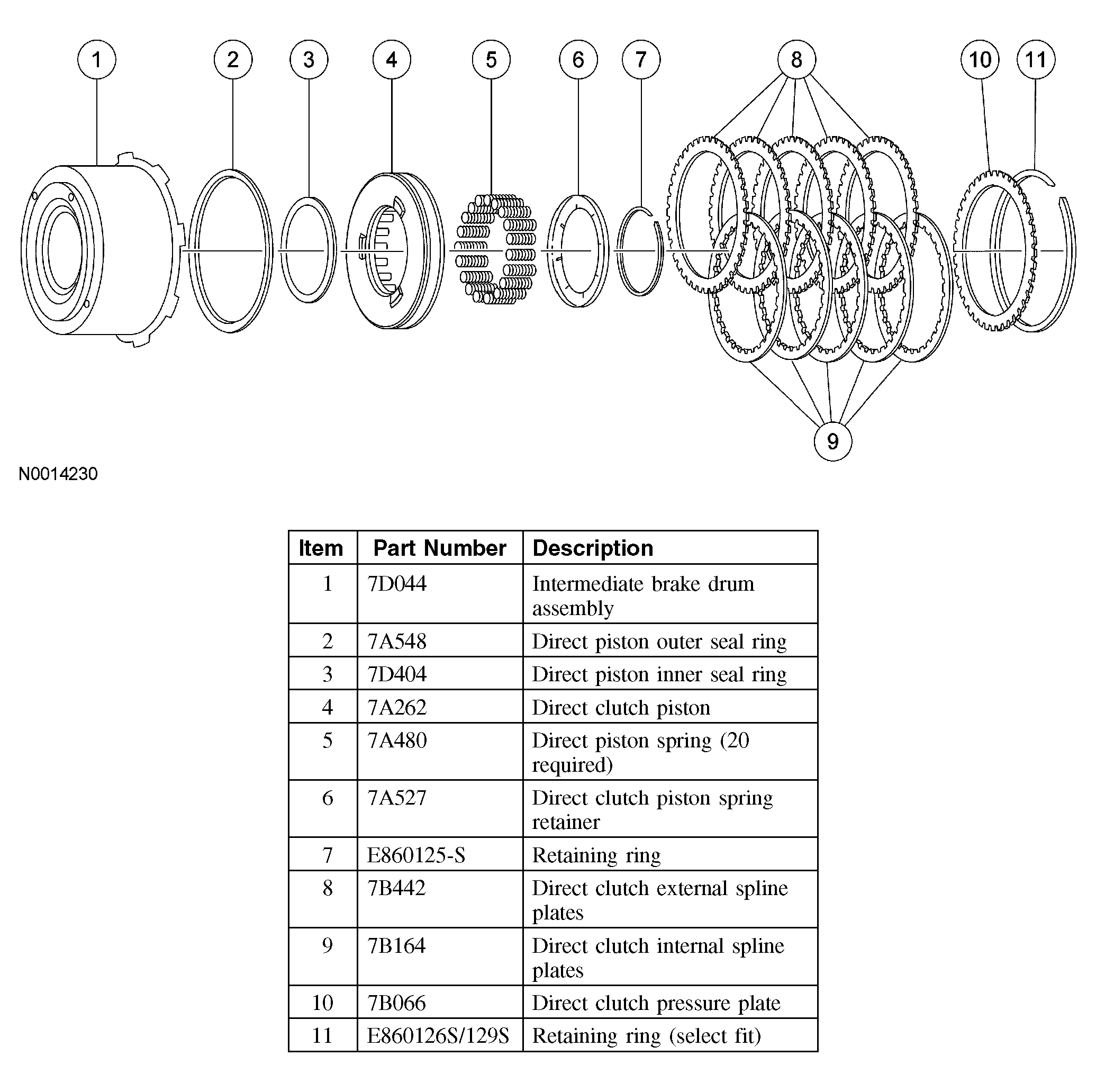

Fig 1: Identifying Components Direct Clutch Drum Assembly

Courtesy of FORD MOTOR CO.
