Solenoid Body Assembly: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

SOLENOID BODY ASSEMBLY MATERIAL SPECIFICATION

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

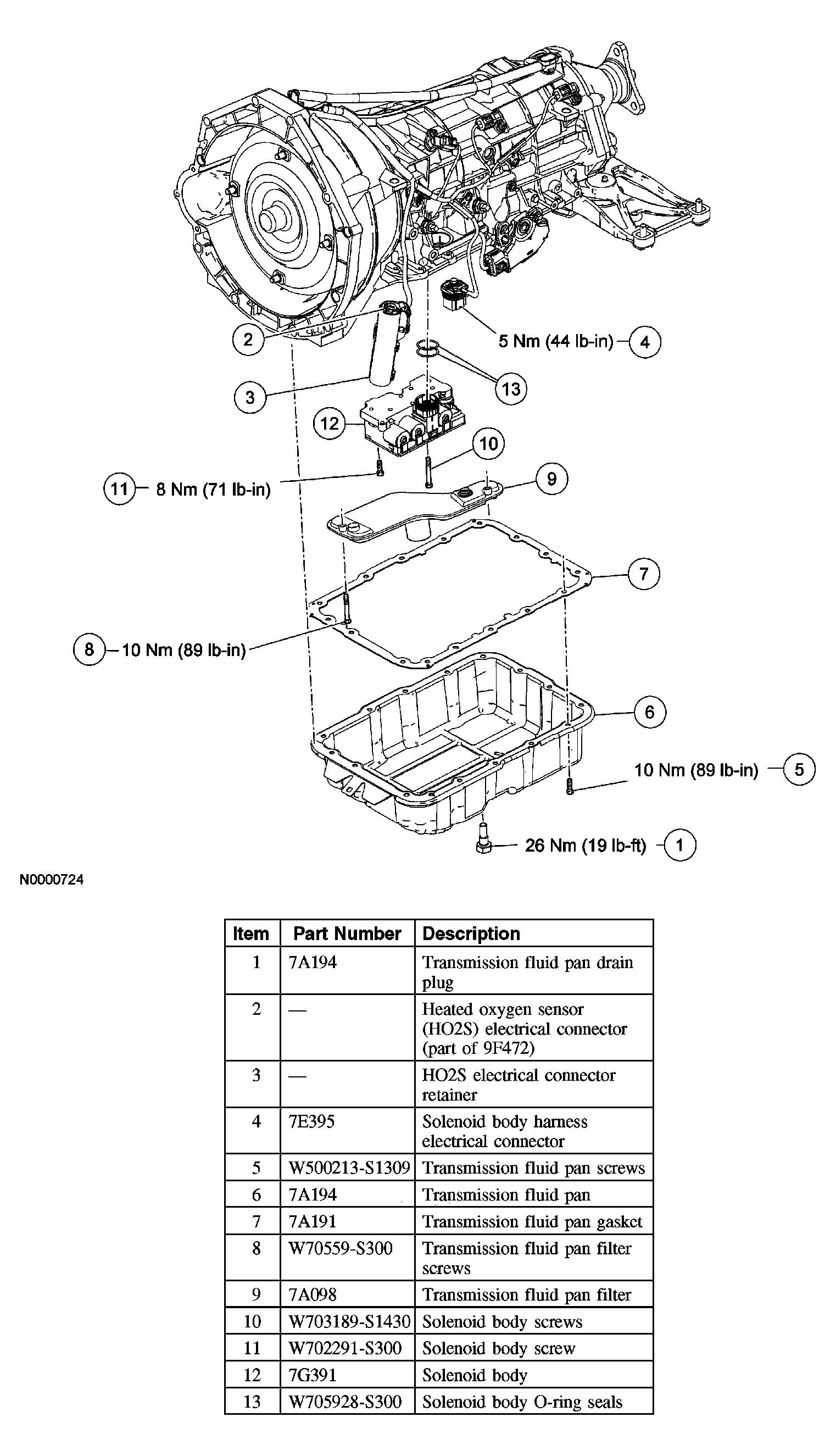

Fig 1: Identifying Components Solenoid Body Assembly

Courtesy of FORD MOTOR CO.
