Transmission Support Insulator: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

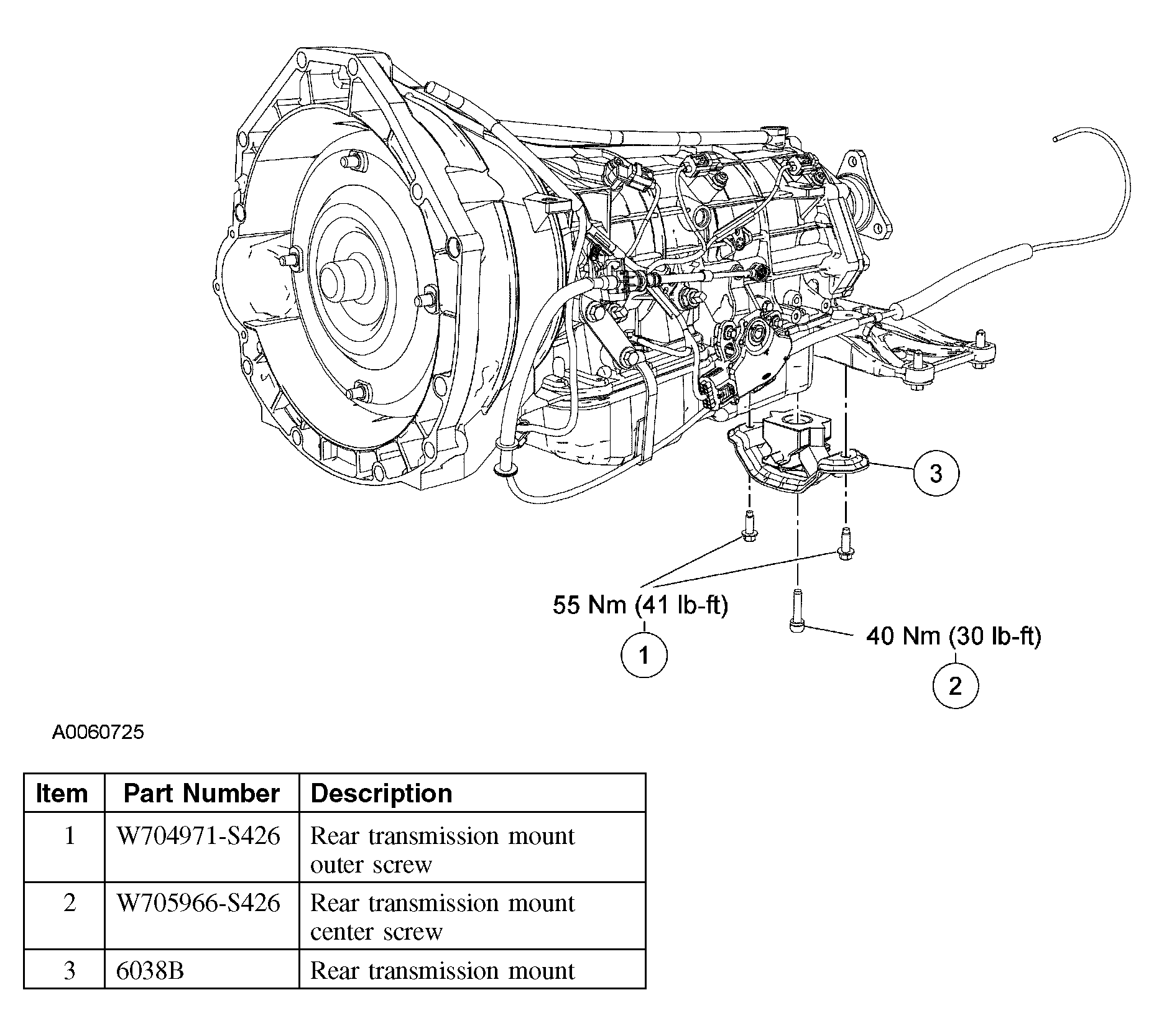

Fig 1: Identifying Components Transmission Support Insulator
G03997351Courtesy of FORD MOTOR CO.
