Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

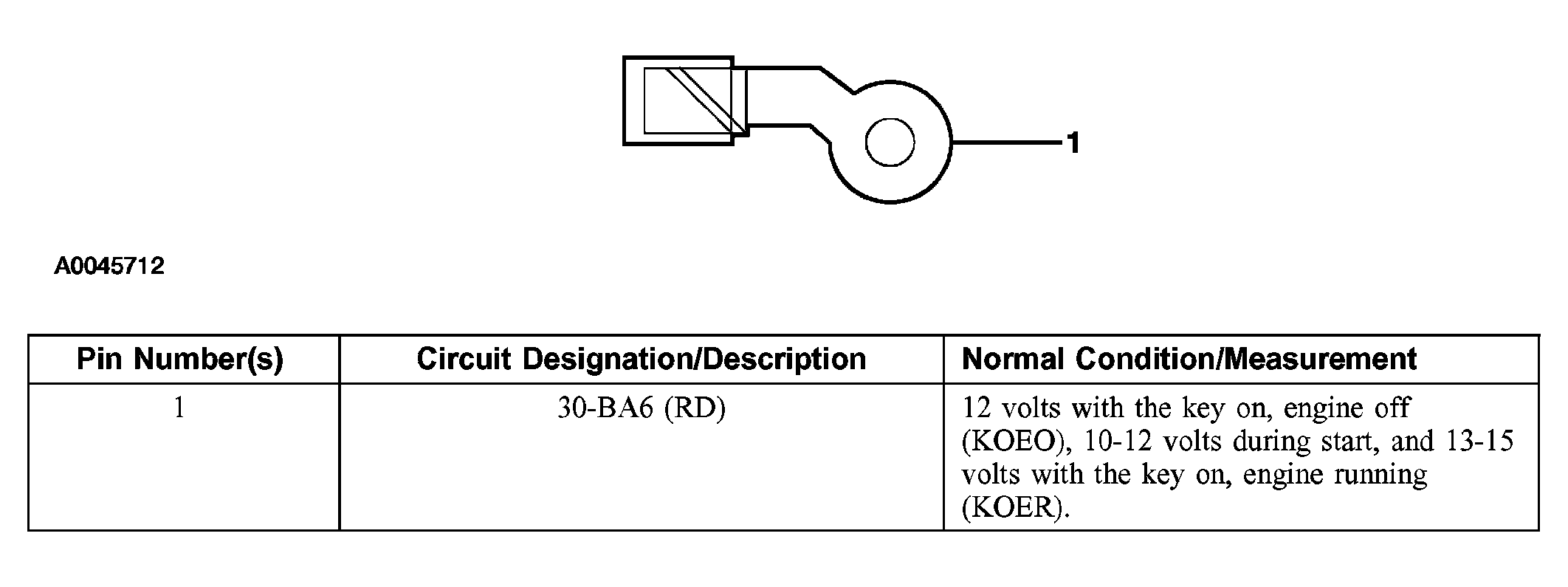

Fig 1: Connector Circuit Reference - [Generator C102a]

Courtesy of FORD MOTOR CO.

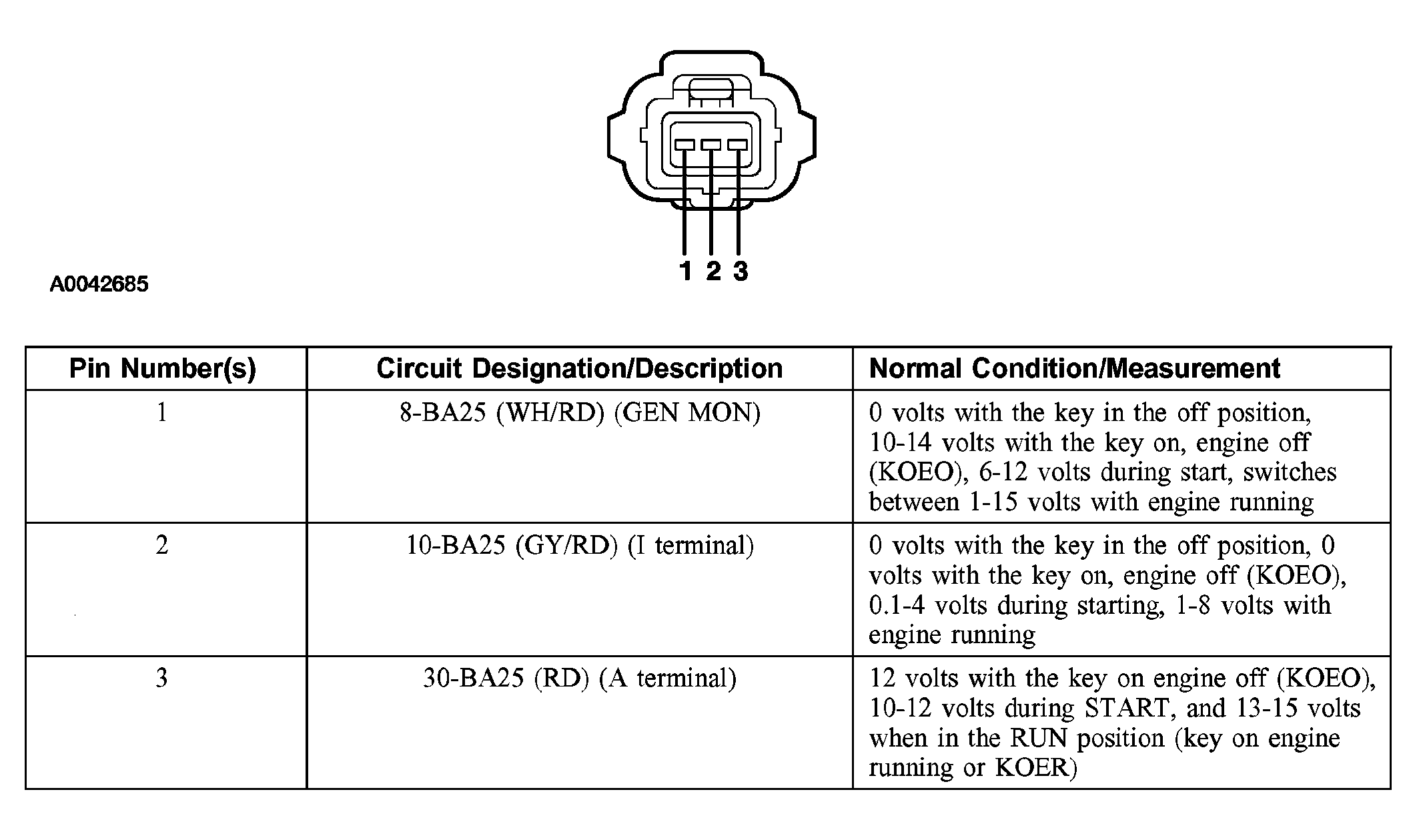

Fig 2: Connector Circuit Reference - [Generator C102b]

Courtesy of FORD MOTOR CO.

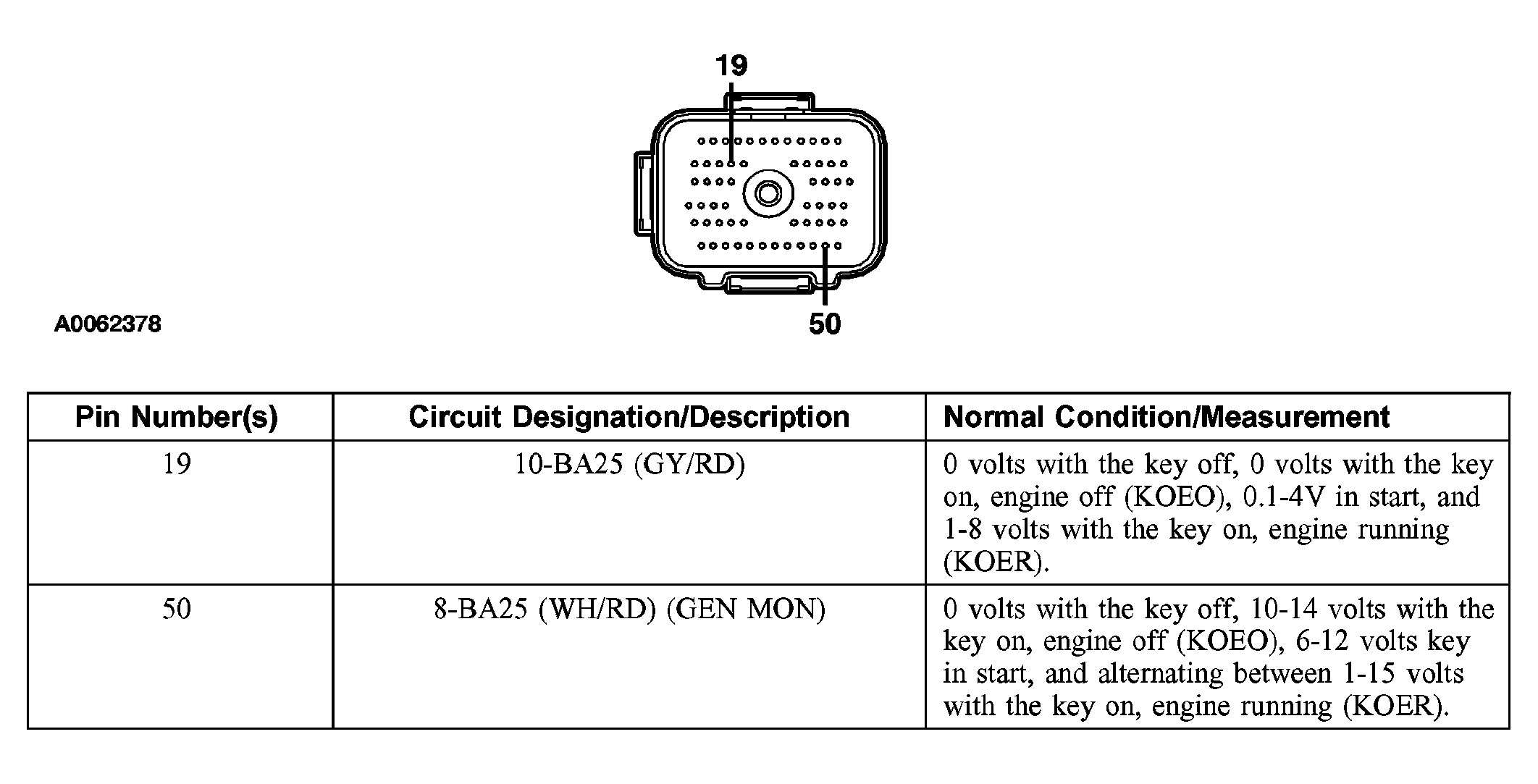

Fig 3: Connector Circuit Reference - [Powertrain Control Module C175c]

Courtesy of FORD MOTOR CO.
