Steering System: Notes
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
For the Crown Victoria refer to ELECTRONIC POWER STEERING for schematic and connector information.
For the Grand Marquis refer to ELECTRONIC POWER STEERING for schematic and connector information.
SPECIAL TOOL(S)

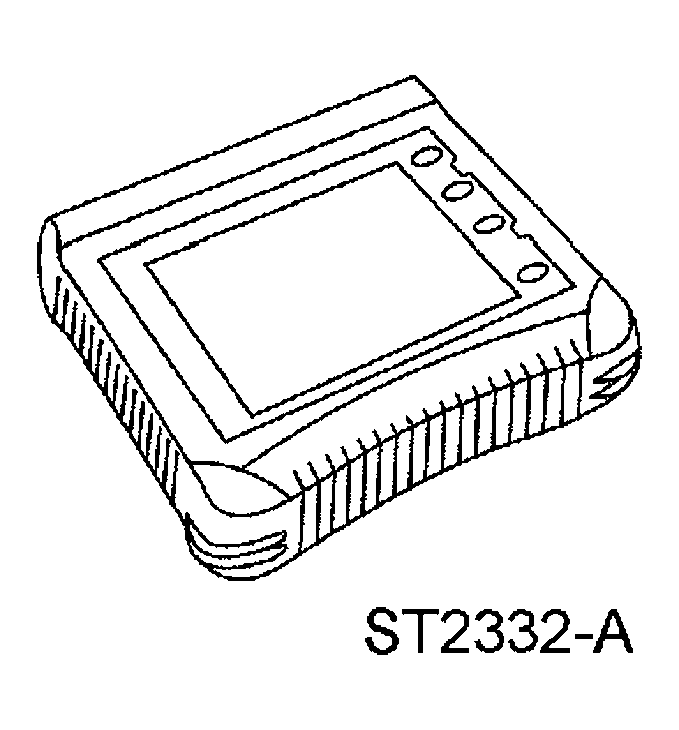

| Worldwide Diagnostic System (WDS) Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool |
|

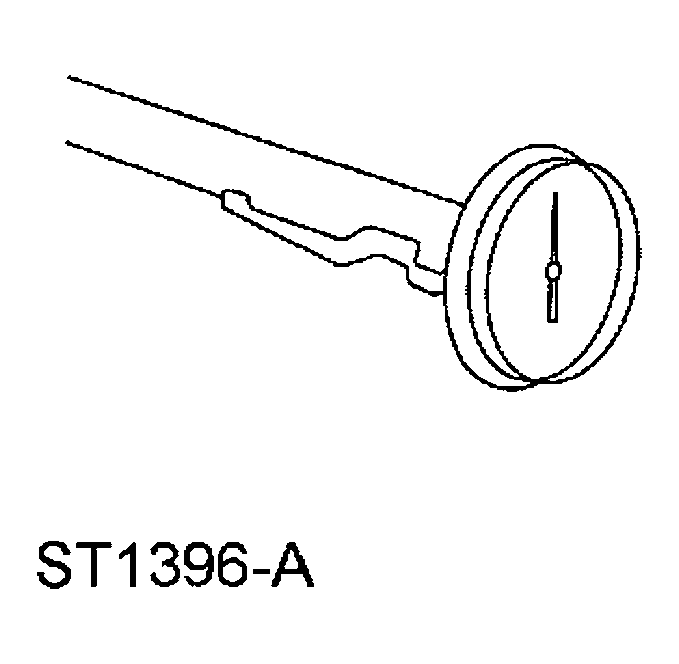

| Dial Thermometer 32°C-104°C (0-220°F) 023-R0007 or equivalent |
|

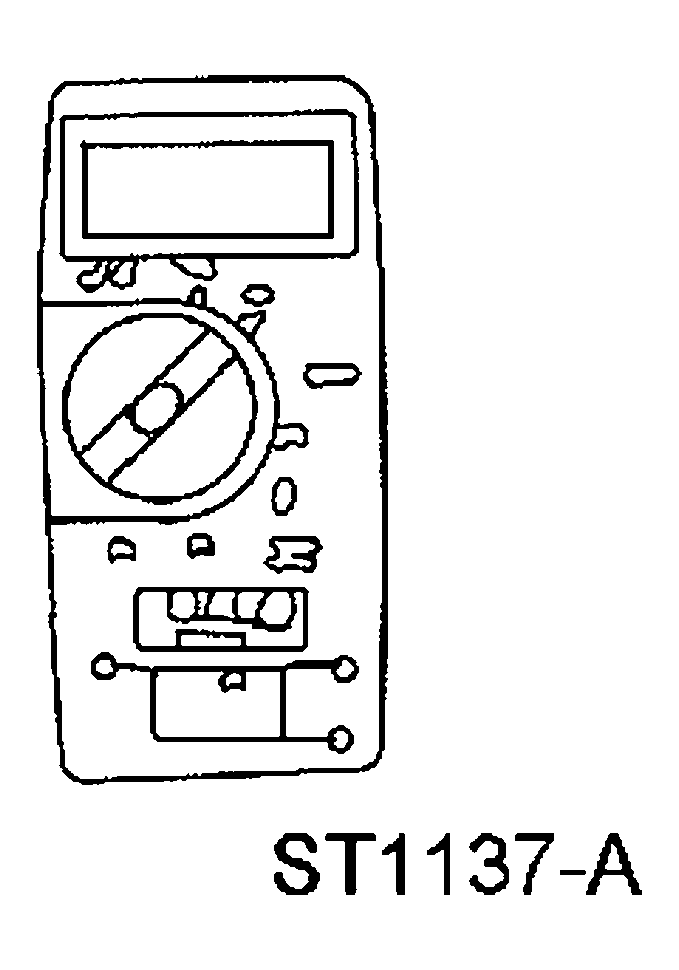

| 73III Automotive Meter 105-R0057 or equivalent |
|

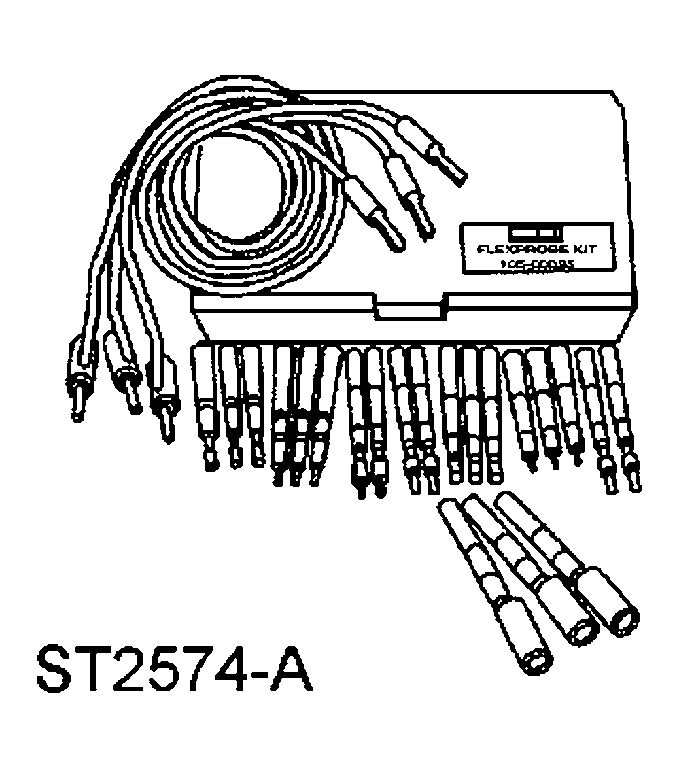

| Flex Probe Kit 105-R025B |
|

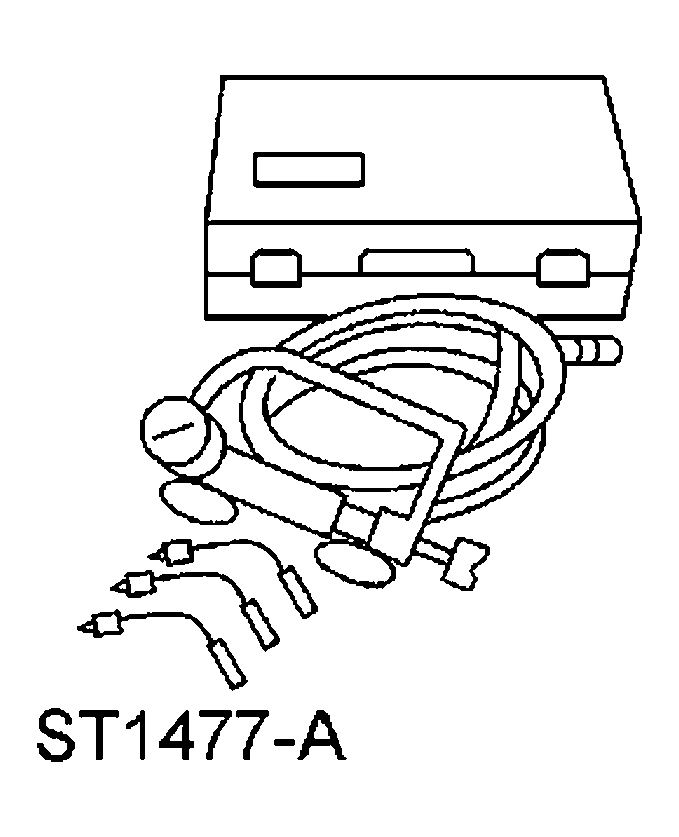

| Power Steering Analyzer 211-F001 (014-00207) or equivalent |
|

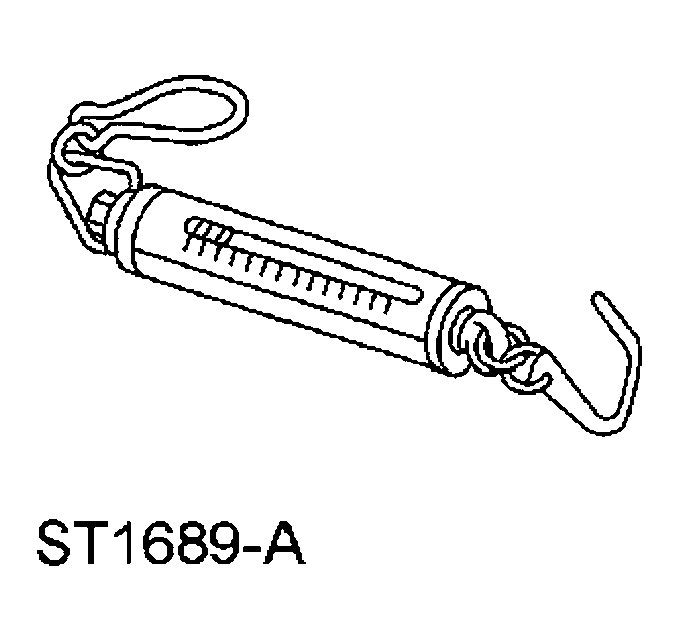

| Gauge, Spring Tension 211-034 (T74P-3504-Y) |
|

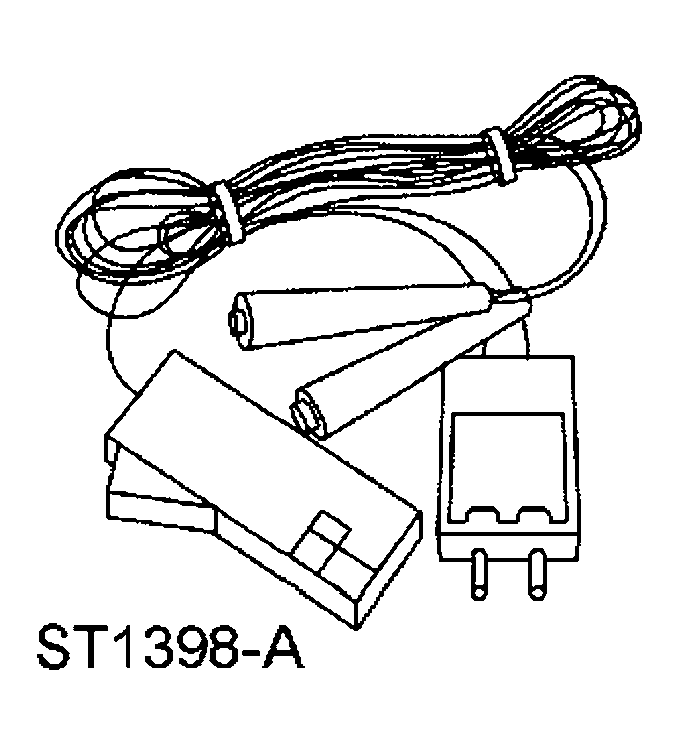

| DIS/EDIS Tach Adapter 211-105 (T85M-3395-A) |
|

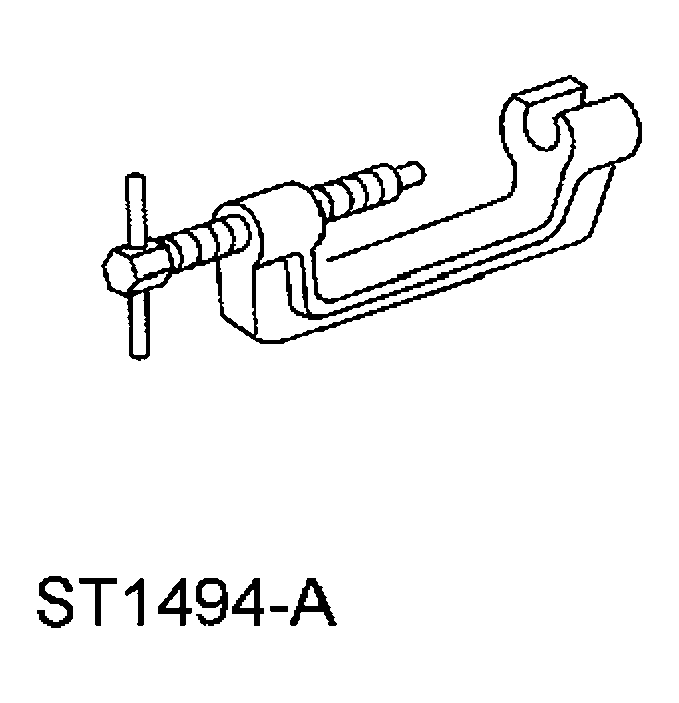

| Remover/Installer C-Frame and Screw 211-023 (T74P-3044-A1) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose ATF Transmission Fluid XT-2-QDX | MERCON® |
