Test D: Memory Mirror Inoperative Using Remote Transmitter

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

Adjust driver's side seat to a new position and store for MEM1. Adjust driver's side seat to a different position. Press UNLOCK button on remote transmitter. If driver's side seat moves to position No. 1, go to next step. If driver's seat does not move to position No. 1, repair power seats as necessary. See POWER SEATS - BLACKWOOD article.

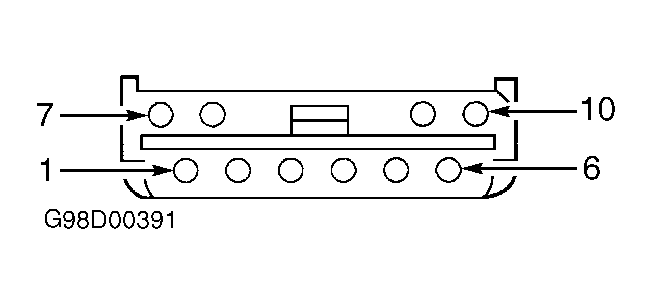

Disconnect Central Security Module (CSM) harness connector C274b. CSM is located behind left side of instrument panel. Disconnect memory set switch 10-pin harness connector C503. Measure resistance in Brown/Light Green wire between memory set switch harness connector C503 terminal No. 4 and CSM harness connector C274b terminal No. 6. See Figure and Figure . Measure resistance of Black/Orange wire between memory set switch harness connector C503 terminal No. 3 and CSM harness connector C274b terminal No. 16. If both resistances are 5 ohms or less, repair power door lock system. See POWER DOOR LOCKS - BLACKWOOD article. If either resistance is more than 5 ohms, repair open in appropriate wire between memory set switch and CSM. See WIRING DIAGRAMS .
