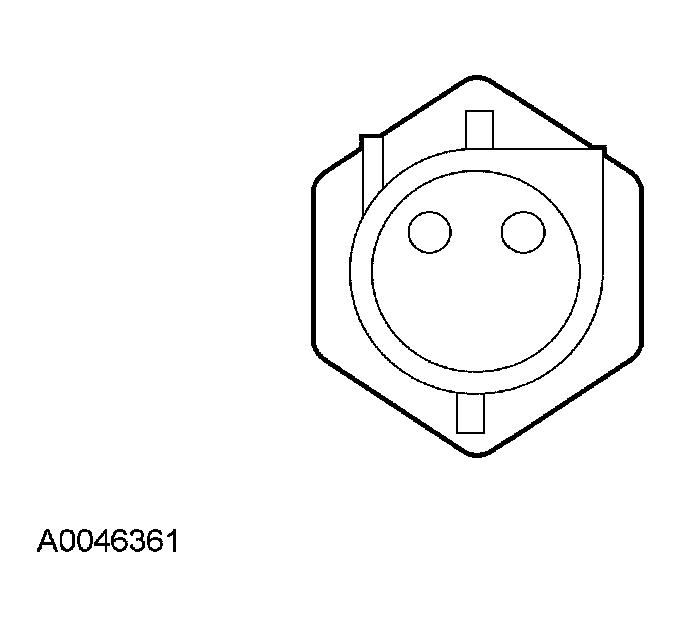

Temperature Sensor - Ambient
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. AMBIENT TEMPERATURE SENSOR RESISTANCE SPECIFICATION
| Ambient Temperature |
Resistance |
| 10-20°C (50-68°F) |
37,000-58,000 ohms |
| 20-30°C (68-86°F) |
24,000-37,000 ohms |
| 30-40°C (86-104°F) |
16,000-24,000 ohms |
