Heated Seat Module: Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Install the heated seat module in the mounting bracket. Verify that the locking tab is correctly seated.

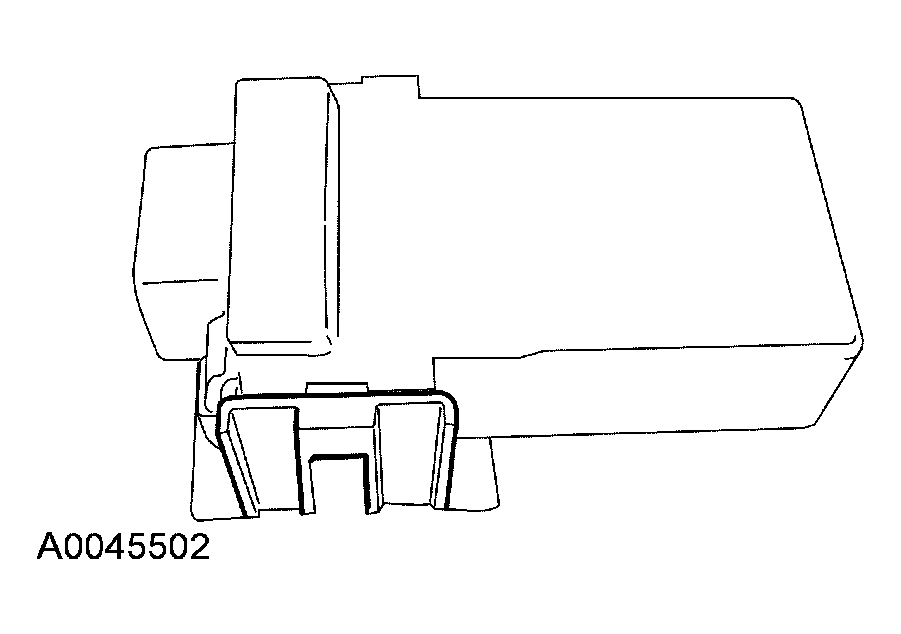

Fig 1: Installing Heated Seat Module In Mounting Bracket
Courtesy of FORD MOTOR CO.
Connect the heated seat module electrical connector.

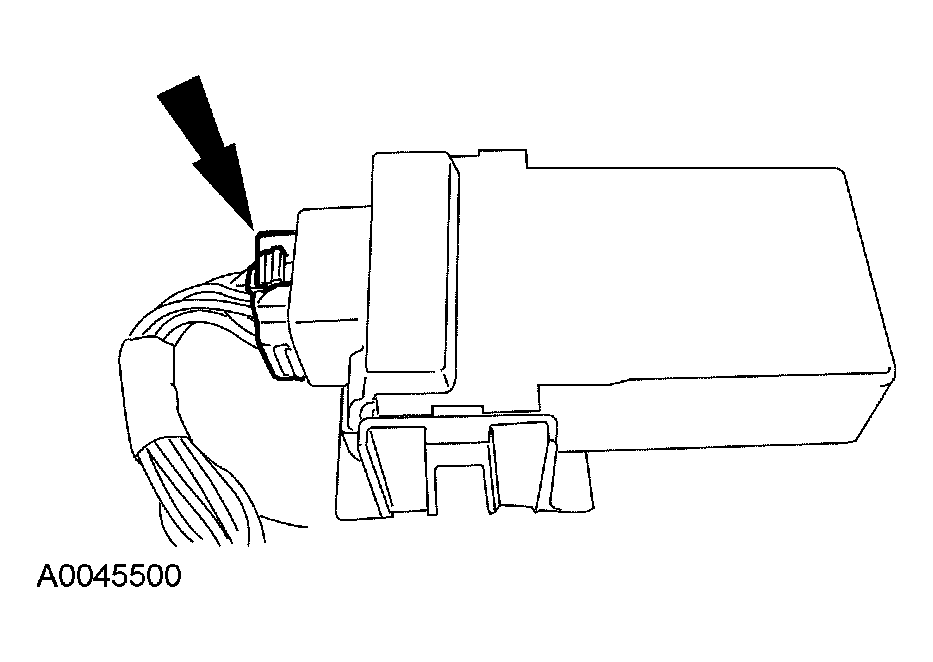

Fig 2: Connecting Heated Seat Module Electrical Connector
Courtesy of FORD MOTOR CO.
Install the affected seat. For additional information, refer to SEAT - FRONT .
Repower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in the General Procedures.
