Side Impact Sensor: Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The tightening torque of the air bag side impact sensor retaining bolts is critical for correct system operation.

NOTE: The side impact sensor bolts must be installed in the sequence shown.

Install the side impact sensor with bracket.
1. Position the side impact sensor with bracket.
2. Install the bolt.
  - Tighten to 12 Nm (9 lb-ft).
3. Install the bolt.
  - Tighten to 12 Nm (9 lb-ft).
4. Connect the electrical connector.

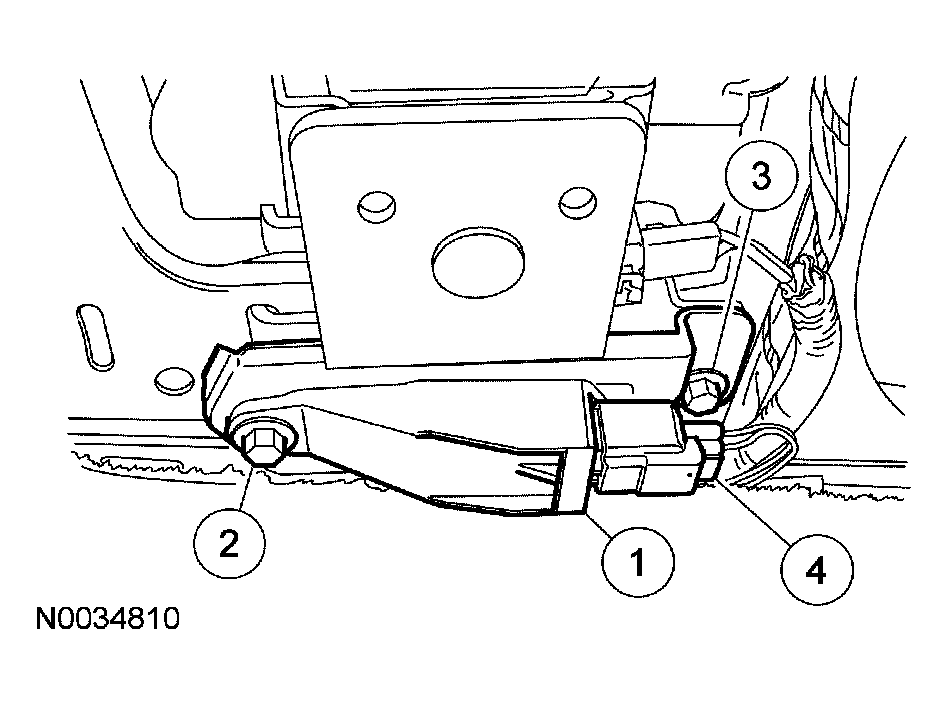

  Fig 1: Connecting Electrical Connector
  Courtesy of FORD MOTOR CO.
Align the lower B-pillar lower trim panel and push in, seating the retaining clips.
Attach the front and rear door B-pillar weatherstripping.
Install the rear door scuff plate.
Install the front door scuff plate.
Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in the General Procedures portion of this article.
