Window Adjust Switch, Passenger Side: Schematic

WARNING: This page is about a different car, the 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

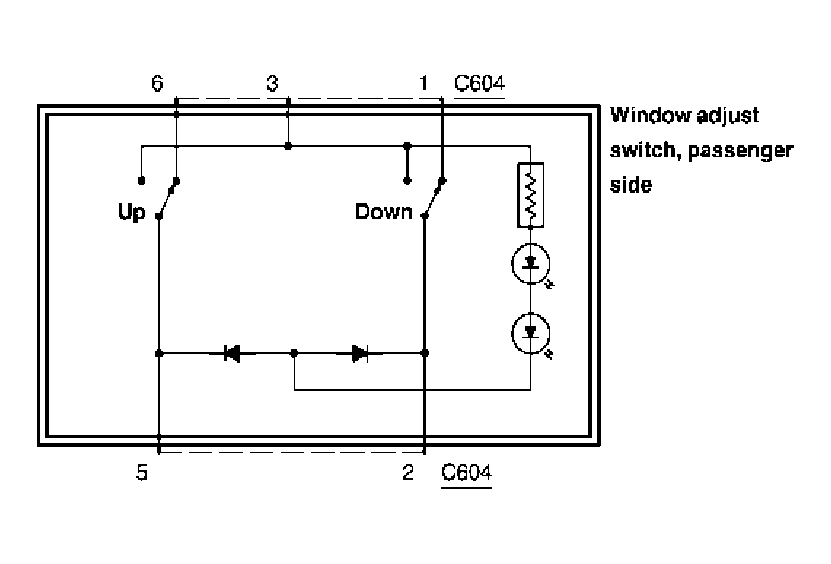

Fig 1: Window Adjust Switch, Passenger Side - Schematic Diagram
G04596048Courtesy of FORD MOTOR CO.
