Windshield Glass: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) SPECIFICATIONS

G04622341Courtesy of FORD MOTOR CO.
Interior Auto Glass Cut-Out Knife Kit
164-R2450 or equivalent
G04622342Courtesy of FORD MOTOR CO.
Pneumatic Knife with Offset Blade
107-R1511 or equivalent
G04622343Courtesy of FORD MOTOR CO.
The Pumper
164-R2459 or equivalent
MATERIAL SPECIFICATIONS

Item Specification
DOW AUTOMOTIVE 2-HOUR CURE
Dow Urethane Adhesive Betaseal® Express -
Dow Urethane One Step Glass Primer Betaprime® 5500/5500 A/5500SA -
SIKA 2-HOUR CURE
Sika Urethane Adhesive Sika Tack ASAP -
Sika Urethane Metal and Glass Primer Sika 206 G+P -
Ultra-Clear Spray Glass Cleaner ZC-23 ESR-M14P5-A

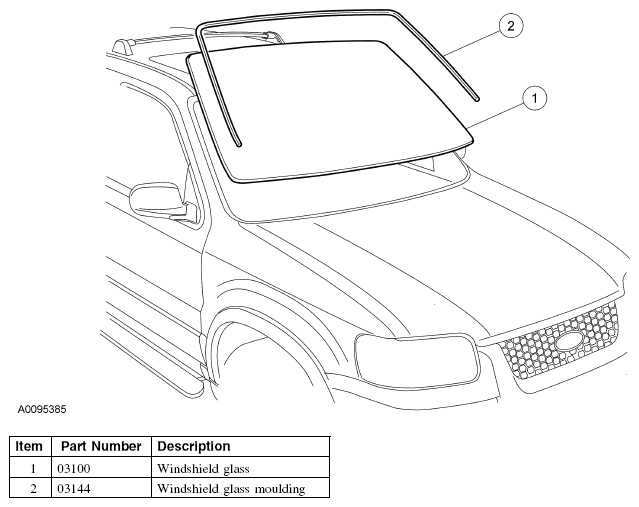

Fig 1: Locating Windshield Glass And Windshield Glass Moulding
G04622344Courtesy of FORD MOTOR CO.
